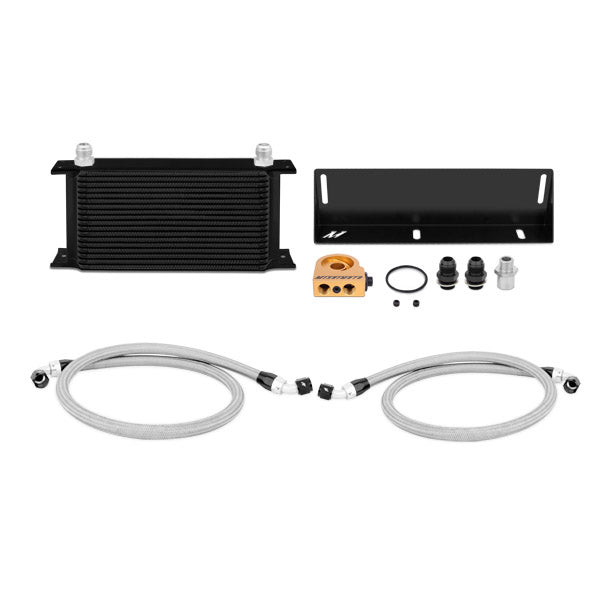

Mishimoto MMOC-MUS-79TBK Oil Cooler Kit Black Thermostatic Fits Ford Mustang 5.0L 1979-1993

The Fox Body Mustang is well known for its lightweight chassis and powerful drive train.High-powered NA, turbocharged, and supercharged vehicles produce an abundance of unwanted heat under the hood, which accelerates oil breakdown and engine wear.Protect and enhance your Mustang with the Mishimoto direct-fit oil cooler kit.This kit features a large 19-row oil cooler that mounts in the front bumper for maximum airflow and cooling efficiency.The Mishimoto Mustang oil cooler kit can be installed in less than two hours and adds more than .5 qt to your total oil capacity.This kit includes a mounting bracket engineered specifically for the Fox Body, preassembled lines, fittings, oil sandwich plate, and all hardware necessary for a clean installation.The Mishimoto oil cooler kit is available with a thermostatic sandwich plate for additional oil temperature control, and your choice of stealth black or silver cooler.As with all our products, this kit includes the Mishimoto lifetime warranty.

• Dramatic temperature drop
• Minimal pressure loss
• Installs in under an hour

Attributes:

• Brand Name: Mishimoto
• GTIN: 00748666008717
• Base Height: 0
• Color: Black
• Core Color: Black
• Core Height: 5.43
• Core Row Quantity: 0
• Core Thickness: 1.97
• Core Type: Bar-and-Plate
• Core Width: 11
• Finish: Anodized
• Fluid Capacity: 0
• Grade Type: Performance
• Inlet Fitting Gender: Male
• Inlet Fitting Type: AN Flare
• Inlet Outside Diameter: 0
• Install Difficulty: 2
• OptionLabel: Black Cooler, Thermostatic
• Outlet Fitting Gender: Male
• Outlet Fitting Type: AN Flare
• Outlet Outside Diameter: 0
• SellingPoint01: Dramatic temperature drop
• SellingPoint02: Minimal pressure loss
• SellingPoint03: Installs in under an hour
• SellingPoint04: Direct fit for the Fox Body Mustang
• SellingPoint05: Thermostatic option available
• SellingPoint06: Stealth Black and Sleek Silver cooler options
• SellingPoint07: Mishimoto Lifetime Warranty
• SellingPoint08: N/A
• SellingPoint09: N/A
• SellingPoint10: N/A
• SellingPoint11: N/A
• SellingPoint12: N/A
• SellingPoint13: N/A
• SellingPoint14: N/A
• SellingPoint15: N/A
• TechSpec Applications: N/A
• TechSpec Caution: It is the installer's responsibility to check all thermostat plugs, NPT plugs, line fittings, and other connections to assure they are fully tightened before operating the vehicle. Mishimoto recommends that you check all connections at regular intervals, especially during the first few miles after installation. For additional technical information, contact our customer experience team.
• TechSpec Chassis Codes: Fox
• TechSpec Core Construction: N/A
• TechSpec Core Height (in): 5.43
• TechSpec Core Length (in): 11
• TechSpec Core Thickness (in): 1.97
• TechSpec Engine Codes: 302 ci / 4.9L
• TechSpec Fluid Capacity (qts): N/A
• TechSpec Includes: Application Specific Mounting Bracket--19-Row Oil Cooler--3ft, 5in Stainless Steel Braided Hose with 45 Degree and 90 Degree -10AN Fittings--4ft, 1in Stainless Steel Braided Hose with 45 Degree and 90 Degree -10AN Fittings--M20 Thermostatic Sandwich Plate--3/4 x 16 Stainless Steel Sandwich Plate Adapter--M20 x -10AN Straight Fittings--Mounting Hardware Set--Mishimoto Lifetime Warranty
• TechSpec Inlet: N/A
• TechSpec Installation Notes: Recommended torque specification for all straight fittings and banjo bolts: 15-25 lb-ftDo not exceed the maximum torque rating of 35 ft-lb
• TechSpec Note: N/A
• TechSpec Outlet: N/A
• TechSpec Overall Height (in): N/A
• TechSpec Overall Length (in): N/A
• TechSpec Overall Width (in): N/A
• TechSpec Rows: 19
• Width: 0

Extended Information:

• Country of Origin: China
• Emissions : Emissions Compliance Exempt

Packing Information:

• Quantity of Each: 1
• Package UOM: EA
• Dimension: 11.36 x 11.36 x 11.36 inches
• Weight: 10.06 POUNDS
