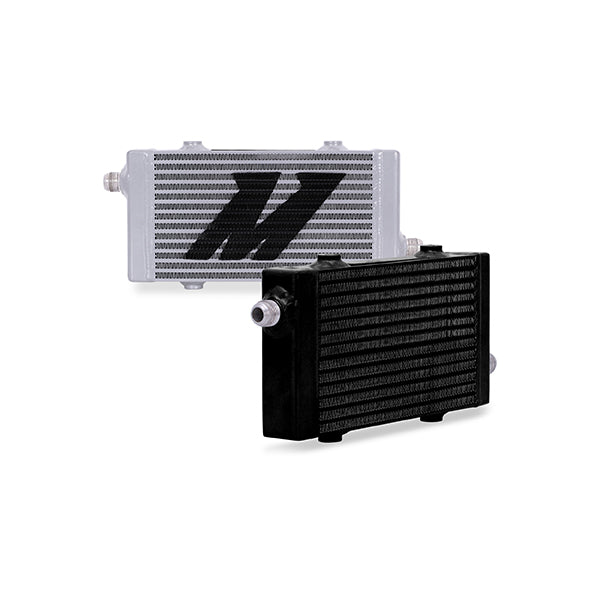

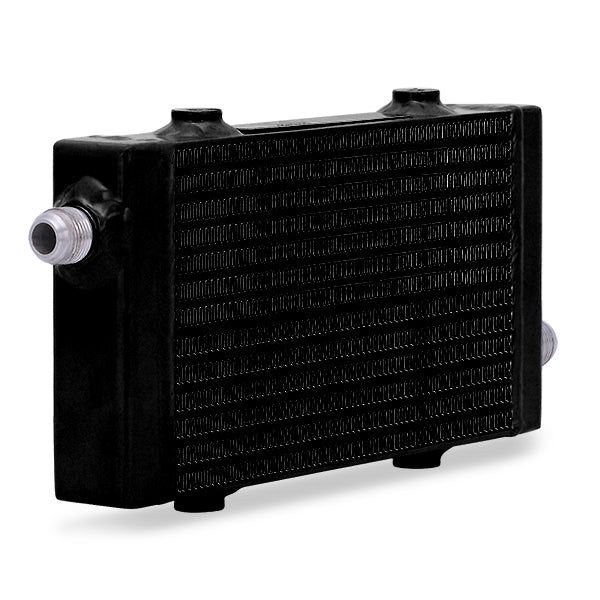

Mishimoto MMOC-SP-SBK Universal Oil Cooler Cross Flow Bar And Plate Black Small

As anyone who's spent some time on the track will tell you, one of the most important things to keep under control while pushing the limits of your vehicle is oil temperature. Oil that gets too hot will lose its viscosity, which is the very characteristic that makes it thick, slippery, and useful for lubrication. Adding a Mishimoto race oil cooler to your ride will ensure that your oil stays cool enough to do its job, extending the life of the high-wear components within your block and letting you focus not on keeping things cool, but taking home the checkered flag. Available in your choice of sleek silver or stealth black, this particular oil cooler features a single pass core ? oil enters one side and exits the other. Ideal for tight situations, Mishimoto's small single pass oil cooler will help keep temperatures in check while you shoot for the podium finish.

• Durable Bar and Plate cooler design for use in custom applications
• M8x1.25 Welded bungs to use for attaching brackets
• 10AN fittings for attaching oil lines

Attributes:

• Brand Name: Mishimoto
• GTIN: 00748354030778
• Base Height: 6.3
• Color: Black
• Core Color: Black
• Core Height: 5.51
• Core Row Quantity: 0
• Core Thickness: 1.57
• Core Type: Bar-and-Plate
• Core Width: 0
• Finish: Anodized
• Fluid Capacity: 0.5
• Grade Type: Performance
• Inlet Fitting Gender: Male
• Inlet Fitting Type: AN Flare
• Inlet Outside Diameter: 0.625
• Install Difficulty: N/A
• OptionLabel: Black
• Outlet Fitting Gender: Male
• Outlet Fitting Type: AN Flare
• Outlet Outside Diameter: 0.625
• SellingPoint01: Durable Bar and Plate cooler design for use in custom applications
• SellingPoint02: M8x1.25 Welded bungs to use for attaching brackets
• SellingPoint03: 10AN fittings for attaching oil lines
• SellingPoint04: 100-percent aluminum construction with CNC end tanks
• SellingPoint05: Reduces oil temperatures with minimal pressure loss
• SellingPoint06: Increased oil system capacity for increased cooling capability
• SellingPoint07: Available in Sleek Silver or Stealth Black
• SellingPoint08: Mishimoto Lifetime Warranty
• SellingPoint09: N/A
• SellingPoint10: N/A
• SellingPoint11: N/A
• SellingPoint12: N/A
• SellingPoint13: N/A
• SellingPoint14: N/A
• SellingPoint15: N/A
• TechSpec Applications: N/A
• TechSpec Caution: N/A
• TechSpec Chassis Codes: N/A
• TechSpec Core Construction: N/A
• TechSpec Core Height (in): 5.51
• TechSpec Core Length (in): N/A
• TechSpec Core Thickness (in): 1.57
• TechSpec Engine Codes: N/A
• TechSpec Fluid Capacity (qts): 0.5
• TechSpec Includes: (1) Oil Cooler--Mishimoto Lifetime Warranty
• TechSpec Inlet: -10AN
• TechSpec Installation Notes: N/A
• TechSpec Note: For your taste, only one side of the silver oil coolers has the Mishimoto "M" Logo, the stealth black option does not have a logo
• TechSpec Outlet: -10AN
• TechSpec Overall Height (in): 6.3
• TechSpec Overall Length (in): 13.5
• TechSpec Overall Width (in): 1.57
• TechSpec Rows: N/A
• Width: 1.57

Extended Information:

• Country of Origin: CN
• Emissions : Emissions Compliance Exempt

Packing Information:

• Quantity of Each: 1
• Package UOM: EA
• Dimension: 15 x 11 x 4 inches
• Weight: 2.27 POUNDS
