Mishimoto MMOCA-GTO Front-Sump Oil Cooler Adapter Fits LS1/LS2

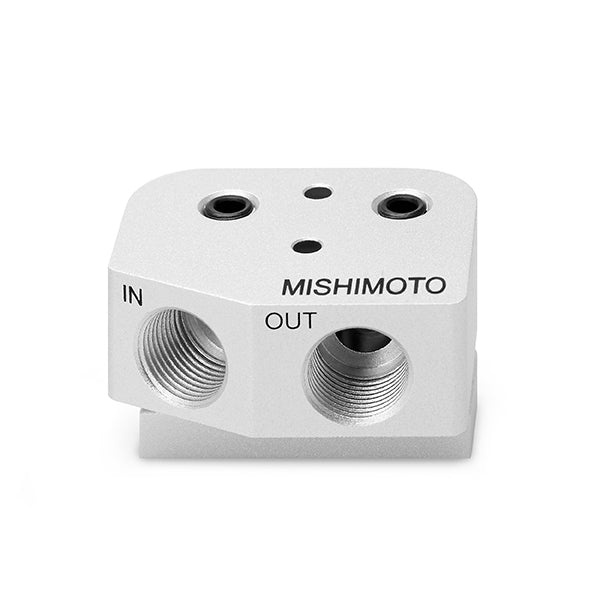

This LS1/LS2 front-sump oil cooler adapter allows you to get creative with your build. It is designed to give you a starting point when designing your own custom oil cooler setup. The adapter and fittings are CNC-machined from 6061 aluminum for superior fitment and durability. The adapter features two 1/8in NPT ports to allow for extra sensors or oil feeds, just in case you're thinking of adding a big oleft turbocharger in the future. Let this kit be the end of high oil temperatures in your LS engine.

• Designed for LS1/LS2 equipped vehicles with a front-sump
• Allows for use of -10AN fittings for custom oil cooler installation
• CNC-machined components, including 6061 aluminum fittings and adapter plates

Attributes:

• Brand Name: Mishimoto
• GTIN: 00748354027334
• Color: Silver
• Gasket Or Seal Included: Yes
• Install Difficulty: 3
• Material: 6061 Aluminum
• Port Quantity: 2
• SellingPoint01: Designed for LS1/LS2 equipped vehicles with a front-sump
• SellingPoint02: Allows for use of -10AN fittings for custom oil cooler installation
• SellingPoint03: CNC-machined components, including 6061 aluminum fittings and adapter plates
• SellingPoint04: Two 1/8-in NPT ports (with plugs) for sensors/oil feed/etc.
• SellingPoint05: Includes one straight and one banjo fitting for easy installation of -10AN oil lines Includes power steering relocation bracket
• SellingPoint06: Mishimoto Lifetime Warranty
• SellingPoint07: N/A
• SellingPoint08: N/A
• SellingPoint09: N/A
• SellingPoint10: N/A
• SellingPoint11: N/A
• SellingPoint12: N/A
• SellingPoint13: N/A
• SellingPoint14: N/A
• SellingPoint15: N/A
• TechSpec Applications: 2001-2005 Holden Monaro (V2 VC8 & VZ)--1999-2006 Holden Commodore (VT, VX, VY & VZ)--1999-2006 Holden Commodore Ute--1999-2006 Holden Statesman (WH, WK, WL)--1999-2006 Holden Caprice (WH, WK, WL)--2001-2006 Vauxhall Monaro----Other vehicles equipped with the GM front-sump oil pan part number 12599397, 12599398, 12581209, or 12581210.
• TechSpec Caution: It is the installer's responsibility to check all thermostat plugs, NPT plugs, line fittings, and other connections to assure they are fully tightened before operating the vehicle. Mishimoto recommends that you check all connections at regular intervals, especially during the first few miles after installation. For additional technical information, contact our customer experience team.
• TechSpec Chassis Codes: V-Body
• TechSpec Core Construction: N/A
• TechSpec Core Height (in): N/A
• TechSpec Core Length (in): N/A
• TechSpec Core Thickness (in): N/A
• TechSpec Engine Codes: LS-1--LS-2
• TechSpec Fluid Capacity (qts): N/A

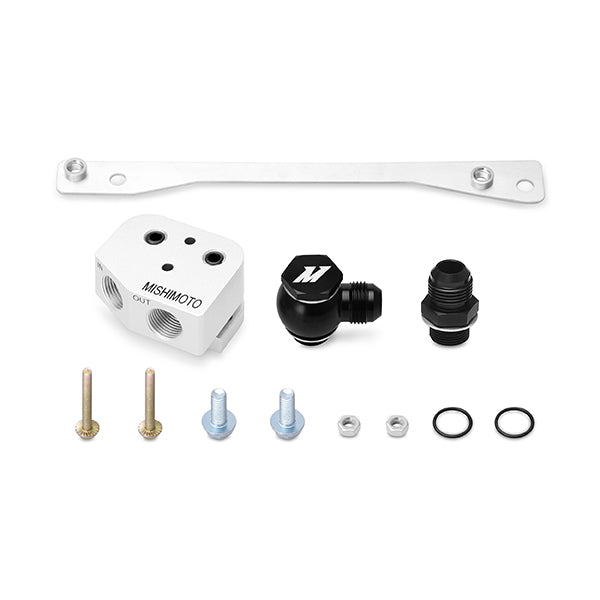

• TechSpec Includes: Oil Cooler Adapter Housing & Spacer--Aluminum Power Steering Relocation Bracket--Banjo Fitting w/ Bolt M20 x -10AN, Black--M20 x -10AN Straight Fitting, Black--O-Rings--1/8-in NPT Plugs--Mounting Hardware Set--Mishimoto Lifetime Warranty
• TechSpec Inlet: N/A
• TechSpec Installation Notes: Torque bolts to between 108 in-lbs and 120 in-lbs
• TechSpec Note: N/A
• TechSpec Outlet: N/A
• TechSpec Overall Height (in): N/A
• TechSpec Overall Length (in): N/A
• TechSpec Overall Width (in): N/A
• TechSpec Rows: N/A
• Thickness: 1

Extended Information:

• Country of Origin: China
• Emissions : Emissions Compliance Exempt

Packing Information:

• Quantity of Each: 1
• Package UOM: EA
• Dimension: 5.48 x 5.48 x 5.48 inches
• Weight: 1.24 POUNDS
