Mishimoto MMOP-SPM22 Oil Sandwich Plate Silver M22
Increments of 1
Minimum of 1
Maximum of
0Low stock
0In stock, ready to ship
Sale price
$79.95
-0%
Regular price
$79.95
Regular price
$79.95
Unit price
per
Couldn't load pickup availability
Get notified by email when this product becomes available
Have a question?
Description

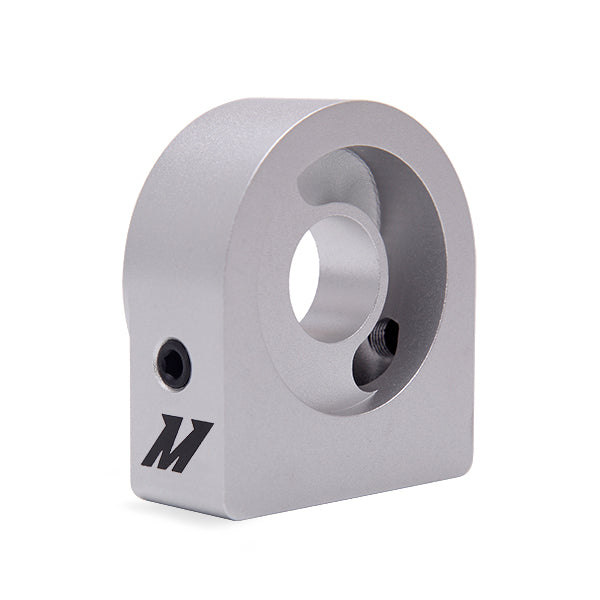

This Mishimoto Oil Sandwich Plate is a lightweight, high-flow sandwich plate that's built from 6061 aluminum. It's used to add an external cooler to your vehicles oil system. This Oil Sandwich Plate is designed specifically for M22 Stainless Steel Center Bolts and includes two 1/8in NPT plugged ports for optional sensors or gauges as well as our Mishimoto Lifetime Warranty.
- CNC-Machined 6061 Aluminum
- Two 1/8-in NPT Ports (with plug) for sensors/oil feed/etc.
- Square O-ring design
Attributes:
- Brand Name: Mishimoto
- GTIN: 00748354030198
- Color: Silver
- Gasket Or Seal Included: Yes
- Install Difficulty: 2
- Material: 6061 Aluminum
- Port Quantity: 2
- SellingPoint01: CNC-Machined 6061 Aluminum
- SellingPoint02: Two 1/8-in NPT Ports (with plug) for sensors/oil feed/etc.
- SellingPoint03: Square O-ring design
- SellingPoint04: Mishimoto Lifetime Warranty
- SellingPoint05: N/A
- SellingPoint06: N/A
- SellingPoint07: N/A
- SellingPoint08: N/A
- SellingPoint09: N/A
- SellingPoint10: N/A
- SellingPoint11: N/A
- SellingPoint12: N/A
- SellingPoint13: N/A
- SellingPoint14: N/A
- SellingPoint15: N/A
- TechSpec Applications: N/A
- TechSpec Caution: It is the installer's responsibility to check all thermostat plugs, NPT plugs, line fittings, and other connections to assure they are fully tightened before operating the vehicle. Mishimoto recommends that you check all connections at regular intervals, especially during the first few miles after installation. For additional technical information, contact our customer experience team.
- TechSpec Chassis Codes: N/A
- TechSpec Core Construction: N/A
- TechSpec Core Height (in): N/A
- TechSpec Core Length (in): N/A
- TechSpec Core Thickness (in): N/A
- TechSpec Engine Codes: N/A
- TechSpec Fluid Capacity (qts): N/A
- TechSpec Includes: Oil Sandwich Plate--Rubber O-ring--Black 1/8-in NPT Plugs--Mishimoto Lifetime Warranty
- TechSpec Inlet: N/A
- TechSpec Installation Notes: N/A
- TechSpec Note: This sandwich plate was designed to only be used with an M22 Sandwich Plate Adapter
- TechSpec Outlet: N/A
- TechSpec Overall Height (in): 3.15
- TechSpec Overall Length (in): 2.83
- TechSpec Overall Width (in): 1.24
- TechSpec Rows: N/A
- Thickness: 1
Extended Information:
- Country of Origin: CN
- Emissions : Emissions Compliance Exempt
Packing Information:
- Quantity of Each: 1
- Package UOM: EA
- Dimension: 4 x 3.4 x 2 inches
- Weight: 0.6 POUNDS
