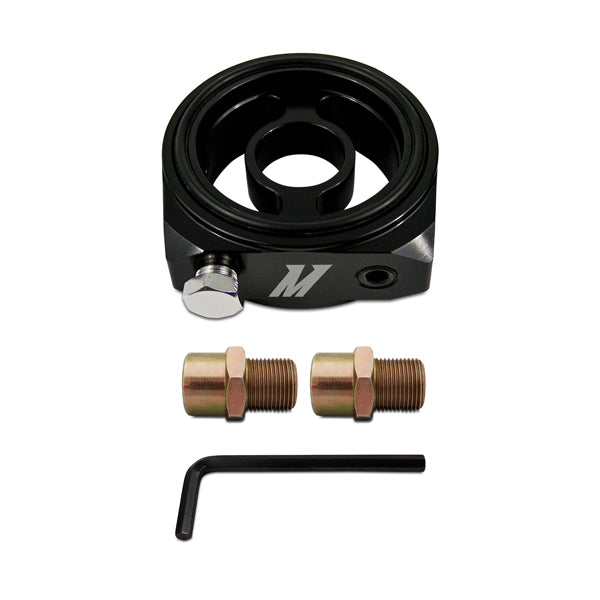

Mishimoto MMOP-TPS Oil Filter Sandwich Plate Adapter

The Mishimoto Oil Filter Sandwich Plate Adapters are made with 3 NPT ports to allow you to install an oil temperature sensor, oil pressure sensor, and/or a turbo oil feed.This easy-to-install plate eliminates the need to drill into your block by using the mounting point on your engine oil filter.Two adapters are included with purchase for fitment with multiple applications.

• 6061 aluminum, CNC-machined
• Three 1/8-in NPT ports (with plug) for sensors/oil feed/etc.
• M20 x 1.5 and 3/4-UNF

Attributes:

• Brand Name: Mishimoto
• GTIN: 00748354805895
• Color: Black
• Gasket Or Seal Included: Yes
• Install Difficulty: 2
• Material: 6061 Aluminum
• Port Quantity: 2
• SellingPoint01: 6061 aluminum, CNC-machined
• SellingPoint02: Three 1/8-in NPT ports (with plug) for sensors/oil feed/etc.
• SellingPoint03: M20 x 1.5 and 3/4-UNF
• SellingPoint04: 16 Sandwich Plate Adapters
• SellingPoint05: Mishimoto Lifetime Warranty
• SellingPoint06: N/A
• SellingPoint07: N/A
• SellingPoint08: N/A
• SellingPoint09: N/A
• SellingPoint10: N/A
• SellingPoint11: N/A
• SellingPoint12: N/A
• SellingPoint13: N/A
• SellingPoint14: N/A
• SellingPoint15: N/A
• TechSpec Applications: N/A
• TechSpec Caution: It is the installer's responsibility to check all thermostat plugs, NPT plugs, line fittings, and other connections to assure they are fully tightened before operating the vehicle. Mishimoto recommends that you check all connections at regular intervals, especially during the first few miles after installation. For additional technical information, contact our customer experience team.
• TechSpec Chassis Codes: N/A
• TechSpec Core Construction: N/A
• TechSpec Core Height (in): N/A
• TechSpec Core Length (in): N/A
• TechSpec Core Thickness (in): N/A
• TechSpec Engine Codes: N/A
• TechSpec Fluid Capacity (qts): N/A
• TechSpec Includes: Oil Plate Sandwich Adapter with 1/8-in NPT Ports--Large O-ring--Sandwich Plate Adapters--Black Flush Fittings w/ Allen Key Bolt--Allen Key--Hex Head Fitting--Installation Guide--Mishimoto Lifetime Warranty
• TechSpec Inlet: N/A
• TechSpec Installation Notes: Sandwich Plate Adapter: 35 ft-lb
• TechSpec Note: N/A
• TechSpec Outlet: N/A
• TechSpec Overall Height (in): 2.8
• TechSpec Overall Length (in): 3
• TechSpec Overall Width (in): 1.125
• TechSpec Rows: N/A
• Thickness: 1

Extended Information:

• Country of Origin: China
• Emissions : Emissions Compliance Exempt

Packing Information:

• Quantity of Each: 1
• Package UOM: EA
• Dimension: 3.6 x 4.8 x 2.3 inches
• Weight: 0.15 POUNDS
