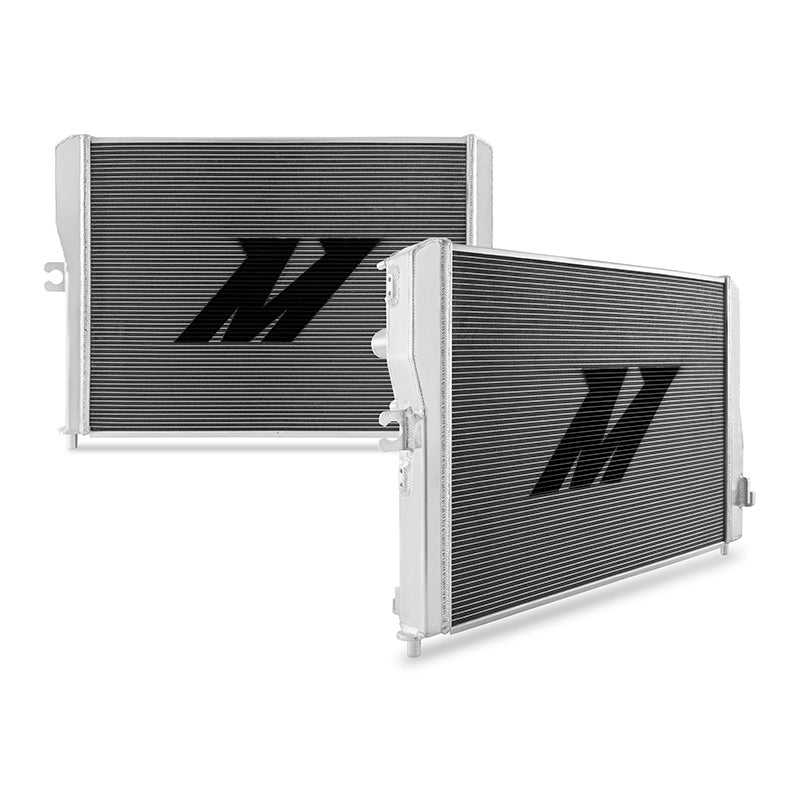

Mishimoto MMRAD-C7-14 Performance Aluminum Radiator Fits Chevrolet C7 Corvette Stingray/Z06 2014-2019

Give your C7 the cooling boost it needs with the Mishimoto 2014-2019 Chevrolet Corvette Performance Aluminum Radiator. It's no secret that the C7 had a spotty start and was riddled with overheating issues, and It's no wonder with the radiator that Chevy gave it from the factory. Even though this radiator might not be pulling double or triple duty cooling the transmission and oil, like what we found in previous Corvette generations, the thin core paired with the plastic end tanks is no match for the mighty LT1 and LT4. The Mishimoto C7 Corvette Performance Aluminum Radiator gives you some piece of mind in the cooling department. Our all-aluminum design features a 2-inch thick core sporting two rows of coolant channels which equates to a 38-percent increase in core volume. The Mishimoto radiator also increases the fin surface area by 135-percent. When coupled with the volume increase, you get a 5 F drop in outlet temperatures throughout the powerband. The all-aluminum end tanks TIG-welded to the core mean that it doesn't just look the part, it acts the part and is a perfect upgrade for durability on top of the performance gains. The inverted header plate and specialized AC condenser brackets mean that fitment and installation is a breeze, and like all of our products, the Mishimoto 2014-2019 Chevrolet C7 Corvette Performance Aluminum Radiator is covered under the Mishimoto Lifetime Warranty.

• Full aluminum construction with durable, TIG-welded end tanks
• Integrated end-tank oil and automatic transmission coolers
• Drops outlet temperature by 5F across powerband

Attributes:

• Brand Name: Mishimoto
• GTIN: 00811580036071
• Core Finish: Uncoated
• Core Height: 0
• Core Length: 0
• Core Material: Aluminum
• Core Row Quantity: 2
• Core Thickness: 2
• Down Flow Or Cross Flow Type: Cross Flow
• Drain Plug Included: Yes
• Drain Plug Thread Size: M12 - 1.5
• Fluid Capacity: 3
• Inlet Diameter: 0
• Inlet Location: Top Right
• Install Difficulty: 3
• Outlet Diameter: 0
• Outlet Location: Bottom Left
• Overall Height: 17.1
• Overall Length: 24.6
• Overall Width: 3.9
• Radiator Cap Included: No
• SellingPoint01: Direct fit for the 2014-2019 C7 Chevrolet Corvette
• SellingPoint02: Full aluminum construction with durable, TIG-welded end tanks
• SellingPoint03: Integrated end-tank oil and automatic transmission coolers
• SellingPoint04: Drops outlet temperature by 5F across powerband
• SellingPoint05: Features a two-row 2-in thick brazed aluminum core, providing ideal fluid temperatures on the street and at the track
• SellingPoint06: 56-percent increase in fin surface area for optimal cooling properties
• SellingPoint07: Includes Magnetic Drain Plug to capture any metallic debris/fragments in your cooling system
• SellingPoint08: Mishimoto Lifetime Warranty
• SellingPoint09: N/A
• SellingPoint10: N/A
• SellingPoint11: N/A
• SellingPoint12: N/A
• SellingPoint13: N/A
• SellingPoint14: N/A
• SellingPoint15: N/A
• TechSpec Applications: 2014-2019 Chevrolet Corvette Stingray--2014-2019 Chevrolet Corvette Z06
• TechSpec Chassis Codes: C7
• TechSpec Core Height (in): N/A
• TechSpec Core Length (in): N/A
• TechSpec Core Thickness (in): 2
• TechSpec DPI: N/A
• TechSpec Drain Plug Thread Size: M12 x 1.5
• TechSpec Engine Codes: LT1--LT4
• TechSpec Fluid Capacity (gal): 3
• TechSpec Includes: Aluminum Radiator--Mounting Hardware--Mishimoto Lifetime Warranty
• TechSpec Inlet (in): N/A
• TechSpec Material: Aluminum
• TechSpec Note: N/A
• TechSpec Outlet (in): N/A
• TechSpec Overall Height (in): 17.1
• TechSpec Overall Length (in): 24.6
• TechSpec Overall Width (in): 3.9
• TechSpec Rows: 2
• Transmission Oil Cooler Fitting Type: N/A
• Transmission Oil Cooler Included: Yes

Extended Information:

• Country of Origin: China
• Emissions : Emissions Compliance Exempt

Packing Information:

• Quantity of Each: 1
• Package UOM: EA
• Dimension: 31 x 22 x 6 inches
• Weight: 19.5 POUNDS
