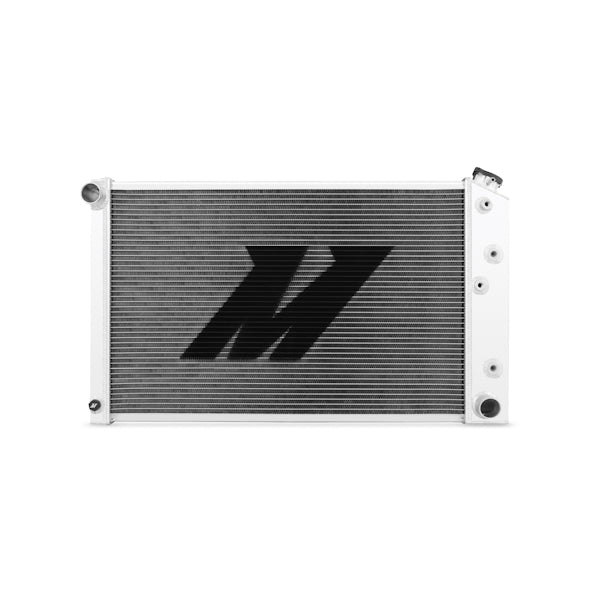

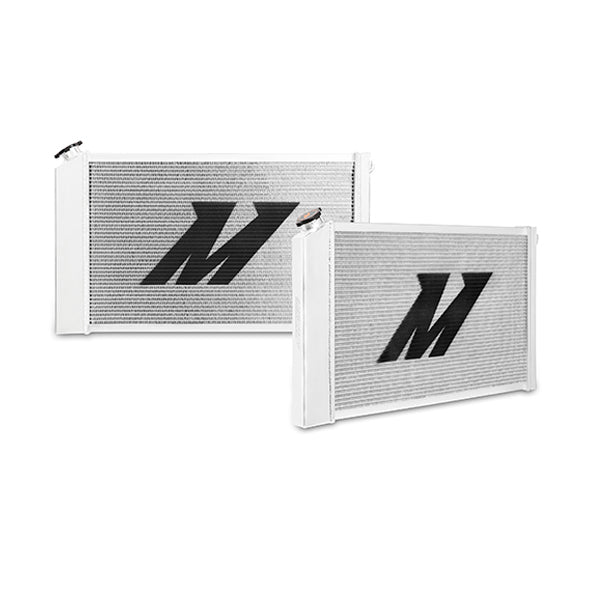

Mishimoto MMRAD-CAM-70 2-Row Performance Aluminum Radiator Fits ChevroletCamaro 1970-1981

The Mishimoto performance aluminum radiator for the Chevrolet Camaro / Pontiac Firebird is an ideal upgrade to the OEM radiator. Whether you are cruising to a car show or slinging rubber at the strip an efficient cooling system is a must. The Mishimoto Chevrolet Camaro aluminum radiator features a 2 row core and high pressure radiator cap to keep your stock or modified small block temperatures in check. Not only will this radiator improve engine cooling but the incorporated transmission cooler will provide significant reductions in fluid temperatures. The Mishimoto Chevrolet Camaro radiator is crafted from high quality TIG welded aluminum with polished end tanks. This aluminum radiator is a direct fit unit and will not require any trimming or cutting and is backed by the Mishimoto lifetime warranty.

• Full aluminum radiator featuring robust TIG-welded construction
• Two-row brazed aluminum core provides efficient fluid temperature reduction on the street or strip
• Includes 1.3 Bar High-Pressure Radiator Cap which effectively raises the boiling point of engine coolant, providing a safer and more efficient system

Attributes:

• Brand Name: Mishimoto
• GTIN: 00748666002296
• Core Finish: Uncoated
• Core Height: 16.5
• Core Length: 26.2
• Core Material: Aluminum
• Core Row Quantity: 2
• Core Thickness: 1.41
• Down Flow Or Cross Flow Type: Cross Flow
• Drain Plug Included: Yes
• Drain Plug Thread Size: M12 - 1.5
• Fluid Capacity: 4.87
• Inlet Diameter: 1.5
• Inlet Location: Top Left
• Install Difficulty: 3
• Outlet Diameter: 1.57
• Outlet Location: Bottom Right
• Overall Height: 31
• Overall Length: 18.75
• Overall Width: 4.2
• Radiator Cap Included: Yes
• SellingPoint01: Direct fit for the 1970-1981 Chevrolet Camaro w/ L6 and V8 engines
• SellingPoint02: Full aluminum radiator featuring robust TIG-welded construction
• SellingPoint03: Two-row brazed aluminum core provides efficient fluid temperature reduction on the street or strip
• SellingPoint04: Includes 1.3 Bar High-Pressure Radiator Cap which effectively raises the boiling point of engine coolant, providing a safer and more efficient system
• SellingPoint05: Polished aluminum end tanks enhance engine bay aesthetics
• SellingPoint06: Includes Mishimoto M12 x 1.25-in Magnetic Drain Plug to capture any metallic debris/fragments in your cooling system
• SellingPoint07: Mishimoto Lifetime Warranty
• SellingPoint08: N/A
• SellingPoint09: N/A
• SellingPoint10: N/A
• SellingPoint11: N/A
• SellingPoint12: N/A
• SellingPoint13: N/A
• SellingPoint14: N/A
• SellingPoint15: N/A
• TechSpec Applications: 1970-1981 Chevrolet Camaro
• TechSpec Chassis Codes: N/A
• TechSpec Core Height (in): 16.5
• TechSpec Core Length (in): 26.2
• TechSpec Core Thickness (in): 1.41
• TechSpec DPI: 162
• TechSpec Drain Plug Thread Size: M12 x 1.5
• TechSpec Engine Codes: N/A
• TechSpec Fluid Capacity (gal): 4.87
• TechSpec Includes: Mishimoto Radiator--Mishimoto Radiator Cap--Magnetic Drain Plug w/ Dowty Oil Seal--(2) 1/8-inch NPT Plugs--Mishimoto Lifetime Warranty
• TechSpec Inlet (in): 1.5
• TechSpec Material: Aluminum
• TechSpec Note: N/A
• TechSpec Outlet (in): 1.57
• TechSpec Overall Height (in): 31
• TechSpec Overall Length (in): 18.75
• TechSpec Overall Width (in): 4.2
• TechSpec Rows: 2
• Transmission Oil Cooler Fitting Type: N/A
• Transmission Oil Cooler Included: No

Extended Information:

• Country of Origin: CN
• Emissions : Emissions Compliance Exempt

Packing Information:

• Quantity of Each: 1
• Package UOM: EA
• Dimension: 36 x 24.9 x 9 inches
• Weight: 23.1 POUNDS
