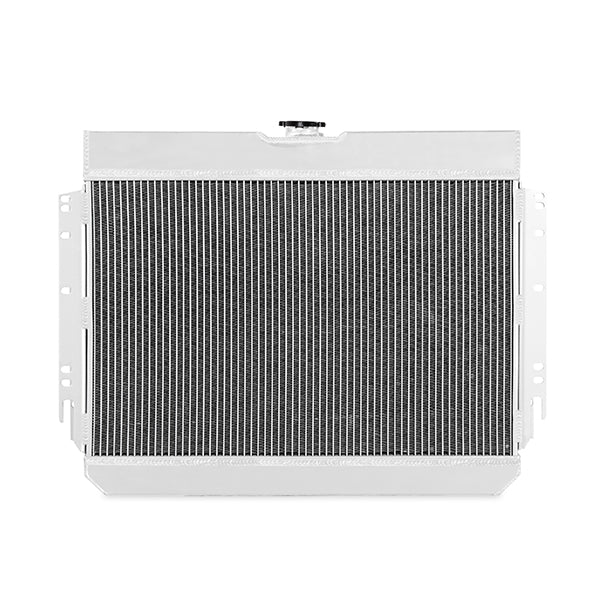

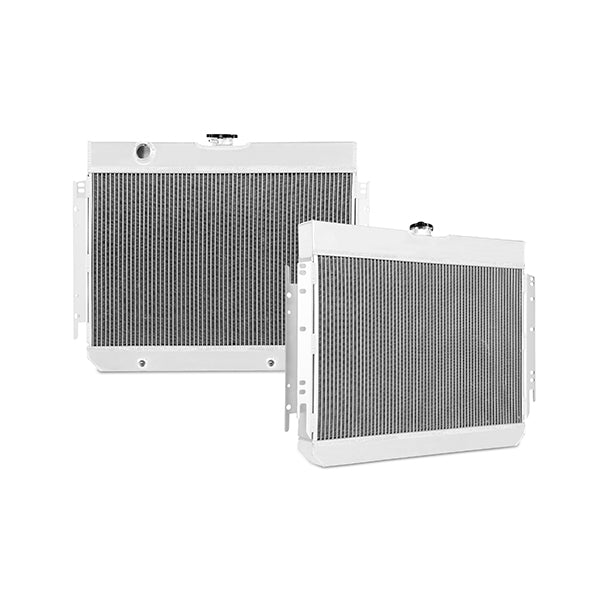

Mishimoto MMRAD-CHE-65X 3-Row Performance Aluminum Radiator Fits Chevrolet Chevelle 1965-1967

An ideal upgrade for the brittle stock radiator, the Mishimoto 1965-67 Chevrolet Chevelle X-Line Performance Aluminum Radiator provides your car with enhanced reliability and improved cooling efficiency. Whether you use your classic for daily driving or take it to the track, many people overlook the importance of installing an upgraded radiator in their engine. A stock radiator cannot handle the heat that comes along with having a great deal of horsepower. The Mishimoto Chevrolet Chevelle X-Line Aluminum Radiator is manufactured using durable aircraft-quality aluminum end tanks, precision TIG-welded to an efficient brazed aluminum core. The inlet and outlets provide precise leak-free connections. This performance radiator also includes a Magnetic Oil Drain Plug, which effectively removes metal fragments circulating in the cooling system. As with all our products, this radiator includes the Mishimoto Lifetime Warranty, ensuring superior product quality and craftsmanship.

• All-aluminum construction provides increased heat and pressure tolerance, better heat dissipation, increased durability, improved cooling efficiency, and improved structural rigidity
• Billet aluminum fill neck
• 3-row brazed aluminum core

Attributes:

• Brand Name: Mishimoto
• GTIN: 00748354016086
• Core Finish: Uncoated
• Core Height: 24.7
• Core Length: 16
• Core Material: Aluminum
• Core Row Quantity: 3
• Core Thickness: 2.5
• Down Flow Or Cross Flow Type: Down Flow
• Drain Plug Included: Yes
• Drain Plug Thread Size: M12 - 1.5
• Fluid Capacity: 4.81
• Inlet Diameter: 1.5
• Inlet Location: Top Left
• Install Difficulty: N/A
• Outlet Diameter: 1.5
• Outlet Location: Bottom Right
• Overall Height: 21.7
• Overall Length: 27.7
• Overall Width: 4.5
• Radiator Cap Included: Yes
• SellingPoint01: All-aluminum construction provides increased heat and pressure tolerance, better heat dissipation, increased durability, improved cooling efficiency, and improved structural rigidity
• SellingPoint02: Billet aluminum fill neck
• SellingPoint03: 3-row brazed aluminum core
• SellingPoint04: Manufactured with internal transmission cooler to ensure optimal fluid temperatures for automatic transmissions
• SellingPoint05: Increased coolant capacity directly results in better cooling efficiency and reduced engine temperatures
• SellingPoint06: Includes magnetic drain plug
• SellingPoint07: Mishimoto Lifetime Warranty
• SellingPoint08: N/A
• SellingPoint09: N/A
• SellingPoint10: N/A
• SellingPoint11: N/A
• SellingPoint12: N/A
• SellingPoint13: N/A
• SellingPoint14: N/A
• SellingPoint15: N/A
• TechSpec Applications: 1965-1967 Chevrolet Chevelle 250ci (4.1L) L6, 283ci (4.6L) V8, 327ci (5.4L) V8, 396ci (6.5L) V8--1966-1968 Chevrolet Impala 250ci (4.1L) I6, 283ci (4.6L) V8, 307ci (5.0L) V8, 327ci (5.4L) V8, 396ci (6.5L) V8--1966-1968 Chevrolet Caprice 250ci (4.1L) I6, 283ci (4.6L) V8, 307ci (5.0L) V8, 327ci (5.4L) V8, 396ci (6.5L) V8--1966-1968 Chevrolet Bel Air 250ci (4.1L) I6, 283ci (4.6L) V8, 307ci (5.0L) V8, 327ci (5.4L) V8, 396ci (6.5L) V8--1966-1968 Chevrolet Biscayne 250ci (4.1L) I6, 283ci (4.6L) V8, 307ci (5.0L) V8, 327ci (5.4L) V8, 396ci (6.5L) V8--1966-1967 Chevrolet El Camino 230ci (3.8L) L6, 250ci (4.1L) I6, 283ci (4.6L) V8, 327ci (5.4L) V8, 396ci (6.5L) V8--1966 Chevrolet Malibu 283ci (4.6L) V8, 327ci (5.4L) V8, 396ci (6.5L) V8
• TechSpec Chassis Codes: N/A
• TechSpec Core Height (in): 24.7
• TechSpec Core Length (in): 16
• TechSpec Core Thickness (in): 2.5
• TechSpec DPI: 289
• TechSpec Drain Plug Thread Size: 1/4-18 NPT
• TechSpec Engine Codes: 230ci (3.8L) L6--250ci (4.1L) I6--283ci (4.6L) V8--307ci (5.0L) V8--327ci (5.4L) V8--396ci (6.5L) V8
• TechSpec Fluid Capacity (gal): 4.81
• TechSpec Includes: Mishimoto Radiator--Mishimoto Radiator Cap--Magnetic Drain Plug--Mishimoto Lifetime Warranty
• TechSpec Inlet (in): 1.5
• TechSpec Material: Aluminum
• TechSpec Note: Transmission Cooler Thread Info:--On Radiator: Female 1/4" BSPP--Sealing Face: 70°
• TechSpec Outlet (in): 1.5
• TechSpec Overall Height (in): 21.7
• TechSpec Overall Length (in): 27.7
• TechSpec Overall Width (in): 4.5
• TechSpec Rows: 3
• Transmission Oil Cooler Fitting Type: N/A
• Transmission Oil Cooler Included: Yes

Extended Information:

• Country of Origin: China
• Emissions : Emissions Compliance Exempt

Packing Information:

• Quantity of Each: 1
• Package UOM: EA
• Dimension: 30.15 x 5.9 x 25 inches
• Weight: 21.45 POUNDS
