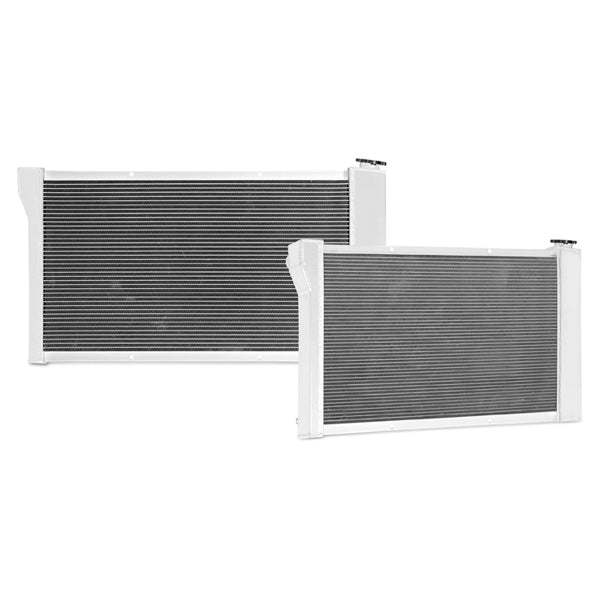

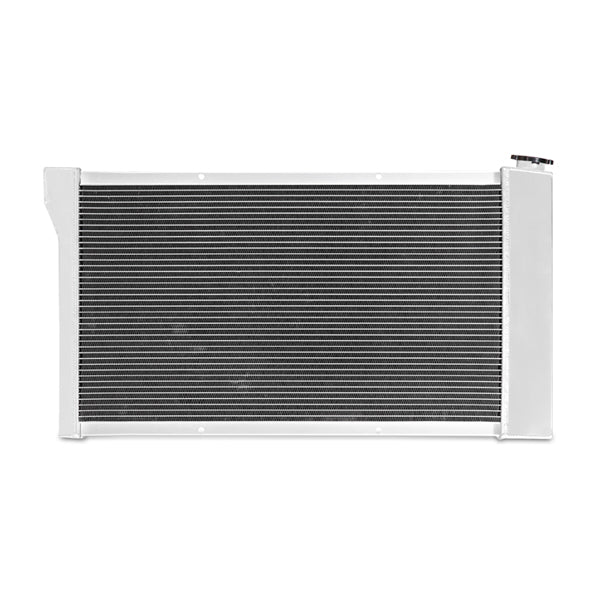

Mishimoto MMRAD-CK-67X 3-Row Performance Aluminum Radiator Fits Chevrolet/GM C/K Truck 1967-1972

An ideal upgrade for the brittle stock radiator, the Mishimoto 1967--1972 GM C/K Truck X-Line Performance Aluminum Radiator provides your truck with enhanced reliability and improved cooling efficiency. Whether you use your classic for daily driving or take it to the track, don't overlook the importance of installing an upgraded classic truck radiator in your engine. A stock radiator cannot handle the heat that comes along with having a great deal of horsepower. This GM C/K truck radiator is manufactured using durable aircraft-quality aluminum end tanks, precision TIG-welded to an efficient brazed aluminum core. The inlet and outlets provide precise leak-free connections. This classic car radiator also includes a magnetic oil drain plug, which effectively removes metal fragments circulating in the cooling system. As with all our products, every GM C/K truck radiator includes the Mishimoto Lifetime Warranty, ensuring superior product quality and craftsmanship.

• All-aluminum construction provides greater heat and pressure tolerance, better heat dissipation, increased durability, improved cooling efficiency, and improved structural rigidity
• 3-row brazed aluminum core with TIG-welded end tanks
• Increased coolant capacity and optimal heat dissipation

Attributes:

• Brand Name: Mishimoto
• GTIN: 00748354016116
• Core Finish: Uncoated
• Core Height: 16.1
• Core Length: 28.3
• Core Material: Aluminum
• Core Row Quantity: 3
• Core Thickness: 2.5
• Down Flow Or Cross Flow Type: Cross Flow
• Drain Plug Included: Yes
• Drain Plug Thread Size: M12 - 1.5
• Fluid Capacity: 4.87
• Inlet Diameter: 1.5
• Inlet Location: Top Left
• Install Difficulty: N/A
• Outlet Diameter: 1.75
• Outlet Location: Bottom Right
• Overall Height: 34.1
• Overall Length: 19.3
• Overall Width: 6.5
• Radiator Cap Included: Yes
• SellingPoint01: All-aluminum construction provides greater heat and pressure tolerance, better heat dissipation, increased durability, improved cooling efficiency, and improved structural rigidity
• SellingPoint02: 3-row brazed aluminum core with TIG-welded end tanks
• SellingPoint03: Increased coolant capacity and optimal heat dissipation
• SellingPoint04: Features an internal transmission cooler to provide optimal fluid temperatures for automatic transmissions
• SellingPoint05: Billet aluminum fill neck
• SellingPoint06: Includes magnetic drain plug to capture metallic debris and fragments in your cooling system
• SellingPoint07: Mishimoto Lifetime Warranty
• SellingPoint08: N/A
• SellingPoint09: N/A
• SellingPoint10: N/A
• SellingPoint11: N/A
• SellingPoint12: N/A
• SellingPoint13: N/A
• SellingPoint14: N/A
• SellingPoint15: N/A
• TechSpec Applications: 1967-1972 GM C/K Pickup 250 ci (4.1L) L6, 283ci (4.6L) V8, 292ci (4.8L) L6, 307ci (5.0L) V8, 327ci (5.4L) V8, 350ci (5.7L) V8, 396ci (6.5L) V8, 402ci (6.6L) V8--1969-1972 Chevy Blazer/GMC Jimmy 250ci (4.1L) L6, 292 (4.8L) L6, 307ci (5.0L) V8, 350ci (5.7L) V81967-1971 GM G Series Van 250 ci (4.1L) L6, 292ci (4.8L) L6, 307ci (5.0L) V8, 350ci (5.7L) V8--1968-1979 GM P Series Van 250 ci (4.1L) L6, 292ci (4.8L) L6, 307ci (5.0L) V8, 350ci (5.7L) V8, 402ci (6.6L) V8
• TechSpec Chassis Codes: N/A
• TechSpec Core Height (in): 16.1
• TechSpec Core Length (in): 28.3
• TechSpec Core Thickness (in): 2.5
• TechSpec DPI: 369
• TechSpec Drain Plug Thread Size: 1/4-18 NPT
• TechSpec Engine Codes: 250ci (4.1L) L6--292ci (4.8L) L6--283ci (4.6L) V8--307ci (5.0L) V8--327ci (5.4L) V8--350ci (5.7L) V8--402ci (6.6L) V8
• TechSpec Fluid Capacity (gal): 4.87
• TechSpec Includes: Mishimoto Radiator--Mishimoto Radiator Cap--Magnetic Drain Plug--Mishimoto Lifetime Warranty
• TechSpec Inlet (in): 1.5
• TechSpec Material: Aluminum
• TechSpec Note: N/A
• TechSpec Outlet (in): 1.75
• TechSpec Overall Height (in): 34.1
• TechSpec Overall Length (in): 19.3
• TechSpec Overall Width (in): 6.5
• TechSpec Rows: 3
• Transmission Oil Cooler Fitting Type: N/A
• Transmission Oil Cooler Included: Yes

Extended Information:

• Country of Origin: CN
• Emissions : Emissions Compliance Exempt

Packing Information:

• Quantity of Each: 1
• Package UOM: EA
• Dimension: 7.7 x 24 x 29.9 inches
• Weight: 17.35 POUNDS
