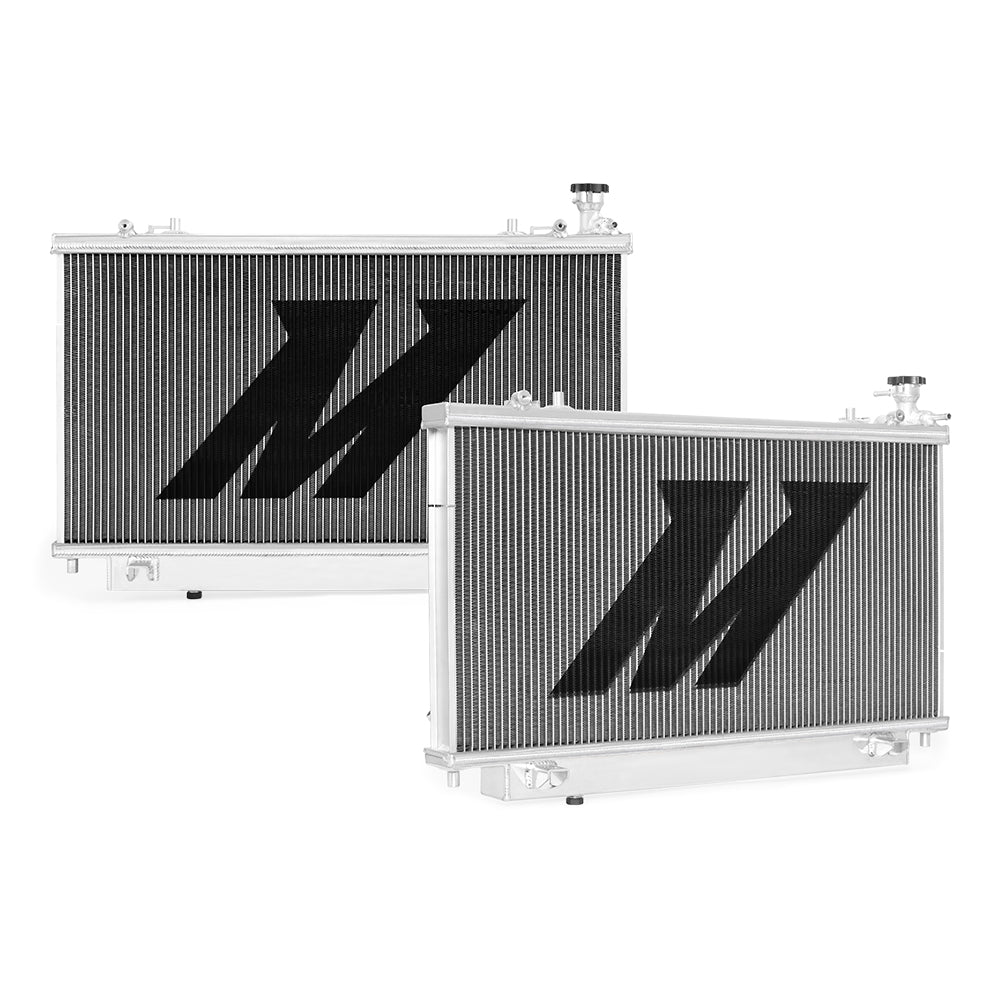

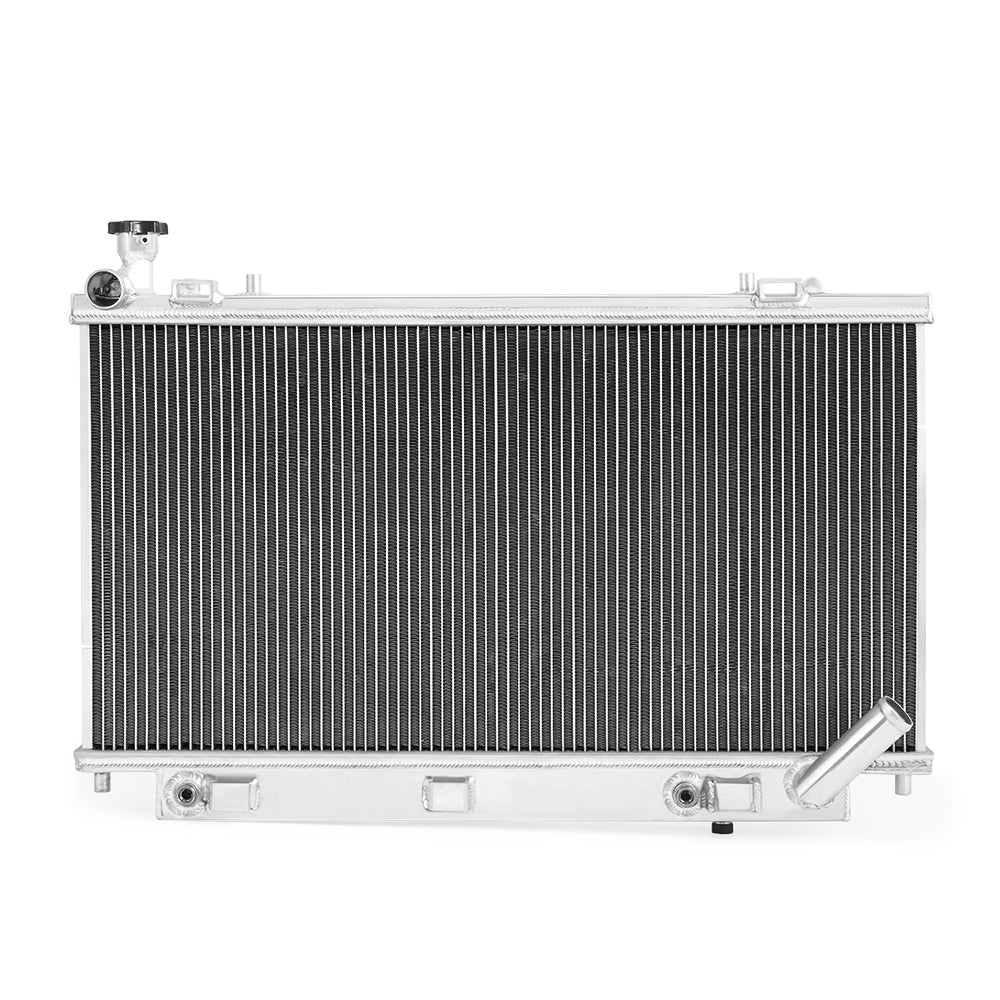

Mishimoto MMRAD-CMDRV8-06 Performance Aluminum Radiator Fits Holden VE Commodore V8 6.0L 2006-2012

Give some extra cooling power to the V8 under the hood of your 2006-2012 Holden VE Commodore with the Mishimoto Performance Aluminum Radiator. Our radiator design swaps out the thin core and plastic end tanks for full aluminum construction, TIG-welded for maximum durability. The Mishimoto design also features a 2.2" thick, 2-row core for maximum cooling, no matter wherever you drive your Commodore. The Mishimoto 2006-20012 Holden VE Commodore V8 Performance Aluminum Radiator is available in a polished finish and provides optimal cooling for both manual and automatic vehicles. This radiator also includes the Mishimoto Lifetime Warranty for a worry-free installation.

• 39-percent increase in core volume
• Full aluminum construction including durable, TIG-welded end tanks
• Features a two-row, 2.2-in thick, efficiently brazed aluminum core

Attributes:

• Brand Name: Mishimoto
• GTIN: 00811580037436
• Core Finish: Uncoated
• Core Height: 15.1
• Core Length: 29.4
• Core Material: Aluminum
• Core Row Quantity: 2
• Core Thickness: 2.2
• Down Flow Or Cross Flow Type: Down Flow
• Drain Plug Included: Yes
• Drain Plug Thread Size: M12 - 1.5
• Fluid Capacity: 0
• Inlet Diameter: 0
• Inlet Location: Top Left
• Install Difficulty: 3
• Outlet Diameter: 0
• Outlet Location: Bottom Right
• Overall Height: 32.4
• Overall Length: 15.1
• Overall Width: 5.9
• Radiator Cap Included: Yes
• SellingPoint01: Direct fit for the Holden VE Commodore V8 Auto/Manual, 2006-2012
• SellingPoint02: 39-percent increase in core volume
• SellingPoint03: Full aluminum construction including durable, TIG-welded end tanks
• SellingPoint04: Features a two-row, 2.2-in thick, efficiently brazed aluminum core
• SellingPoint05: Provides efficient temperature reduction on the street, track, and drag strip
• SellingPoint06: Increased fluid capacity for optimal heat dissipation
• SellingPoint07: Efficient temperature regulation for both stock and modified vehicles
• SellingPoint08: Includes Magnetic Drain Plug to capture any metallic debris/fragments in your cooling system
• SellingPoint09: Includes 1.3 Bar High-Pressure Radiator Cap which effectively raises the boiling point of engine coolant, providing a safer and more efficient system
• SellingPoint10: Mishimoto Lifetime Warranty
• SellingPoint11: N/A
• SellingPoint12: N/A
• SellingPoint13: N/A
• SellingPoint14: N/A
• SellingPoint15: N/A
• TechSpec Applications: 2006-2012 Holden VE Commodore
• TechSpec Chassis Codes: VE
• TechSpec Core Height (in): 15.1
• TechSpec Core Length (in): 29.4
• TechSpec Core Thickness (in): 2.2
• TechSpec DPI: N/A
• TechSpec Drain Plug Thread Size: M12 x 1.5
• TechSpec Engine Codes: L98--L76--L77
• TechSpec Fluid Capacity (gal): N/A
• TechSpec Includes: Aluminum Radiator-- Radiator Cap-- Magnetic Drain Plug--Mishimoto Lifetime Warranty
• TechSpec Inlet (in): N/A
• TechSpec Material: Aluminum
• TechSpec Note: N/A
• TechSpec Outlet (in): N/A
• TechSpec Overall Height (in): 32.4
• TechSpec Overall Length (in): 15.1
• TechSpec Overall Width (in): 5.9
• TechSpec Rows: 2
• Transmission Oil Cooler Fitting Type: N/A
• Transmission Oil Cooler Included: No

Extended Information:

• Country of Origin: CN
• Emissions : Emissions Compliance Exempt

Packing Information:

• Quantity of Each: 1
• Package UOM: EA
• Dimension: 36.9 x 9 x 24.9 inches
• Weight: 46.84 POUNDS
