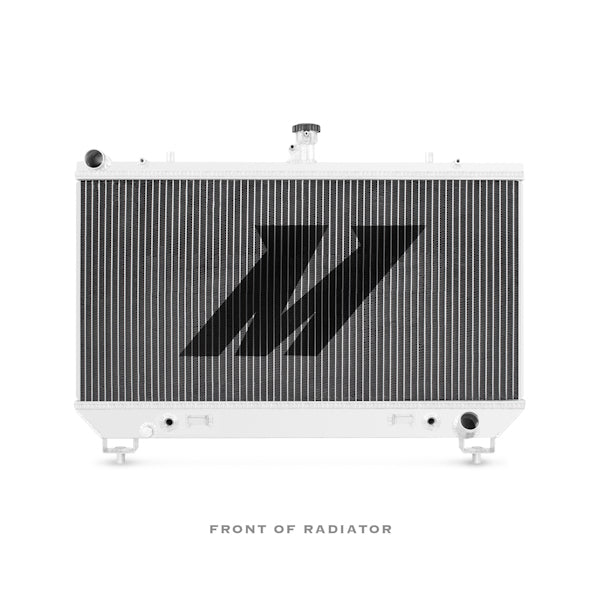

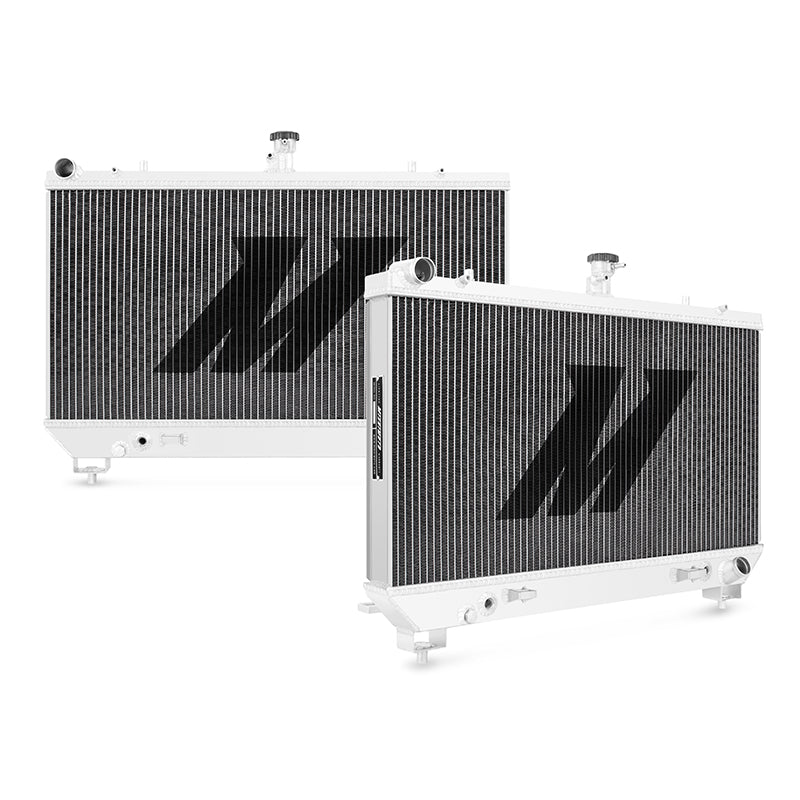

Mishimoto MMRAD-CSS-10 Performance Aluminum Radiator Fits Chevrolet Camaro SS 2010-2011

The Mishimoto performance aluminum radiator for the 2010-2011 Chevrolet Camaro SS is the ideal upgrade to the stock Camaro radiator.The last thing you want is to be limited by the factory unit during a hot day at the strip or when you're stuck in traffic.Our engineers know that, and our design reflects this by increasing cooling efficiency by 30-percent.Curious how much 30-percent really is? Well considering our radiator lets your cooling system gain gallon of extra capacity and lowers coolant temps by 20F, that 30-percent is pretty impressive.With polished end tanks and all aluminum construction, the Mishimoto Camaro SS radiator looks as good as it performs!

• Full aluminum construction with durable, TIG-welded end tanks
• Features a two-row, 2.20-in thick brazed aluminum core, providing ideal fluid temperatures on the street and strip
• .5 gal of additional fluid capacity

Attributes:

• Brand Name: Mishimoto
• GTIN: 00748666000186
• Core Finish: Uncoated
• Core Height: 15.1
• Core Length: 29.8
• Core Material: Aluminum
• Core Row Quantity: 2
• Core Thickness: 2.2
• Down Flow Or Cross Flow Type: Down Flow
• Drain Plug Included: Yes
• Drain Plug Thread Size: M12 - 1.5
• Fluid Capacity: 3.34
• Inlet Diameter: 1.38
• Inlet Location: Top Left
• Install Difficulty: 3
• Outlet Diameter: 1.38
• Outlet Location: Bottom Right
• Overall Height: 30.6
• Overall Length: 23.3
• Overall Width: 5.6
• Radiator Cap Included: Yes
• SellingPoint01: Direct fit for the 2010-2011 Chevrolet Camaro SS
• SellingPoint02: Full aluminum construction with durable, TIG-welded end tanks
• SellingPoint03: Features a two-row, 2.20-in thick brazed aluminum core, providing ideal fluid temperatures on the street and strip
• SellingPoint04: .5 gal of additional fluid capacity
• SellingPoint05: Lowers radiator outlet temperatures by 20 F
• SellingPoint06: 20-percent greater cooling efficiency
• SellingPoint07: Includes 1.3 Bar High-Pressure Radiator Cap which effectively raises the boiling point of engine coolant, providing a safer and more efficient system
• SellingPoint08: Includes Magnetic Drain Plug to capture any metallic debris/fragments in your cooling system
• SellingPoint09: Mishimoto Lifetime Warranty
• SellingPoint10: N/A
• SellingPoint11: N/A
• SellingPoint12: N/A
• SellingPoint13: N/A
• SellingPoint14: N/A
• SellingPoint15: N/A
• TechSpec Applications: 2010-2011 Chevy Camaro SS (AT & MT)
• TechSpec Chassis Codes: Zeta
• TechSpec Core Height (in): 15.1
• TechSpec Core Length (in): 29.8
• TechSpec Core Thickness (in): 2.2
• TechSpec DPI: 13142
• TechSpec Drain Plug Thread Size: M12 x 1.5
• TechSpec Engine Codes: L99--LS3
• TechSpec Fluid Capacity (gal): 3.34
• TechSpec Includes: Mishimoto Radiator--Mishimoto Radiator Cap--Magnetic Drain Plug--Mishimoto Lifetime Warranty
• TechSpec Inlet (in): 1.38
• TechSpec Material: Aluminum
• TechSpec Note: N/A
• TechSpec Outlet (in): 1.38
• TechSpec Overall Height (in): 30.6
• TechSpec Overall Length (in): 23.3
• TechSpec Overall Width (in): 5.6
• TechSpec Rows: 2
• Transmission Oil Cooler Fitting Type: N/A
• Transmission Oil Cooler Included: No

Extended Information:

• Country of Origin: CN
• Emissions : Emissions Compliance Exempt

Packing Information:

• Quantity of Each: 1
• Package UOM: EA
• Dimension: 28.5 x 23.5 x 6.75 inches
• Weight: 20.1 POUNDS
