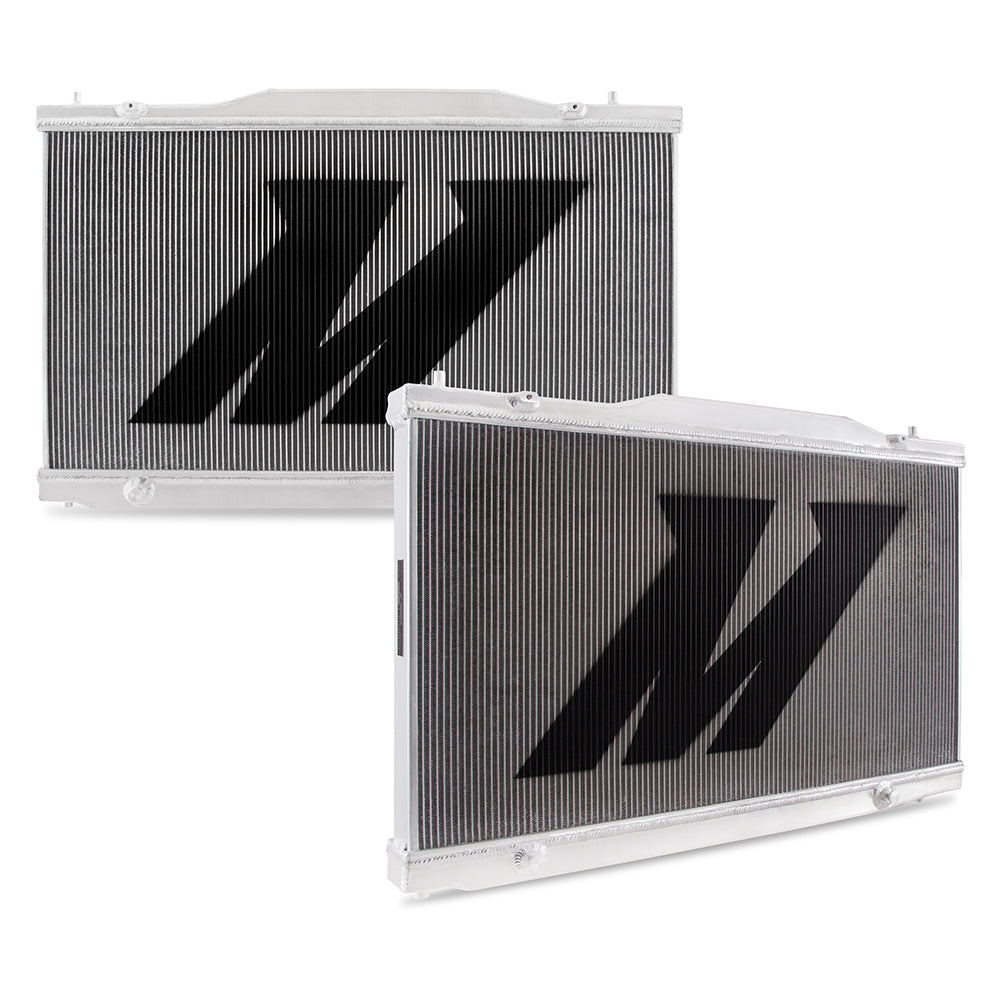

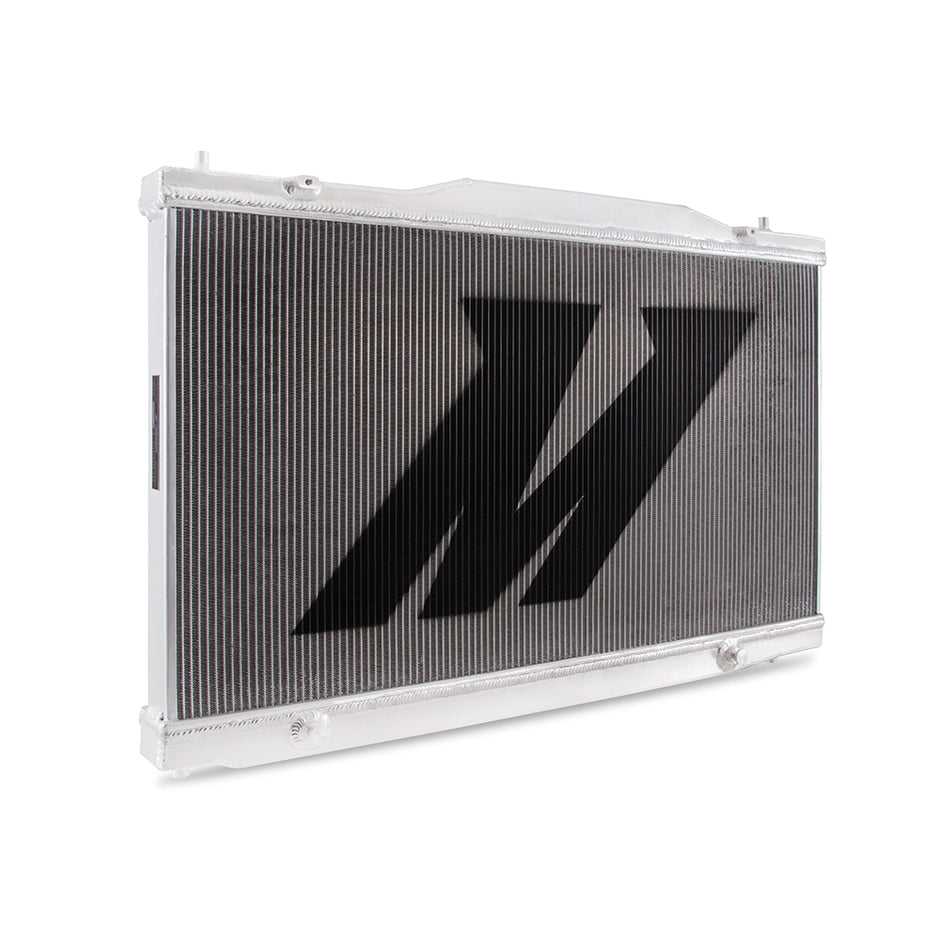

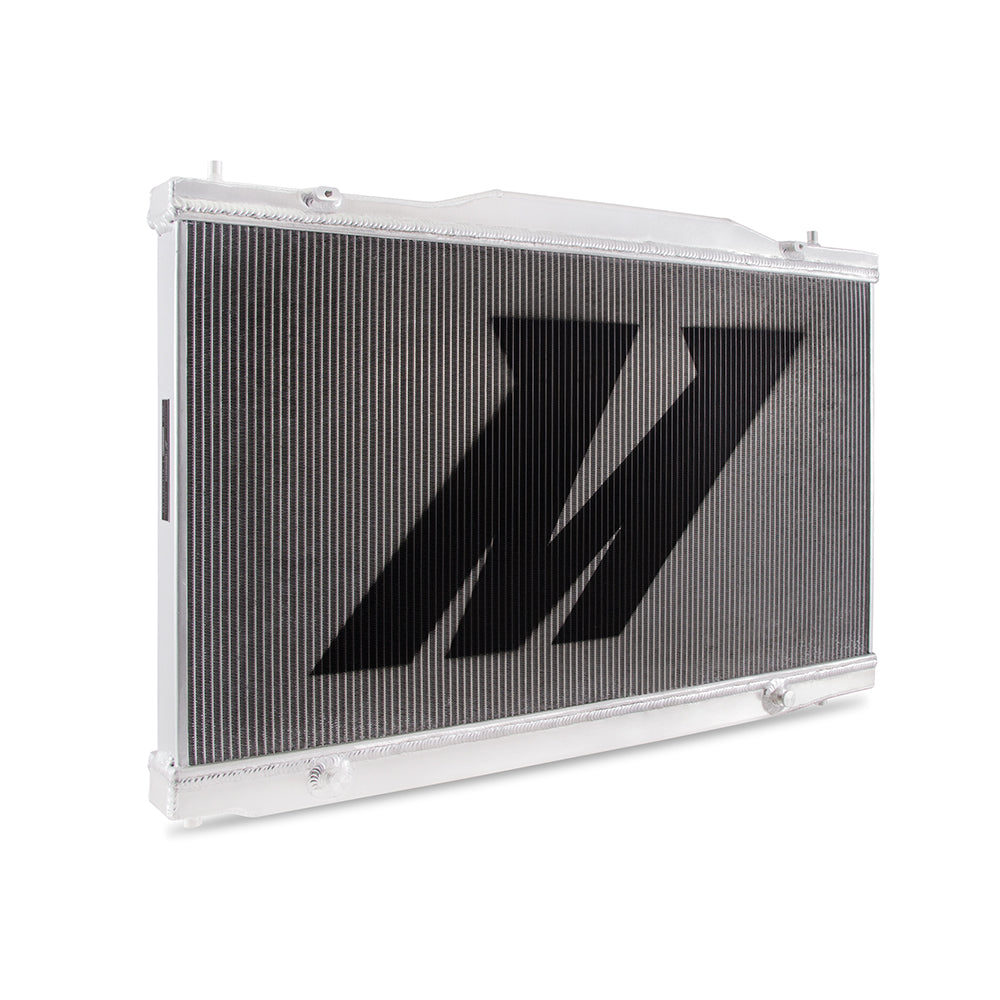

Mishimoto MMRAD-CTR-17 Performance Aluminum Radiator Fits Honda Civic Type R 2017-2021

Give your CTR the cooling power it desperately needs with the Mishimoto 2017-2021 Honda Civic Type R Performance Aluminum Radiator. Honda's top-rung Civic took the hot-hatchback world by storm, but there's still one thing that's holding it back heat. The K20C1 is quite the powerhouse in the Civic, but the stock cooling system just can't keep up. Mishimoto is here with a more durable and efficient cooling solution for your FK8. For starters, we ditched the skinny core and plastic end tanks for a full aluminum, TIG-welded construction, sure to stand up to abuse on the street, track or drag strip. Our design also features a 1.57in thick core, increasing core volume by 48-percent and external fin surface area by 102-percent for maximum heat dissipation properties. Our core also incorporates strutted tubes for maximum durability. The 2017-2021 Honda Civic Type R Performance Aluminum Radiator is available in a polished finish, and includes our magnetic drain plug to collect any metallic debris in your cooling system, This radiator is covered under the Mishimoto Lifetime Warranty for a worry-free installation.

• 48-percent increase in core volume
• 102-percent increase in fin surface area
• Features a 1.57-in thick, efficiently brazed aluminum core

Attributes:

• Brand Name: Mishimoto
• GTIN: 00811580037764
• Core Finish: Uncoated
• Core Height: 14.8
• Core Length: 26.7
• Core Material: Aluminum
• Core Row Quantity: 1
• Core Thickness: 1.57
• Down Flow Or Cross Flow Type: Down Flow
• Drain Plug Included: Yes
• Drain Plug Thread Size: M12 - 1.5
• Fluid Capacity: 1.24
• Inlet Diameter: 0
• Inlet Location: Top Left
• Install Difficulty: 3
• Outlet Diameter: 0
• Outlet Location: Bottom Left
• Overall Height: 18.1
• Overall Length: 27.9
• Overall Width: 4
• Radiator Cap Included: No
• SellingPoint01: Direct fit for the 2017-2021 Honda Civic Type R
• SellingPoint02: 48-percent increase in core volume
• SellingPoint03: 102-percent increase in fin surface area
• SellingPoint04: Features a 1.57-in thick, efficiently brazed aluminum core
• SellingPoint05: Full aluminum construction including durable, TIG-welded end tanks
• SellingPoint06: Strutted tubes for maximum durability
• SellingPoint07: Increased fluid capacity for optimal heat dissipation
• SellingPoint08: Efficient temperature regulation for both stock and modified vehicles
• SellingPoint09: Includes Magnetic Drain Plug to capture any metallic debris/fragments in your cooling system
• SellingPoint10: Mishimoto Lifetime Warranty
• SellingPoint11: N/A
• SellingPoint12: N/A
• SellingPoint13: N/A
• SellingPoint14: N/A
• SellingPoint15: N/A
• TechSpec Applications: 2017-2021 Honda Civic Type R
• TechSpec Chassis Codes: FK8
• TechSpec Core Height (in): 14.8
• TechSpec Core Length (in): 26.7
• TechSpec Core Thickness (in): 1.57
• TechSpec DPI: N/A
• TechSpec Drain Plug Thread Size: M12 x 1.5
• TechSpec Engine Codes: K20C1
• TechSpec Fluid Capacity (gal): 1.24
• TechSpec Includes: Aluminum Radiator-- Magnetic Drain Plug--Mishimoto Lifetime Warranty
• TechSpec Inlet (in): N/A
• TechSpec Material: Aluminum
• TechSpec Note: N/A
• TechSpec Outlet (in): N/A
• TechSpec Overall Height (in): 18.1
• TechSpec Overall Length (in): 27.9
• TechSpec Overall Width (in): 4
• TechSpec Rows: 1
• Transmission Oil Cooler Fitting Type: N/A
• Transmission Oil Cooler Included: No

Extended Information:

• Country of Origin: CN
• Emissions : Emissions Compliance Exempt

Packing Information:

• Quantity of Each: 1
• Package UOM: EA
• Dimension: 36.9 x 9 x 24.9 inches
• Weight: 25.6 POUNDS
