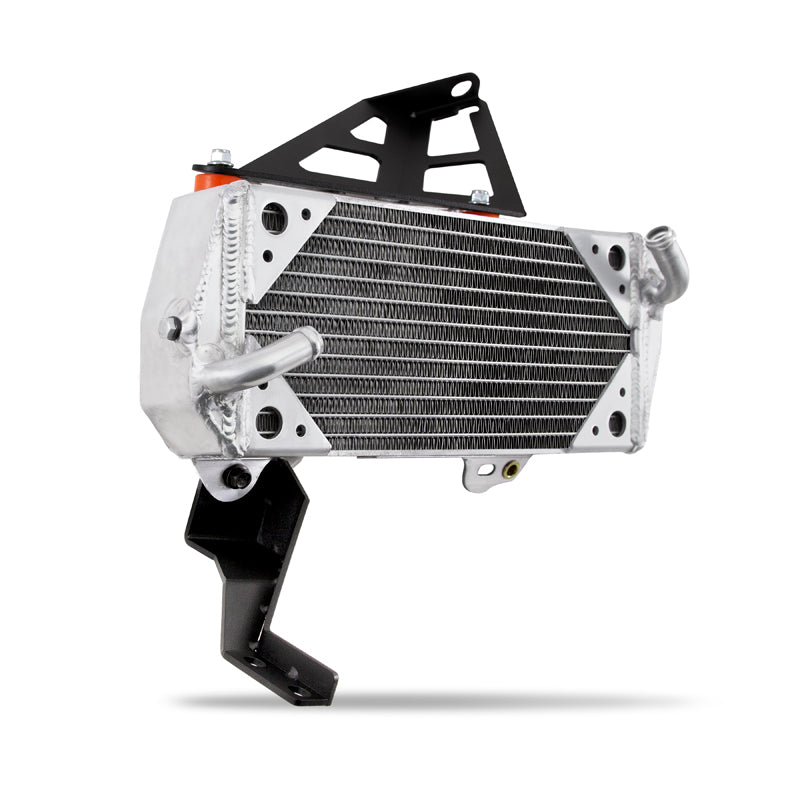

Mishimoto MMRAD-CTR-17S Secondary Race Radiator Fits Honda Civic Type R 2017-2021

It's no secret now that while the 2017-2021 Civic Type R is designed to attack the track, it can?t always stand up to the heat. Nothing is quite as frustrating as having to cut your track time short, or pull off to the shoulder on a canyon carve due to simmering coolant. Luckily, Mishimoto is here to give the FK8's cooling system the backup it needs with our 2017-2021 Honda Civic Type R Secondary Race Radiator kit. Employing the use of one of our smaller, but efficient, radiator designs, we mounted an additional heat exchanger behind the K20C1 with robust steel brackets, tapping in after the Civic?s heater core. Utilizing the air flow generated through the engine bay the Secondary Race Radiator generates additional cooling power for the already overworked stock radiator, keeping you on the track longer. In addition to the supplementary cooling power, the 2017-2021 Honda Civic Type R Secondary Race Radiator also increases the overall coolant capacity. The Mishimoto Lifetime Warranty is also included with the radiator kit to keep your CTR cool and you worry free.

• Incorporates additional radiator into factory cooling system for increased engine cooling
• Utilizes factory aerodynamics for airflow to unique mounting location
• Full aluminum construction with durable, TIG-welded end tanks

Attributes:

• Brand Name: Mishimoto
• GTIN: 00811580035159
• Core Finish: Uncoated
• Core Height: 5.04
• Core Length: 11.03
• Core Material: Aluminum
• Core Row Quantity: 1
• Core Thickness: 0
• Down Flow Or Cross Flow Type: Cross Flow
• Drain Plug Included: Yes
• Drain Plug Thread Size: M12 - 1.5
• Fluid Capacity: 0.17
• Inlet Diameter: 0.63
• Inlet Location: Top Left
• Install Difficulty: 3
• Outlet Diameter: 0.63
• Outlet Location: Bottom Left
• Overall Height: 0
• Overall Length: 0
• Overall Width: 0
• Radiator Cap Included: No
• SellingPoint01: Direct fit for the 2017-2021 Honda Civic Type R
• SellingPoint02: Incorporates additional radiator into factory cooling system for increased engine cooling
• SellingPoint03: Utilizes factory aerodynamics for airflow to unique mounting location
• SellingPoint04: Full aluminum construction with durable, TIG-welded end tanks
• SellingPoint05: Robust mounting bracket design for worry-free installation
• SellingPoint06: Increases coolant capacity
• SellingPoint07: Mishimoto Lifetime Warranty
• SellingPoint08: N/A
• SellingPoint09: N/A
• SellingPoint10: N/A
• SellingPoint11: N/A
• SellingPoint12: N/A
• SellingPoint13: N/A
• SellingPoint14: N/A
• SellingPoint15: N/A
• TechSpec Applications: 2017+ Honda Civic Type R
• TechSpec Chassis Codes: FK8
• TechSpec Core Height (in): 5.04
• TechSpec Core Length (in): 11.03
• TechSpec Core Thickness (in): N/A
• TechSpec DPI: N/A
• TechSpec Drain Plug Thread Size: N/A
• TechSpec Engine Codes: K20C1
• TechSpec Fluid Capacity (gal): 0.17

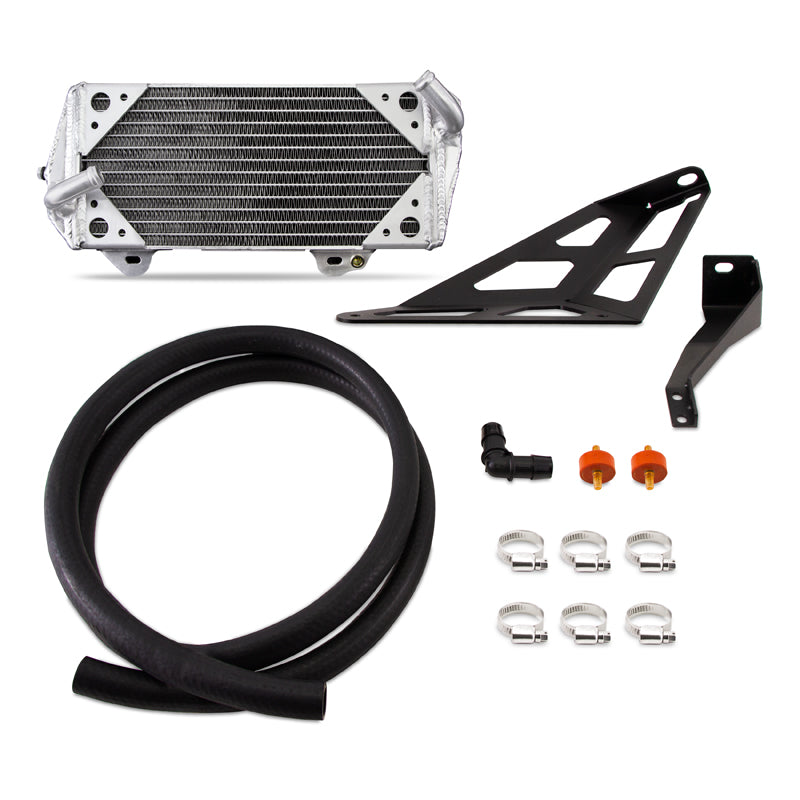

• TechSpec Includes: Secondary Race Radiator-- Mounting Bracket Set-- Heater Hose-- 90 Barbed Hose Adapter--(6) Worm Gear Clamps--Mounting Hardware--Mishimoto Lifetime Warranty
• TechSpec Inlet (in): 0.63
• TechSpec Material: Aluminum
• TechSpec Note: N/A
• TechSpec Outlet (in): 0.63
• TechSpec Overall Height (in): N/A
• TechSpec Overall Length (in): N/A
• TechSpec Overall Width (in): N/A
• TechSpec Rows: 1
• Transmission Oil Cooler Fitting Type: N/A
• Transmission Oil Cooler Included: No

Extended Information:

• Country of Origin: CN
• Emissions : Emissions Compliance Exempt

Packing Information:

• Quantity of Each: 1
• Package UOM: EA
• Dimension: 12.03 x 12.03 x 12.03 inches
• Weight: 7.81 POUNDS
