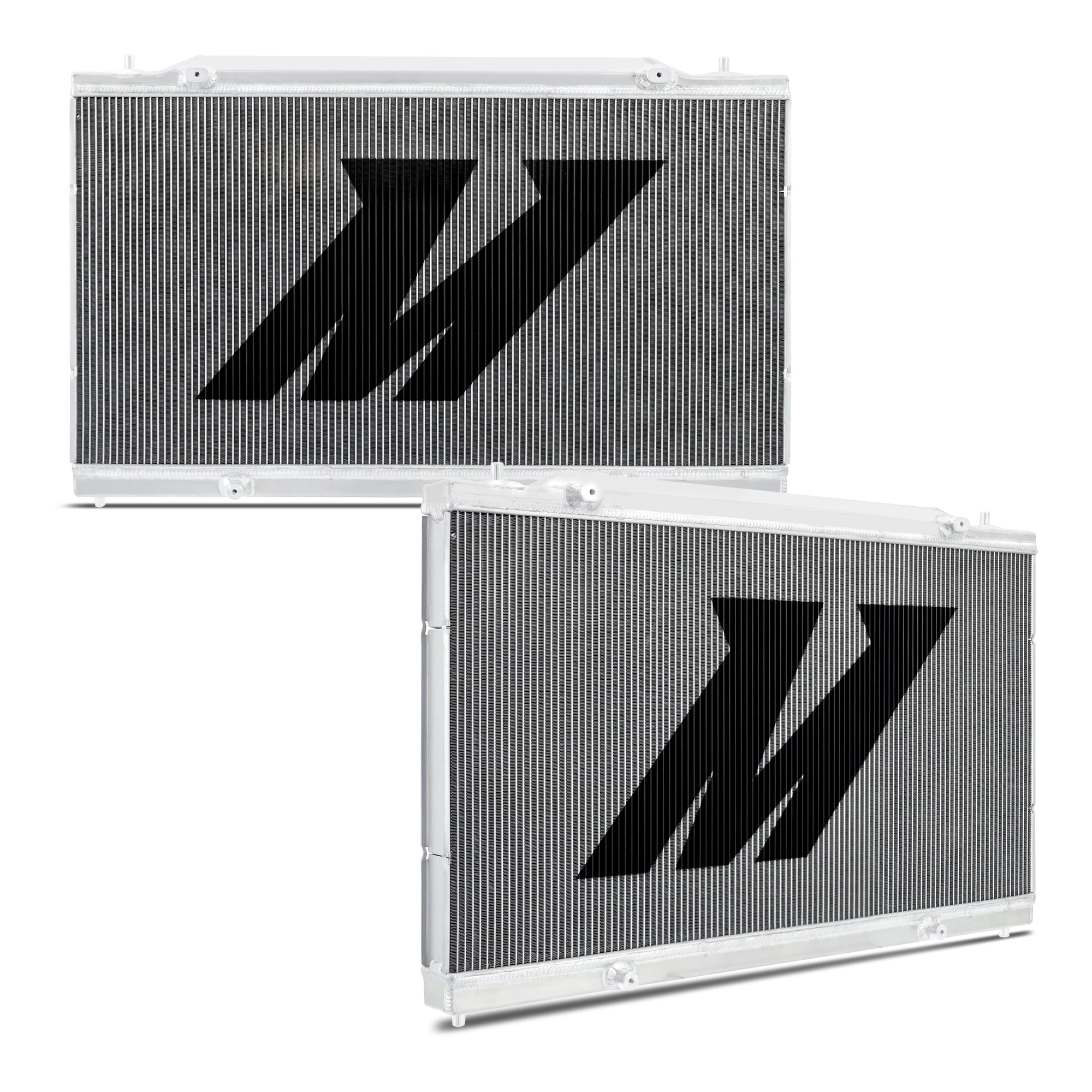

Mishimoto MMRAD-CTR-23 Performance Aluminum Radiator Fits Honda Civic Type R 2023+

Upgrade the cooling system of your 2023+ Honda Civic Type R with the Mishimoto Performance Radiator, engineered to utilize every millimeter possible for maximum efficiency and durability with a 17% heat rejection lowering temps on average between five to ten degrees. The all-aluminum construction features precision TIG-welded end tanks and a robust 40mm thick strutted tube core that's designed to resist chassis flex during intense driving. With a 49% increase in core volume, a 31% larger external fin area, and a 31% boost in internal tube area, this radiator ensures efficient heat transfer and dissipation to keep your engine cool in the most demanding of conditions. -- Designed as a direct-fit upgrade, this radiator offers plug-and-play installation without the need for bumper removal. Radiator include foam seals to fan shroud for optimal airflow and is also fully compatible with stock hoses making it an easy addition to your Civic. The included magnetic drain plug helps protect your cooling system by capturing metallic debris, and this radiator comes backed by the Mishimoto Lifetime Warranty.

• All-aluminum design with precision TIG-welded end tanks
• Plug-and-play installation without need for bumper removal
• Pair with MMHOSE-CTR-23 for a complete cooling system

Attributes:

• Brand Name: Mishimoto
• GTIN: 00840197725283
• Core Finish: Uncoated
• Core Height: 15.8
• Core Length: 29.8
• Core Material: Aluminum
• Core Row Quantity: 1
• Core Thickness: 1.5
• Down Flow Or Cross Flow Type: Down Flow
• Drain Plug Included: Yes
• Drain Plug Thread Size: M12 - 1.5
• Fluid Capacity: 0.87
• Inlet Diameter: 1.26
• Inlet Location: Top Left
• Install Difficulty: 3
• Outlet Diameter: 1.26
• Outlet Location: Bottom Left
• Overall Height: 19.8
• Overall Length: 30.4
• Overall Width: 4.5
• Radiator Cap Included: No
• SellingPoint01: Direct fit for the 2023+ Honda Civic Type R
• SellingPoint02: All-aluminum design with precision TIG-welded end tanks
• SellingPoint03: Plug-and-play installation without need for bumper removal
• SellingPoint04: Pair with MMHOSE-CTR-23 for a complete cooling system
• SellingPoint05: 17% increase in heat rejection, creating on average a 5 – 10 degree drop in outlet temperatures
• SellingPoint06: 49% increase in core volume for improved cooling capacity
• SellingPoint07: 31% increase in external fin area to efficiently transfer heat from coolant
• SellingPoint08: 31% increase in internal tube area for improved heat dissipation
• SellingPoint09: Sturdy 40mm thick strutted tube single row core resists chassis flex
• SellingPoint10: Includes Mishimoto Magnetic Drain Plug to capture metallic debris within cooling system
• SellingPoint11: Included foam seals radiator to fan shroud for optimal airflow
• SellingPoint12: Mishimoto Lifetime Warranty
• SellingPoint13: N/A
• SellingPoint14: N/A
• SellingPoint15: N/A
• TechSpec Applications: Acura Integra Type S 2 L4 2024+--Honda Civic Type R 2 L4 2023+
• TechSpec Chassis Codes: FL5--DE5
• TechSpec Core Height (in): 15.8
• TechSpec Core Length (in): 29.8
• TechSpec Core Thickness (in): 1.5
• TechSpec DPI: 7221
• TechSpec Drain Plug Thread Size: M12 X 1.5
• TechSpec Engine Codes: K20C1
• TechSpec Fluid Capacity (gal): 0.9
• TechSpec Includes: (1) Mishimoto Performance Radiator--Mishimoto Lifetime Warranty
• TechSpec Inlet (in): 1.26
• TechSpec Material: Aluminum
• TechSpec Note: N/A
• TechSpec Outlet (in): 1.26
• TechSpec Overall Height (in): 19.8
• TechSpec Overall Length (in): 30.4
• TechSpec Overall Width (in): 4.5
• TechSpec Rows: 1
• Transmission Oil Cooler Fitting Type: N/A
• Transmission Oil Cooler Included: No

Extended Information:

• Country of Origin: CN
• Emissions : Emissions Compliance Exempt

Packing Information:

• Quantity of Each: 1
• Package UOM: BX
• Dimension: 32 x 7 x 22.5 inches
• Weight: 22.5 POUNDS
