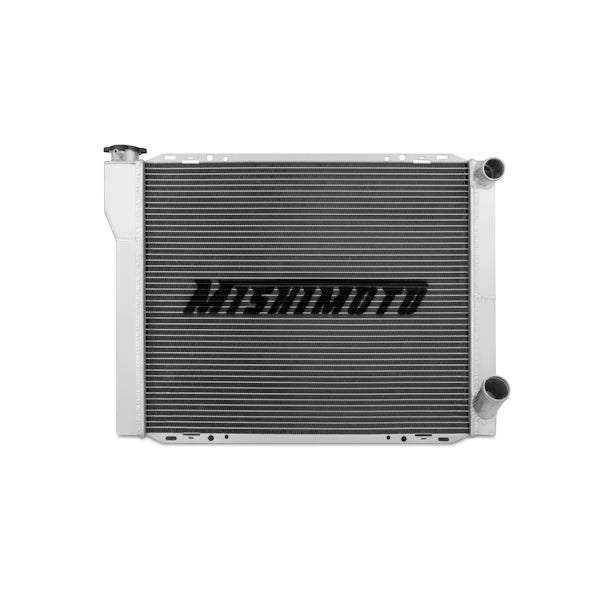

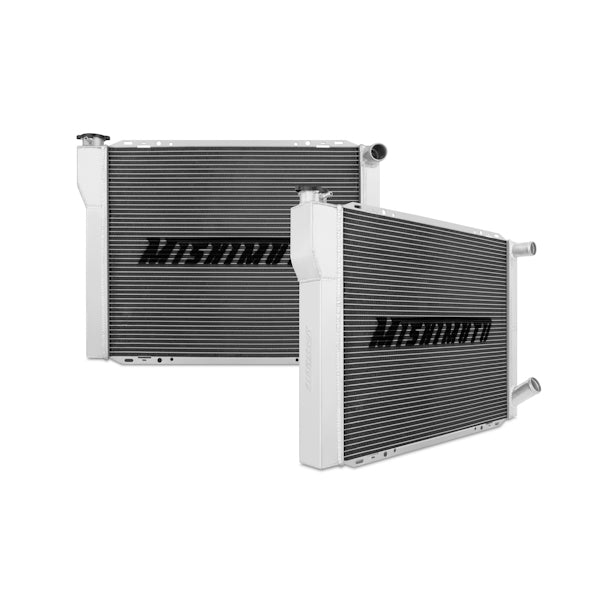

Mishimoto MMRAD-DBP-26 Universal Dual Pass Race Radiator

Mishimoto'sports 27in x 19in x 3in Dual Pass Race Radiator.Perfect for any vehicle competing in motorsports.Made with aircraft quality aluminum and specifically engineered to maximize cooling efficiency, boost engine functions and protect your car from overheating.

• Universal fitment for projects requiring exceptional fluid cooling
• Unique dual pass design is precision engineered to provide substantial heat transfer
• Full aluminum construction with brazed core for optimal durability and pressure tolerance

Attributes:

• Brand Name: Mishimoto
• GTIN: 00748354800364
• Core Finish: Uncoated
• Core Height: 18.43
• Core Length: 22.24
• Core Material: Aluminum
• Core Row Quantity: 2
• Core Thickness: 2.2
• Down Flow Or Cross Flow Type: Cross Flow
• Drain Plug Included: Yes
• Drain Plug Thread Size: M12 - 1.5
• Fluid Capacity: 0
• Inlet Diameter: 1.5
• Inlet Location: Top Right
• Install Difficulty: 3
• Outlet Diameter: 1.77
• Outlet Location: Bottom Right
• Overall Height: 20
• Overall Length: 27
• Overall Width: 3
• Radiator Cap Included: Yes
• SellingPoint01: Universal fitment for projects requiring exceptional fluid cooling
• SellingPoint02: Unique dual pass design is precision engineered to provide substantial heat transfer
• SellingPoint03: Full aluminum construction with brazed core for optimal durability and pressure tolerance
• SellingPoint04: 1.3 Bar High-Pressure Radiator Cap raises the coolant boiling point, providing a safer and more efficient system
• SellingPoint05: Efficient, two-row core measuring 55mm thick, provides substantial fluid capacity and superior fluid temperature reduction
• SellingPoint06: Includes Magnetic Drain Plug to capture any metallic debris/fragments in your cooling system
• SellingPoint07: Mishimoto Lifetime Warranty
• SellingPoint08: N/A
• SellingPoint09: N/A
• SellingPoint10: N/A
• SellingPoint11: N/A
• SellingPoint12: N/A
• SellingPoint13: N/A
• SellingPoint14: N/A
• SellingPoint15: N/A
• TechSpec Applications: N/A
• TechSpec Chassis Codes: N/A
• TechSpec Core Height (in): 18.43
• TechSpec Core Length (in): 22.24
• TechSpec Core Thickness (in): 2.2
• TechSpec DPI: N/A
• TechSpec Drain Plug Thread Size: N/A
• TechSpec Engine Codes: N/A
• TechSpec Fluid Capacity (gal): N/A
• TechSpec Includes: Mishimoto Radiator--Mishimoto Radiator Cap--Mishimoto Lifetime Warranty
• TechSpec Inlet (in): 1.5
• TechSpec Material: Aluminum
• TechSpec Note: This item is for Manual Transmission vehicles. For automatic applications, please purchase optional Mishimoto Universal Transmission Cooler Kit.
• TechSpec Outlet (in): 1.77
• TechSpec Overall Height (in): 20
• TechSpec Overall Length (in): 27
• TechSpec Overall Width (in): 3
• TechSpec Rows: 2
• Transmission Oil Cooler Fitting Type: N/A
• Transmission Oil Cooler Included: No

Extended Information:

• Country of Origin: China
• Emissions : Emissions Compliance Exempt

Packing Information:

• Quantity of Each: 1
• Package UOM: EA
• Dimension: 30.5 x 24.2 x 9.5 inches
• Weight: 16.2 POUNDS
