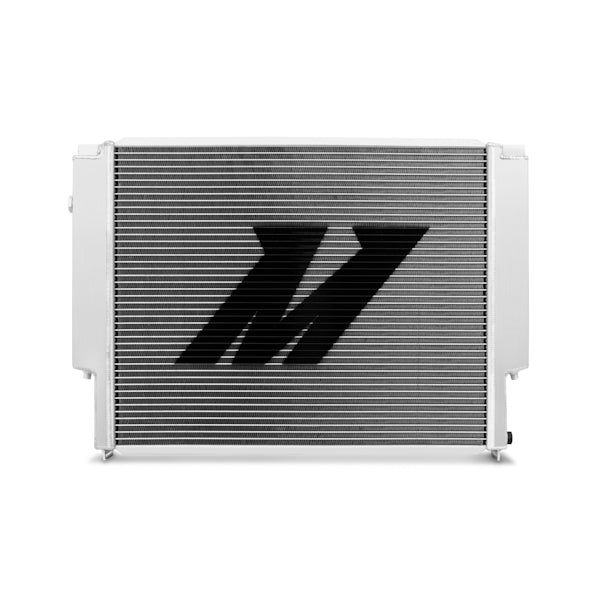

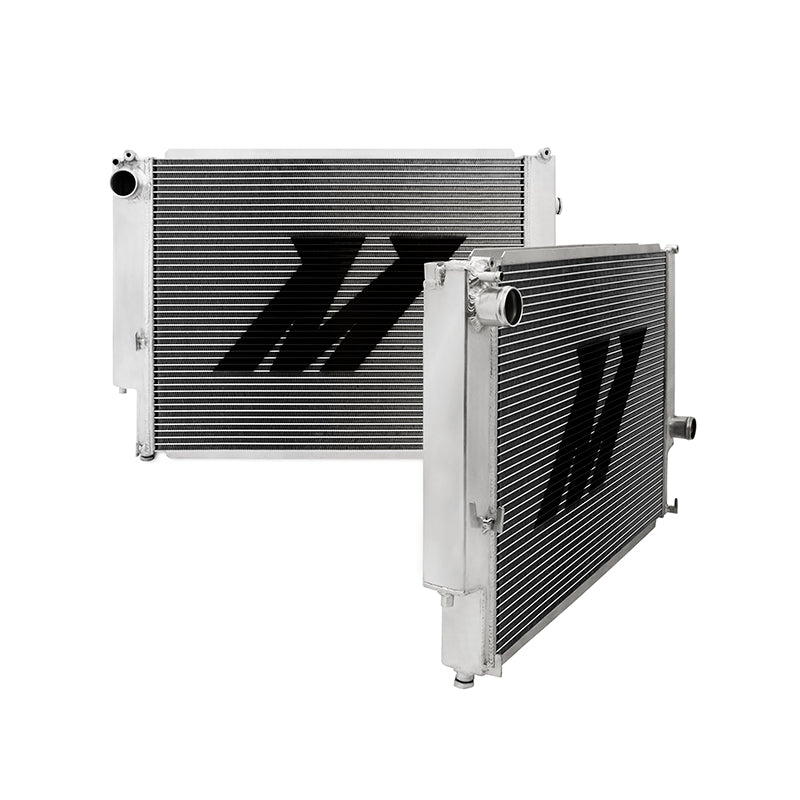

Mishimoto MMRAD-E36-92 Performance Aluminum Radiator Fits BMW E30/E36 1988-1999

An ideal upgrade for the brittle stock BMW radiator, the Mishimoto E30/E36 Performance Aluminum Radiator provides your vehicle with enhanced reliability and improved cooling efficiency. BMWs are known to have frequent cooling-related failures due to the use of numerous plastic components throughout the system. A simple coolant leak can result in overheating, accelerated engine wear, or head gasket failure. Whether you have a daily-driven E36 M3 or an M20 spinning a large turbocharger, this E30 and E36 radiator provides ideal temperatures on and off the track. Most people overlook the importance of installing an upgraded radiator in their vehicle. Along with providing increased coolant capacity, this BMW radiator improves heat dissipation, which is beneficial for both stock and modified applications.----The Mishimoto E30/E36 Performance Aluminum Radiator is manufactured using durable aircraft-quality aluminum end tanks, precision TIG-welded to an efficient brazed aluminum core. The inlet and outlets provide precise leak-free connections, and all factory overflow and temperature sensor ports are present on the Mishimoto E30 and E36 radiator for use with stock sensors and hoses. This BMW radiator also includes a M12 x 1.5 Magnetic Oil Drain Plug with Dowty seal, which effectively removes metal fragments circulating in the cooling system. The Mishimoto BMW Performance Aluminum Radiator incorporates mounting points for the factory external automatic transmission cooler, and it is a direct bolt-on fit for all 6-cylinder E30/E36 models from 1988 to 1991. As with all our BMW parts, this aluminum BMW radiator includes the Mishimoto Lifetime Warranty, ensuring superior product quality and craftsmanship.

• Full aluminum construction with durable, TIG-welded end tanks
• Two-row, 1.57-in thick brazed aluminum core, providing ideal fluid temperatures on the street or track
• Functions with stock mechanical fan and stock shrouding

Attributes:

• Brand Name: Mishimoto
• GTIN: 00748354797411
• Core Finish: Uncoated
• Core Height: 17.13
• Core Length: 21.46
• Core Material: Aluminum
• Core Row Quantity: 2
• Core Thickness: 1.57
• Down Flow Or Cross Flow Type: Cross Flow
• Drain Plug Included: Yes
• Drain Plug Thread Size: M12 - 1.5
• Fluid Capacity: 3.13
• Inlet Diameter: 1.5
• Inlet Location: Top Left
• Install Difficulty: 3
• Outlet Diameter: 1.57
• Outlet Location: Bottom Right
• Overall Height: 18.3
• Overall Length: 26.3
• Overall Width: 2.07
• Radiator Cap Included: No
• SellingPoint01: Direct fit for the 1988-1999 BMW E30/E36 W/ 6 Cylinder engine
• SellingPoint02: Full aluminum construction with durable, TIG-welded end tanks
• SellingPoint03: Two-row, 1.57-in thick brazed aluminum core, providing ideal fluid temperatures on the street or track
• SellingPoint04: Functions with stock mechanical fan and stock shrouding
• SellingPoint05: Includes threaded port for the stock temperature sensor
• SellingPoint06: Perfect for use with stock, modified, forced induction, or swapped vehicles
• SellingPoint07: Includes Magnetic Drain Plug to capture any metallic debris/fragments in your cooling system
• SellingPoint08: Mishimoto Lifetime Warranty
• SellingPoint09: N/A
• SellingPoint10: N/A
• SellingPoint11: N/A
• SellingPoint12: N/A
• SellingPoint13: N/A
• SellingPoint14: N/A
• SellingPoint15: N/A
• TechSpec Applications: 1995-1999 BMW M3--1998-1999 BMW 323IC/IS--1988-1991 BMW 325I--1992-1995 BMW 325I/IC/IS--1996-1998 BMW 328I/IC/IS
• TechSpec Chassis Codes: E30--E36
• TechSpec Core Height (in): 17.13
• TechSpec Core Length (in): 21.46
• TechSpec Core Thickness (in): 1.57
• TechSpec DPI: 9751841
• TechSpec Drain Plug Thread Size: M12 x 1.5
• TechSpec Engine Codes: S52--M52--M50TU--M20B25

• TechSpec Fluid Capacity (gal): 3.2
• TechSpec Includes: Mishimoto Radiator--Magnetic Drain Plug--Mishimoto Lifetime Warranty
• TechSpec Inlet (in): 1.5
• TechSpec Material: N/A
• TechSpec Note: This radiator design was based on USDM BMW Part Number 17111723784. Please ensure proper fitment with your vehicle before installing for Euro-spec imported vehicles.----E36: This item is for Manual Transmission and Automatic Transmission vehicles. It features threaded rivet provisions for the automatic transmission cooler.----E30: This item is for Manual Transmission vehicles. For automatic applications, please purchase optional Mishimoto transmission cooler (P/N: MMTC-U). Stock E30 fan shroud does not fit with this product
• TechSpec Outlet (in): 1.57
• TechSpec Overall Height (in): 18.3
• TechSpec Overall Length (in): 26.3
• TechSpec Overall Width (in): 2.07
• TechSpec Rows: 2
• Transmission Oil Cooler Fitting Type: N/A
• Transmission Oil Cooler Included: No

Extended Information:

• Country of Origin: China
• Emissions : Emissions Compliance Exempt

Packing Information:

• Quantity of Each: 1
• Package UOM: EA
• Dimension: 6.3 x 21.6 x 30.6 inches
• Weight: 18 POUNDS
