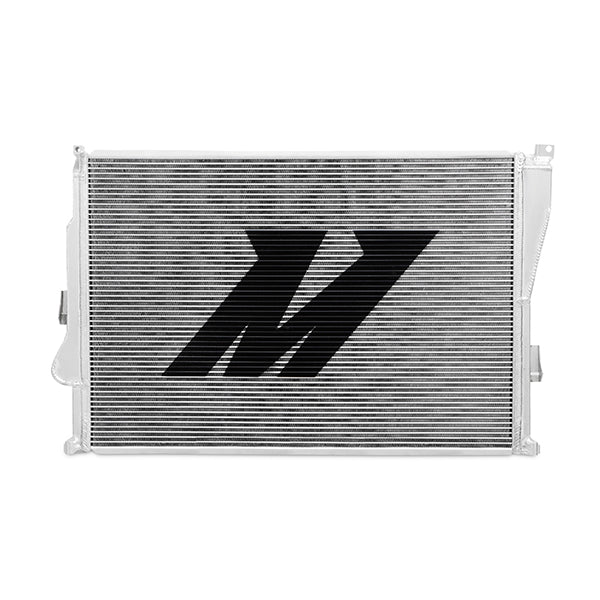

Mishimoto MMRAD-E46-01 Performance Aluminum Radiator Fits BMW E46 M3 2001-2006

The S54 is an incredible feat of engineering. Smooth power delivery, individual throttle bodies, and an 8,000 rpm redline makes for an unforgettable driving experience. As with any BMW, maintenance is key to extending the life of your vehicle and ensuring that you're getting a driving experience rivaled by very few other vehicles on the road. As many of these vehicles see frequent track time, the team at Mishimoto felt a need to develop a performance aluminum radiator that would not only provide improved durability, but also deliver the efficiency needed for track driving. Our team of engineers developed an extremely dense core that provides a greater number of coolant tubes and a very dense fin composition. This allows for more heat transfer contact points which results in greater heat exchange and improved efficiency. Additionally, this dense core provides a 32-percent increase in coolant surface area, a 15-percent increase in air surface area, and a 25-percent increase in coolant capacity. All of these factors will contribute to lower temperatures and greater heat rejection, ideal for those in warm climates and track use. This radiator is designed as a complete bolt-in fit, requiring no modification for fitment with the stock fan and shrouding. Our end tanks are constructed from high quality aluminum TIG-welded to a 100-percent brazed aluminum core. Not only does this aid in heat transfer, but it provides the reliability needed for years of service. This radiator is also applicable with most aftermarket supercharger kits, providing the cooling power needed for power levels above stock. As with all our products, the Mishimoto E46 M3 Performance Aluminum Radiator includes the Mishimoto Lifetime Warranty, ensuring superior product quality and craftsmanship.

• Fully brazed aluminum core with TIG-welded end tanks
• Fits perfectly with stock clutch fan or Mishimoto electric fan shroud
• Precision designed

Attributes:

• Brand Name: Mishimoto
• GTIN: 00748354011210
• Core Finish: Uncoated
• Core Height: 16.14
• Core Length: 22.83
• Core Material: Aluminum
• Core Row Quantity: 2
• Core Thickness: 1.9
• Down Flow Or Cross Flow Type: Cross Flow
• Drain Plug Included: Yes
• Drain Plug Thread Size: M12 - 1.5
• Fluid Capacity: 2.51
• Inlet Diameter: 0
• Inlet Location: Top Left
• Install Difficulty: 3
• Outlet Diameter: 0
• Outlet Location: Bottom Right
• Overall Height: 27.4
• Overall Length: 17
• Overall Width: 4.4
• Radiator Cap Included: No
• SellingPoint01: Direct fit for the 2001-2006 BMW E46 M3
• SellingPoint02: Fully brazed aluminum core with TIG-welded end tanks
• SellingPoint03: Fits perfectly with stock clutch fan or Mishimoto electric fan shroud
• SellingPoint04: Precision designed
• SellingPoint05: CNC-machined quick-disconnect fittings mate perfectly with stock hoses
• SellingPoint06: Track-tested design
• SellingPoint07: 32-percent increase in coolant surface area
• SellingPoint08: 15-percent increase in air surface area
• SellingPoint09: 25-percent increase in coolant capacity
• SellingPoint10: Works with most aftermarket supercharger kits
• SellingPoint11: Includes fan tool for clutch fan removal
• SellingPoint12: 1/8-in NPT port for easy installation of sensors
• SellingPoint13: Mishimoto Lifetime Warranty
• SellingPoint14: N/A
• SellingPoint15: N/A
• TechSpec Applications: 2001-2006 BMW E46 M3
• TechSpec Chassis Codes: E46
• TechSpec Core Height (in): 16.14
• TechSpec Core Length (in): 22.83
• TechSpec Core Thickness (in): 1.9
• TechSpec DPI: N/A
• TechSpec Drain Plug Thread Size: N/A
• TechSpec Engine Codes: S54
• TechSpec Fluid Capacity (gal): 2.51

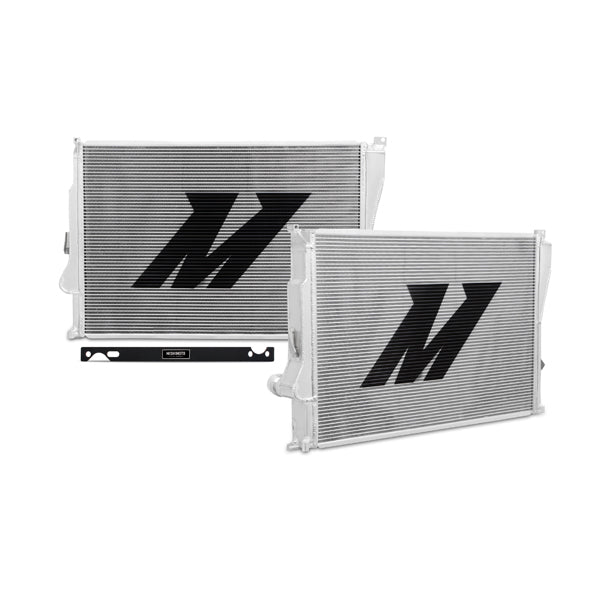

• TechSpec Includes: Mishimoto Radiator--Fan Tool-- Black 1/8-inch NPT Plug--(5) M6 x 1.0 x 16mm Flange Hex Bolts--Mishimoto Lifetime Warranty
• TechSpec Inlet (in): N/A
• TechSpec Material: N/A
• TechSpec Note: N/A
• TechSpec Outlet (in): N/A
• TechSpec Overall Height (in): 27.4
• TechSpec Overall Length (in): 17
• TechSpec Overall Width (in): 4.4
• TechSpec Rows: 2
• Transmission Oil Cooler Fitting Type: N/A
• Transmission Oil Cooler Included: No

Extended Information:

• Country of Origin: CN
• Emissions : Emissions Compliance Exempt

Packing Information:

• Quantity of Each: 1
• Package UOM: EA
• Dimension: 24 x 7.7 x 3.9 inches
• Weight: 18.1 POUNDS
