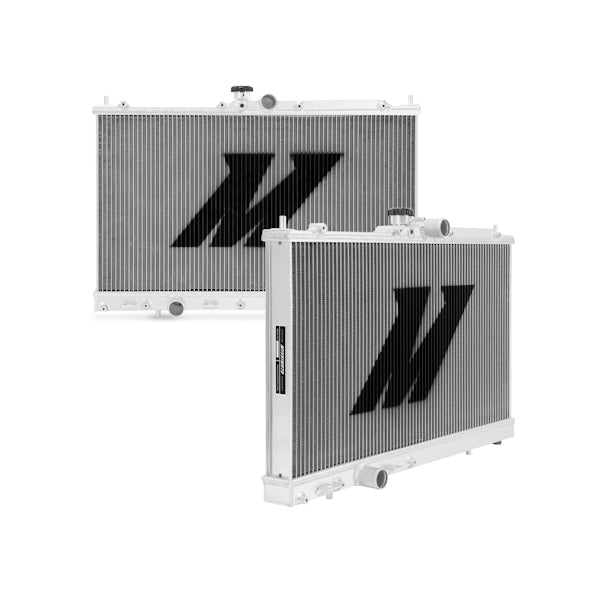

Mishimoto MMRAD-EVO-01 Performance Aluminum Radiator Fits Mitsubishi Lancer Evolution 7/8/9 2001-2007

Having trouble keeping coolant temperatures under control in your stock or modified Evo? Whether you are making passes at the strip or boosting up the local hill climb course, retaining optimal coolant temperatures is key to preserving the life of your engine. The Mishimoto Lancer Evolution Performance Aluminum Radiator is an ideal upgrade for the stock radiator with plastic end tanks. The Mishimoto radiator features full aluminum construction, which provides increased heat and pressure tolerance, improved heat dissipation, increased durability, and improved cooling efficiency. Mishimoto radiators are constructed using a 100-percent brazed aluminum core with robust TIG-welded end tanks, which result in maximum reliability, superior structural rigidity, and consistent performance in even the most demanding environments. This radiator is engineered to retain OEM fitment for the Mitsubishi Evolution 7, 8, and 9 for hassle-free bolt-in fitment. With a core thickness of nearly 2 inches, this radiator dwarfs the factory heat exchanger and is perfect for use with vehicles utilizing upgraded turbochargers or for stock vehicles in need of a reliable replacement. This performance radiator includes a high-pressure 1.3 bar radiator cap, which effectively raises the boiling point of coolant to create a safer and more efficient system. This radiator also includes a magnetic drain plug with dowty seal, which removes circulating metal fragments from the cooling system, providing further engine protection. As with all our products, this radiator includes the Mishimoto Lifetime Warranty, ensuring superior product quality and craftsmanship.

• Full-aluminum construction provides increased heat and pressure tolerance, improved heat dissipation, increased durability, and improved cooling efficiency
• Manufactured with robust TIG-welded end tanks for improved structural rigidity
• Constructed with a 100-percent brazed aluminum core for maximum reliability

Attributes:

• Brand Name: Mishimoto
• GTIN: 00748354797442
• Core Finish: Uncoated
• Core Height: 27.08
• Core Length: 14.76
• Core Material: Aluminum
• Core Row Quantity: 2
• Core Thickness: 1.97
• Down Flow Or Cross Flow Type: Down Flow
• Drain Plug Included: Yes
• Drain Plug Thread Size: M12 - 1.5
• Fluid Capacity: 1.79
• Inlet Diameter: 1.4
• Inlet Location: Top Center
• Install Difficulty: 3
• Outlet Diameter: 1.4
• Outlet Location: Bottom Left
• Overall Height: 28.2
• Overall Length: 19.5
• Overall Width: 2.47
• Radiator Cap Included: Yes
• SellingPoint01: Full-aluminum construction provides increased heat and pressure tolerance, improved heat dissipation, increased durability, and improved cooling efficiency
• SellingPoint02: Manufactured with robust TIG-welded end tanks for improved structural rigidity
• SellingPoint03: Constructed with a 100-percent brazed aluminum core for maximum reliability
• SellingPoint04: Substantial core thickness provides increased coolant capacity, which directly results in improved cooling efficiency and engine temperature reduction
• SellingPoint05: Engineered to original equipment specifications for the 2001-2007 Mitsubishi Lancer Evolution 7/8/9
• SellingPoint06: Mishimoto Lifetime Warranty ensures product quality and craftsmanship
• SellingPoint07: N/A
• SellingPoint08: N/A
• SellingPoint09: N/A
• SellingPoint10: N/A
• SellingPoint11: N/A
• SellingPoint12: N/A
• SellingPoint13: N/A
• SellingPoint14: N/A
• SellingPoint15: N/A
• TechSpec Applications: N/A
• TechSpec Chassis Codes: CT9A
• TechSpec Core Height (in): 27.08
• TechSpec Core Length (in): 14.76
• TechSpec Core Thickness (in): 1.97
• TechSpec DPI: 2448
• TechSpec Drain Plug Thread Size: N/A
• TechSpec Engine Codes: 4G63T
• TechSpec Fluid Capacity (gal): 1.79
• TechSpec Includes: Mishimoto Radiator--Mishimoto Radiator Cap--Magnetic Drain Plug--1/8-inch NPT Plug--Mishimoto Lifetime Warranty
• TechSpec Inlet (in): 1.4
• TechSpec Material: N/A
• TechSpec Note: This item is for Manual Transmission vehicles. For automatic applications, please purchase optional Mishimoto Universal Transmission Cooler Kit.
• TechSpec Outlet (in): 1.4
• TechSpec Overall Height (in): 28.2
• TechSpec Overall Length (in): 19.5
• TechSpec Overall Width (in): 2.47
• TechSpec Rows: 2
• Transmission Oil Cooler Fitting Type: N/A
• Transmission Oil Cooler Included: No

Extended Information:

• Country of Origin: CN
• Emissions : Emissions Compliance Exempt

Packing Information:

• Quantity of Each: 1
• Package UOM: EA
• Dimension: 31.5 x 23.4 x 6.7 inches
• Weight: 15.85 POUNDS
