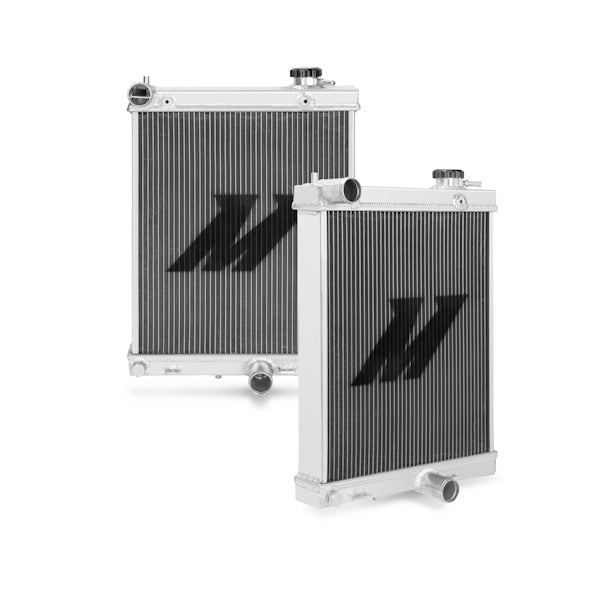

Mishimoto MMRAD-EVO-01H Performance Aluminum Radiator Half-Size Fits Mitsubishi Lancer Evo 2001-2007

Freeing up engine bay space for a front-facing or large turbocharger can be a challenge in the Mitsubishi Lancer Evolution. Keep your high-horsepower Evo cool with the Mishimoto Lancer Evolution 7/8/9 Half-Size Performance Aluminum Radiator. This radiator features full-aluminum construction with precision TIG-welded end tanks for superior heat dissipation and durability. The large 2.05-inch thick brazed aluminum core provides clearance for upgraded turbocharger setups while maintaining optimal coolant temperatures for runs at the drag strip or through the autocross course. This radiator features a unique internal baffle that provides superior fluid dispersion resulting in lower coolant temperatures. Included with this radiator is a Mishimoto Magnetic Oil Drain Plug, M12 x 1.5 with high-quality dowty seal for removal of any metal fragments in your cooling system. The radiator also includes a Mishimoto 1.3 Bar High-Pressure Radiator Cap that effectively raises the boiling point of coolant to create a safer and more efficient system. The Mishimoto Lancer Evolution Half-Size Performance Aluminum Radiator works perfectly with factory coolant hoses or a Mishimoto silicone Radiator Hose Kit and includes an upper radiator stay, making this a hassle-free, bolt-on installation. Installing a capable fan solution is easy with the Mishimoto radiator thanks to the incorporated stock shroud-mounting points. Optionally a slim fan can be installed for improved clearance. This radiator includes the Mishimoto Lifetime Warranty, ensuring superior product quality and craftsmanship.

• Half-size design provides clearance for large twin-scroll and forward-facing turbocharger setups
• All-aluminum construction with TIG-welded end tanks
• 2.05-in thick brazed aluminum core provides optimal cooling and superior durability

Attributes:

• Brand Name: Mishimoto
• GTIN: 00748354011128
• Core Finish: Uncoated
• Core Height: 15
• Core Length: 13.38
• Core Material: Aluminum
• Core Row Quantity: 3
• Core Thickness: 2.05
• Down Flow Or Cross Flow Type: Down Flow
• Drain Plug Included: Yes
• Drain Plug Thread Size: M12 - 1.5
• Fluid Capacity: 1.79
• Inlet Diameter: 1.38
• Inlet Location: Top Left
• Install Difficulty: 3
• Outlet Diameter: 1.38
• Outlet Location: Bottom Center
• Overall Height: 19.4
• Overall Length: 14
• Overall Width: 4.4
• Radiator Cap Included: Yes
• SellingPoint01: Direct fit for the 2001-2007 Mitsubishi Lancer Evolution
• SellingPoint02: Half-size design provides clearance for large twin-scroll and forward-facing turbocharger setups
• SellingPoint03: All-aluminum construction with TIG-welded end tanks
• SellingPoint04: 2.05-in thick brazed aluminum core provides optimal cooling and superior durability
• SellingPoint05: Internal baffle provides exceptional fluid dispersion throughout the core and optimal cooling efficiency
• SellingPoint06: Applicable for use with stock or Mishimoto silicone radiator hoses
• SellingPoint07: Includes mounting points for stock fan shroud
• SellingPoint08: Includes magnetic drain plug with dowty seal, 1.3 bar high-pressure radiator cap, and upper radiator aluminum stay
• SellingPoint09: Mishimoto Lifetime Warranty
• SellingPoint10: N/A
• SellingPoint11: N/A
• SellingPoint12: N/A
• SellingPoint13: N/A
• SellingPoint14: N/A
• SellingPoint15: N/A
• TechSpec Applications: N/A
• TechSpec Chassis Codes: CT9-A
• TechSpec Core Height (in): 15
• TechSpec Core Length (in): 13.38
• TechSpec Core Thickness (in): 2.05
• TechSpec DPI: N/A
• TechSpec Drain Plug Thread Size: M12
• TechSpec Engine Codes: 4G63
• TechSpec Fluid Capacity (gal): 1.79
• TechSpec Includes: Mishimoto Radiator--Mishimoto Radiator Cap--Magnetic Drain Plug--Upper Radiator Aluminum Stay--Mishimoto Lifetime Warranty
• TechSpec Inlet (in): 1.38
• TechSpec Material: N/A
• TechSpec Note: N/A
• TechSpec Outlet (in): 1.38
• TechSpec Overall Height (in): 19.4
• TechSpec Overall Length (in): 14
• TechSpec Overall Width (in): 4.4
• TechSpec Rows: 3
• Transmission Oil Cooler Fitting Type: N/A
• Transmission Oil Cooler Included: No

Extended Information:

• Country of Origin: CN
• Emissions : Emissions Compliance Exempt

Packing Information:

• Quantity of Each: 1
• Package UOM: EA
• Dimension: 21 x 6.75 x 17 inches
• Weight: 5.45 POUNDS
