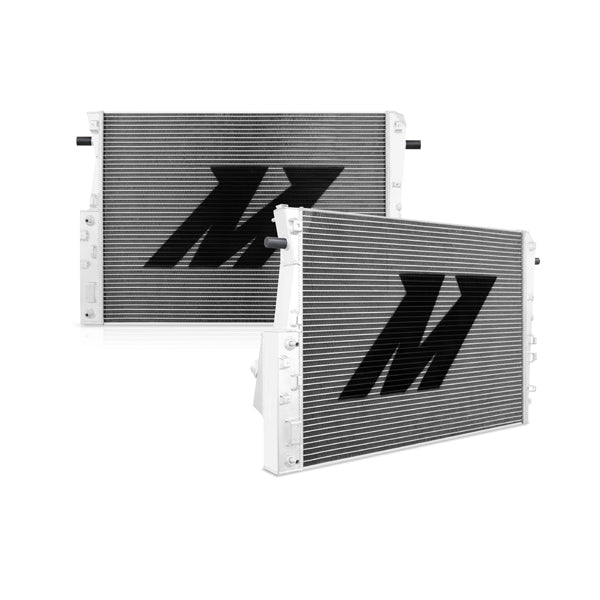

Mishimoto MMRAD-F2D-08V2 Performance Aluminum Radiator Fits Ford 6.4L Powerstroke 2008-2010

The 2008-2010 6.4L Ford Powerstroke is plagued with radiator and cooling issues with no effective solution available—until now. Upgrade your truck with the Mishimoto 6.4L Powerstroke aluminum radiator to put an end to puddles of coolant under your truck. Mishimoto radiators are constructed from high-quality aircraft-grade aluminum with a 100-percent brazed aluminum core. Our 6.4L radiator features strong TIG-welded aluminum end tanks for superior durability and longevity that will keep your Powerstroke on the road and out of the shop. The Mishimoto performance radiator retains factory fitment for an easy installation process and includes a magnetic drain plug to catch any debris in your cooling system. As with all our products, this radiator is protected by the Mishimoto Lifetime Warranty.

• Enhanced second generation product design
• Dual-molded aluminum/rubber mounting pegs to reduce torque transfer to the radiator
• Internally strutted tubes for increased strength against high pressure and temperature

Attributes:

• Brand Name: Mishimoto
• GTIN: 00748354023169
• Core Finish: Uncoated
• Core Height: 37.01
• Core Length: 27.48
• Core Material: Aluminum
• Core Row Quantity: 2
• Core Thickness: 2.76
• Down Flow Or Cross Flow Type: Cross Flow
• Drain Plug Included: Yes
• Drain Plug Thread Size: M12 - 1.5
• Fluid Capacity: 8.36
• Inlet Diameter: 0
• Inlet Location: Top Left
• Install Difficulty: 3
• Outlet Diameter: 0
• Outlet Location: Bottom Right
• Overall Height: 28.7
• Overall Length: 45.7
• Overall Width: 8.9
• Radiator Cap Included: No
• SellingPoint01: Enhanced second generation product design
• SellingPoint02: Direct fit for the 2008-2010 Ford 6.4L Powerstroke
• SellingPoint03: Dual-molded aluminum/rubber mounting pegs to reduce torque transfer to the radiator
• SellingPoint04: Internally strutted tubes for increased strength against high pressure and temperature
• SellingPoint05: Strengthened top and bottom core support plates prevent core torquing and bending
• SellingPoint06: Inlet and outlet have CNC-machined OEM-style quick-disconnects
• SellingPoint07: 100-percent brazed aluminum core
• SellingPoint08: TIG-welded to perfection
• SellingPoint09: Includes magnetic drain plug
• SellingPoint10: US Patent Numbers D717,702, ZL 201430130878.8
• SellingPoint11: Mishimoto Lifetime Warranty
• SellingPoint12: N/A
• SellingPoint13: N/A
• SellingPoint14: N/A
• SellingPoint15: N/A
• TechSpec Applications: 2008-2010 Ford F-250 w/ 6.4L Powerstroke--2008-2010 Ford F-350 w/ 6.4L Powerstroke--2008-2010 Ford F-450 w/ 6.4L Powerstroke--2008-2010 Ford F-550 w/ 6.4L Powerstroke
• TechSpec Chassis Codes: N/A
• TechSpec Core Height (in): 37.01
• TechSpec Core Length (in): 27.48
• TechSpec Core Thickness (in): 2.76
• TechSpec DPI: 13022
• TechSpec Drain Plug Thread Size: M12 x 1.5
• TechSpec Engine Codes: N/A
• TechSpec Fluid Capacity (gal): 8.36
• TechSpec Includes: Mishimoto Radiator--Magnetic Drain Plug w/ Dowty Oil Seal--(2) Rubber Mounting Pegs--(8) M6 x 1.0 x 14mm Bolts--Mishimoto Lifetime Warranty
• TechSpec Inlet (in): N/A
• TechSpec Material: Aluminum
• TechSpec Note: N/A
• TechSpec Outlet (in): N/A
• TechSpec Overall Height (in): 28.7
• TechSpec Overall Length (in): 45.7
• TechSpec Overall Width (in): 8.9
• TechSpec Rows: 2
• Transmission Oil Cooler Fitting Type: N/A
• Transmission Oil Cooler Included: No

Extended Information:

• Country of Origin: CN
• Emissions : Emissions Compliance Exempt

Packing Information:

• Quantity of Each: 1
• Package UOM: EA
• Dimension: 45 x 31.5 x 11.25 inches
• Weight: 63 POUNDS
