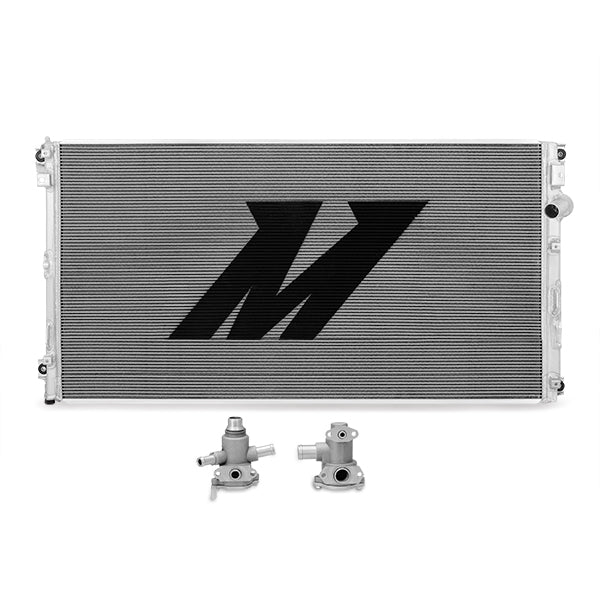

Mishimoto MMRAD-F2D-11S Performance Aluminum Secondary Radiator Fits Ford 6.7L Powerstroke 2011-2016

Upgrade your truck with the Mishimoto 6.7 Powerstroke Aluminum Secondary Radiator to keep your truck on the road and running cool. The 6.7L Powerstroke has two separate cooling systems, with this radiator cooling the secondary system which maintains ideal temperatures for the transmission cooler, EGR cooler, fuel cooler, and most importantly, the liquid-to-air charge air cooler. This 6.7 Powerstroke Secondary Radiator is constructed from high-quality aircraft-grade aluminum with a 100-percent brazed aluminum core 19-percent thicker than factory. During testing, we saw at coolant temperature reduction of at least 7 F and a 7 reduction in charge air temperatures. Our 6.7 Powerstroke aluminum secondary radiator features strong TIG-welded aluminum end tanks for superior durability and longevity that will keep your 6.7 Powerstroke on the road and out of the shop. The Mishimoto Ford 6.7 Powerstroke aluminum radiator retains factory fitment, fitting both the factory and Mishimoto Aluminum Radiators, for an easy installation process. As with all our Powerstroke performance parts, this aluminum radiator is protected by the Mishimoto Lifetime Warranty.

• Reduces coolant temperatures by up to 7F
• Reduces charge air cooler temperatures by up to 6F
• Reduces transmission, fuel and EGR temperatures

Attributes:

• Brand Name: Mishimoto
• GTIN: 00748354028171
• Core Finish: Uncoated
• Core Height: 21
• Core Length: 39.4
• Core Material: Aluminum
• Core Row Quantity: 2
• Core Thickness: 1.96
• Down Flow Or Cross Flow Type: Cross Flow
• Drain Plug Included: Yes
• Drain Plug Thread Size: M12 - 1.5
• Fluid Capacity: 0
• Inlet Diameter: 0
• Inlet Location: Right
• Install Difficulty: 4
• Outlet Diameter: 0
• Outlet Location: Left
• Overall Height: 22
• Overall Length: 48
• Overall Width: 0
• Radiator Cap Included: No
• SellingPoint01: Direct fit for the 2011-2016 6.7L Powerstroke
• SellingPoint02: Reduces coolant temperatures by up to 7F
• SellingPoint03: Reduces charge air cooler temperatures by up to 6F
• SellingPoint04: Reduces transmission, fuel and EGR temperatures
• SellingPoint05: Removable thermostat housings
• SellingPoint06: 27-percent increase in fin area
• SellingPoint07: 19-percent thicker core than factory
• SellingPoint08: 16-percent increase in cooling tube surface area
• SellingPoint09: 100-percent brazed aluminum core
• SellingPoint10: TIG-welded to perfection
• SellingPoint11: Fits with factory and Mishimoto Primary radiators
• SellingPoint12: Included magnetic drain plug captures harmful metal debris to safeguard cooling system performance
• SellingPoint13: Mishimoto Lifetime Warranty
• SellingPoint14: N/A
• SellingPoint15: N/A
• TechSpec Applications: 2011-2016 Ford F-250 w/ 6.7L Powerstroke--2011-2016 Ford F-350 w/ 6.7L Powerstroke--2011-2016 Ford F-450 w/ 6.7L Powerstroke--2011-2016 Ford F-550 w/ 6.7L Powerstroke
• TechSpec Chassis Codes: N/A
• TechSpec Core Height (in): 21
• TechSpec Core Length (in): 39.4
• TechSpec Core Thickness (in): 1.96
• TechSpec DPI: 13339
• TechSpec Drain Plug Thread Size: M12 x 1.5
• TechSpec Engine Codes: N/A
• TechSpec Fluid Capacity (gal): N/A
• TechSpec Includes: Mishimoto Radiator--(2) Cast Thermostat Housings-- Magnetic Drain Plug w/ Dowty Oil Seal--(4) Rubber Bushings & Metal Collars--(3) Hardware Packs--Mishimoto Lifetime Warranty
• TechSpec Inlet (in): N/A
• TechSpec Material: Aluminum
• TechSpec Note: N/A
• TechSpec Outlet (in): N/A
• TechSpec Overall Height (in): 22
• TechSpec Overall Length (in): 48
• TechSpec Overall Width (in): N/A
• TechSpec Rows: 2
• Transmission Oil Cooler Fitting Type: N/A
• Transmission Oil Cooler Included: No

Extended Information:

• Country of Origin: China
• Emissions : Emissions Compliance Exempt

Packing Information:

• Quantity of Each: 1
• Package UOM: EA
• Dimension: 22.93 x 22.93 x 22.93 inches
• Weight: 41.13 POUNDS
