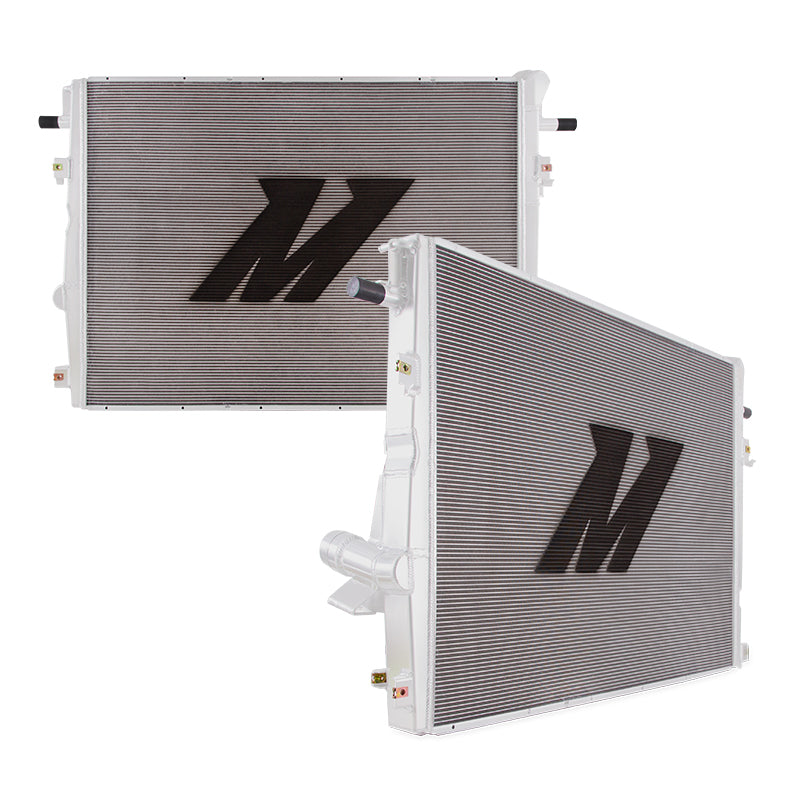

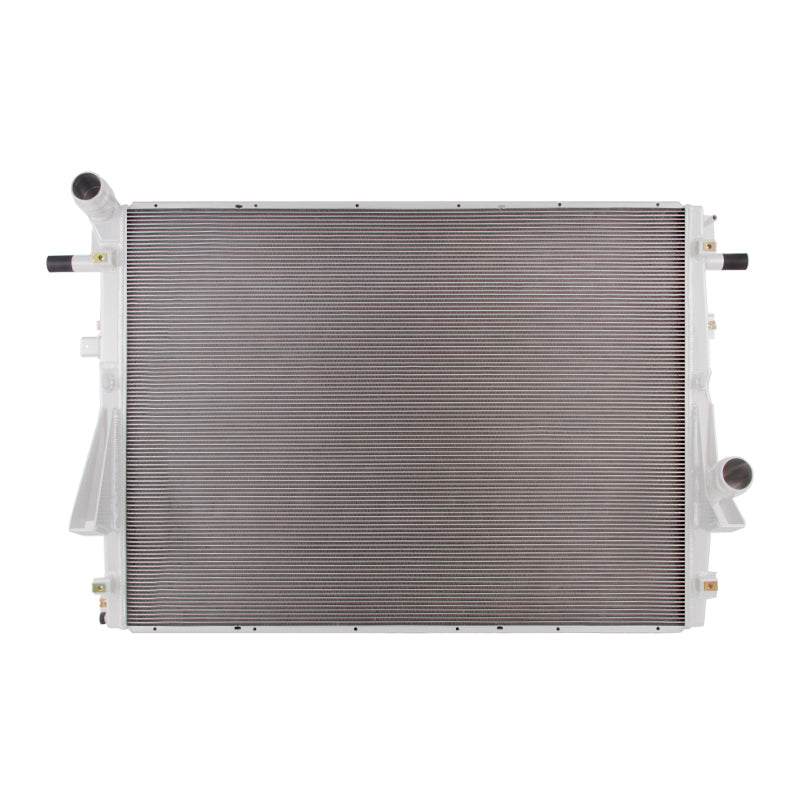

Mishimoto MMRAD-F2D-11V2 Performance Aluminum Radiator Primary Fits Ford 6.7L Powerstroke 2011-2016

The 6.7L Ford Powerstroke is plagued with radiator and cooling issues, with no effective solution available. Upgrade your truck with the Mishimoto 6.7L Powerstroke Aluminum Primary Radiator to put an end to puddles of coolant under your truck. Mishimoto radiators are constructed from high-quality aircraft-grade aluminum with a 100-percent brazed aluminum core. Our 6.7L radiator features strong TIG-welded aluminum end tanks for superior durability and longevity that will keep your Powerstroke on the road and out of the shop. The Mishimoto Ford 6.7L Powerstroke Aluminum Primary Radiator retains factory fitment for an easy installation process and includes a magnetic drain plug to catch any debris in your cooling system. As with all our products, this radiator is protected by the Mishimoto Lifetime Warranty.

• 37-percent increase in coolant capacity
• 20-percent increase in fin area
• 10-percent thicker core than factory

Attributes:

• Brand Name: Mishimoto
• GTIN: 00811580034893
• Core Finish: Uncoated
• Core Height: 38.39
• Core Length: 27.76
• Core Material: Aluminum
• Core Row Quantity: 2
• Core Thickness: 1.89
• Down Flow Or Cross Flow Type: Cross Flow
• Drain Plug Included: Yes
• Drain Plug Thread Size: M12 - 1.5
• Fluid Capacity: 11.61
• Inlet Diameter: 0
• Inlet Location: Top Left
• Install Difficulty: 4
• Outlet Diameter: 0
• Outlet Location: Bottom Right
• Overall Height: 30.2
• Overall Length: 48.9
• Overall Width: 8
• Radiator Cap Included: No
• SellingPoint01: Direct fit for the 6.7L Powerstroke, 2011-2016
• SellingPoint02: 37-percent increase in coolant capacity
• SellingPoint03: 20-percent increase in fin area
• SellingPoint04: 10-percent thicker core than factory
• SellingPoint05: 100-percent brazed aluminum core
• SellingPoint06: CNC-machined, factory-style, quick-disconnect inlet and outlet
• SellingPoint07: TIG-welded to perfection
• SellingPoint08: Included magnetic drain plug captures harmful metal debris to safeguard cooling system performance
• SellingPoint09: Patent numberD717,218
• SellingPoint10: Mishimoto Lifetime Warranty
• SellingPoint11: N/A
• SellingPoint12: N/A
• SellingPoint13: N/A
• SellingPoint14: N/A
• SellingPoint15: N/A
• TechSpec Applications: 2011-2016 Ford F-250 w/ 6.7L Powerstroke--2011-2016 Ford F-350 w/ 6.7L Powerstroke--2011-2016 Ford F-450 w/ 6.7L Powerstroke--2011-2016 Ford F-550 w/ 6.7L Powerstroke
• TechSpec Chassis Codes: N/A
• TechSpec Core Height (in): 38.39
• TechSpec Core Length (in): 27.76
• TechSpec Core Thickness (in): 1.89
• TechSpec DPI: 13230
• TechSpec Drain Plug Thread Size: M12 x 1.5
• TechSpec Engine Codes: N/A
• TechSpec Fluid Capacity (gal): 11.61
• TechSpec Includes: Mishimoto Radiator--Magnetic Drain Plug w/ Dowty Oil Seal--(4) M6 x 1.0 x 16mm Bolts--(12) Black Plastic Tree Clips--Mishimoto Lifetime Warranty
• TechSpec Inlet (in): N/A
• TechSpec Material: Aluminum
• TechSpec Note: N/A
• TechSpec Outlet (in): N/A
• TechSpec Overall Height (in): 30.2
• TechSpec Overall Length (in): 48.9
• TechSpec Overall Width (in): 8
• TechSpec Rows: 2
• Transmission Oil Cooler Fitting Type: N/A
• Transmission Oil Cooler Included: No

Extended Information:

• Country of Origin: CN
• Emissions : Emissions Compliance Exempt

Packing Information:

• Quantity of Each: 1
• Package UOM: EA
• Dimension: 48 x 8.65 x 28.6 inches
• Weight: 34.8 POUNDS
