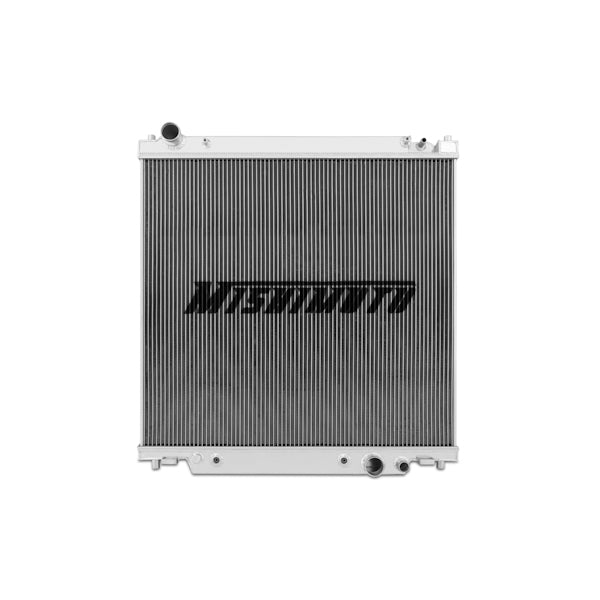

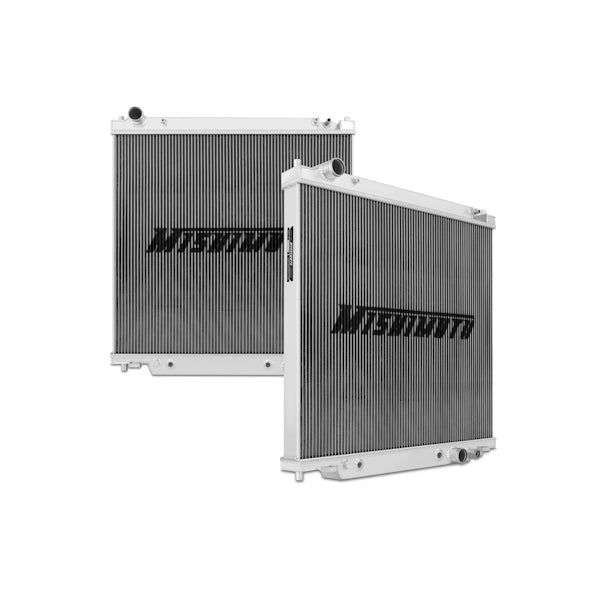

Mishimoto MMRAD-F2D-99 Performance Aluminum Radiator Fits Ford F-Series 5.4/6.8/7.3L 1999-2005

it bolts right up to the stock fan shroud, allowing for easy installation. Have a gas-powered Super Duty or Excursion in your fleet? We've got you covered, too, as this radiator is a direct replacement for the 5.4L and 6.8L Triton models as well! Included with the Mishimoto Powerstroke aluminum radiator is our magnetic drain plug and signature Lifetime Warranty.

• Full aluminum construction with durable, TIG-welded end tanks
• Features a two-row, 2.2-in thick brazed aluminum core, providing ideal fluid temperature regulation
• Increased fluid capacity and superior heat dissipation

Attributes:

• Brand Name: Mishimoto
• GTIN: 00748354810363
• Core Finish: Uncoated
• Core Height: 26.5
• Core Length: 29.4
• Core Material: Aluminum
• Core Row Quantity: 2
• Core Thickness: 2.2
• Down Flow Or Cross Flow Type: Down Flow
• Drain Plug Included: Yes
• Drain Plug Thread Size: M12 - 1.5
• Fluid Capacity: 9.25
• Inlet Diameter: 1.77
• Inlet Location: Top Left
• Install Difficulty: 3
• Outlet Diameter: 1.77
• Outlet Location: Bottom Right
• Overall Height: 30
• Overall Length: 31.7
• Overall Width: 4.7
• Radiator Cap Included: No
• SellingPoint01: Direct fit for 1999-2005 F-250, 350, 450, 550 and Excursion with the 5.4L, 6.8L, and 7.3L
• SellingPoint02: Full aluminum construction with durable, TIG-welded end tanks
• SellingPoint03: Features a two-row, 2.2-in thick brazed aluminum core, providing ideal fluid temperature regulation
• SellingPoint04: Increased fluid capacity and superior heat dissipation
• SellingPoint05: Perfect upgrade to the stock plastic end tank radiator
• SellingPoint06: Ideal for trucks transporting heavy loads, towing, and/or driving in extreme environments
• SellingPoint07: Included magnetic drain plug captures harmful metal debris to safeguard cooling system performance
• SellingPoint08: Mishimoto Lifetime Warranty
• SellingPoint09: N/A
• SellingPoint10: N/A
• SellingPoint11: N/A
• SellingPoint12: N/A
• SellingPoint13: N/A
• SellingPoint14: N/A
• SellingPoint15: N/A
• TechSpec Applications: 1999-2004 Ford F-250 w/ 5.4L/6.8L/7.3L--1999-2004 Ford F-350 w/ 5.4L/6.8L/7.3L--1999-2004 Ford F-450 w/ 6.8L/7.3L--1999-2003 Ford F-550 w/ 6.8L/7.3L--2000-2005 Ford Excursion w/ 5.4L/6.8L/7.3
• TechSpec Chassis Codes: N/A
• TechSpec Core Height (in): 29.84
• TechSpec Core Length (in): 26.46
• TechSpec Core Thickness (in): 2.2
• TechSpec DPI: 2171
• TechSpec Drain Plug Thread Size: M12 x 1.5
• TechSpec Engine Codes: N/A
• TechSpec Fluid Capacity (gal): 9.25
• TechSpec Includes: Mishimoto Radiator-- Magnetic Drain Plug--(4) Transmission Adapters--Mishimoto Lifetime Warranty
• TechSpec Inlet (in): 1.77
• TechSpec Material: Aluminum
• TechSpec Note: The transmission cooler fittings are: 1/2”-20 SAE and 5/8”-18 SAE female flare fittings. This product comes with two adapters of each size to ensure fitment with your vehicle
• TechSpec Outlet (in): 1.77
• TechSpec Overall Height (in): 31.73
• TechSpec Overall Length (in): 30.21
• TechSpec Overall Width (in): 4.69
• TechSpec Rows: 2
• Transmission Oil Cooler Fitting Type: N/A
• Transmission Oil Cooler Included: No

Extended Information:

• Country of Origin: China
• Emissions : Emissions Compliance Exempt

Packing Information:

• Quantity of Each: 1
• Package UOM: EA
• Dimension: 33.4 x 37.8 x 6.8 inches
• Weight: 34 POUNDS
