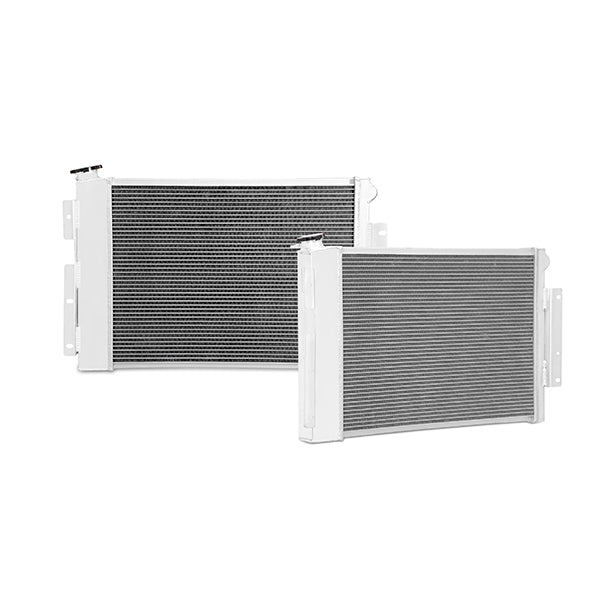

Mishimoto MMRAD-FIR-67X 3-Row Performance Aluminum Radiator Fits Chevrolet Camaro 1967-1969

An ideal upgrade for the brittle stock radiator, the Mishimoto 1967--1969 Pontiac Firebird X-Line Performance Aluminum Radiator provides your car with enhanced reliability and improved cooling efficiency. Whether you want an all-aluminum 1968 Firebird radiator for daily driving or the extra cooling power from a 3-row 1969 Firebird radiator to take to the track, don't overlook the importance of installing an upgraded radiator in your engine. A stock classic car radiator cannot handle the heat that comes along with impressive horsepower. This Firebird radiator is manufactured using durable aircraft-quality aluminum end tanks, precision TIG-welded to an efficient brazed aluminum core. The inlet and outlets provide precise leak-free connections. Each Firebird radiator also includes a magnetic oil drain plug, which effectively removes metal fragments circulating in the cooling system. As with all our products, every classic car radiator includes the Mishimoto Lifetime Warranty, ensuring superior product quality and craftsmanship.

• All-aluminum construction provides increased heat and pressure tolerance, better heat dissipation, increased durability, improved cooling efficiency, and improved structural rigidity
• 3-row core
• Billet aluminum fill neck

Attributes:

• Brand Name: Mishimoto
• GTIN: 00748354016109
• Core Finish: Uncoated
• Core Height: 16.9
• Core Length: 22.8
• Core Material: Aluminum
• Core Row Quantity: 3
• Core Thickness: 2.5
• Down Flow Or Cross Flow Type: Cross Flow
• Drain Plug Included: Yes
• Drain Plug Thread Size: M12 - 1.5
• Fluid Capacity: 6.51
• Inlet Diameter: 1.5
• Inlet Location: Top Left
• Install Difficulty: N/A
• Outlet Diameter: 1.75
• Outlet Location: Bottom Right
• Overall Height: 30.2
• Overall Length: 19.3
• Overall Width: 5
• Radiator Cap Included: Yes
• SellingPoint01: All-aluminum construction provides increased heat and pressure tolerance, better heat dissipation, increased durability, improved cooling efficiency, and improved structural rigidity
• SellingPoint02: 3-row core
• SellingPoint03: Billet aluminum fill neck
• SellingPoint04: Increased coolant capacity directly results in better cooling efficiency and reduced engine temperatures
• SellingPoint05: Brazed aluminum core
• SellingPoint06: Features an internal transmission cooler to provide optimal fluid temperatures for automatic transmissions
• SellingPoint07: Includes magnetic drain plug
• SellingPoint08: Mishimoto Lifetime Warranty
• SellingPoint09: N/A
• SellingPoint10: N/A
• SellingPoint11: N/A
• SellingPoint12: N/A
• SellingPoint13: N/A
• SellingPoint14: N/A
• SellingPoint15: N/A
• TechSpec Applications: 1967-1969 Pontiac Firebird 326ci (5.3L) V8, 350ci (5.7L) V8, 400ci (6.6L) V8
• TechSpec Chassis Codes: N/A
• TechSpec Core Height (in): 16.9
• TechSpec Core Length (in): 22.8
• TechSpec Core Thickness (in): 2.5
• TechSpec DPI: 370
• TechSpec Drain Plug Thread Size: 1/4-18 NPT
• TechSpec Engine Codes: 326ci (5.3L) V8--350ci (5.7L) V8--400ci (6.6L) V8
• TechSpec Fluid Capacity (gal): 6.51
• TechSpec Includes: Mishimoto Radiator--Mishimoto Radiator Cap--Magnetic Drain Plug--Mishimoto Lifetime Warranty
• TechSpec Inlet (in): 1.5
• TechSpec Material: Aluminum
• TechSpec Note: Transmission Cooler Thread Info:--On Radiator: Female 1/4-inch BSPP
• TechSpec Outlet (in): 1.75
• TechSpec Overall Height (in): 30.2
• TechSpec Overall Length (in): 19.3
• TechSpec Overall Width (in): 5
• TechSpec Rows: 3
• Transmission Oil Cooler Fitting Type: N/A
• Transmission Oil Cooler Included: Yes

Extended Information:

• Country of Origin: CN
• Emissions : Emissions Compliance Exempt

Packing Information:

• Quantity of Each: 1
• Package UOM: EA
• Dimension: 17.39 x 17.39 x 17.39 inches
• Weight: 21.66 POUNDS
