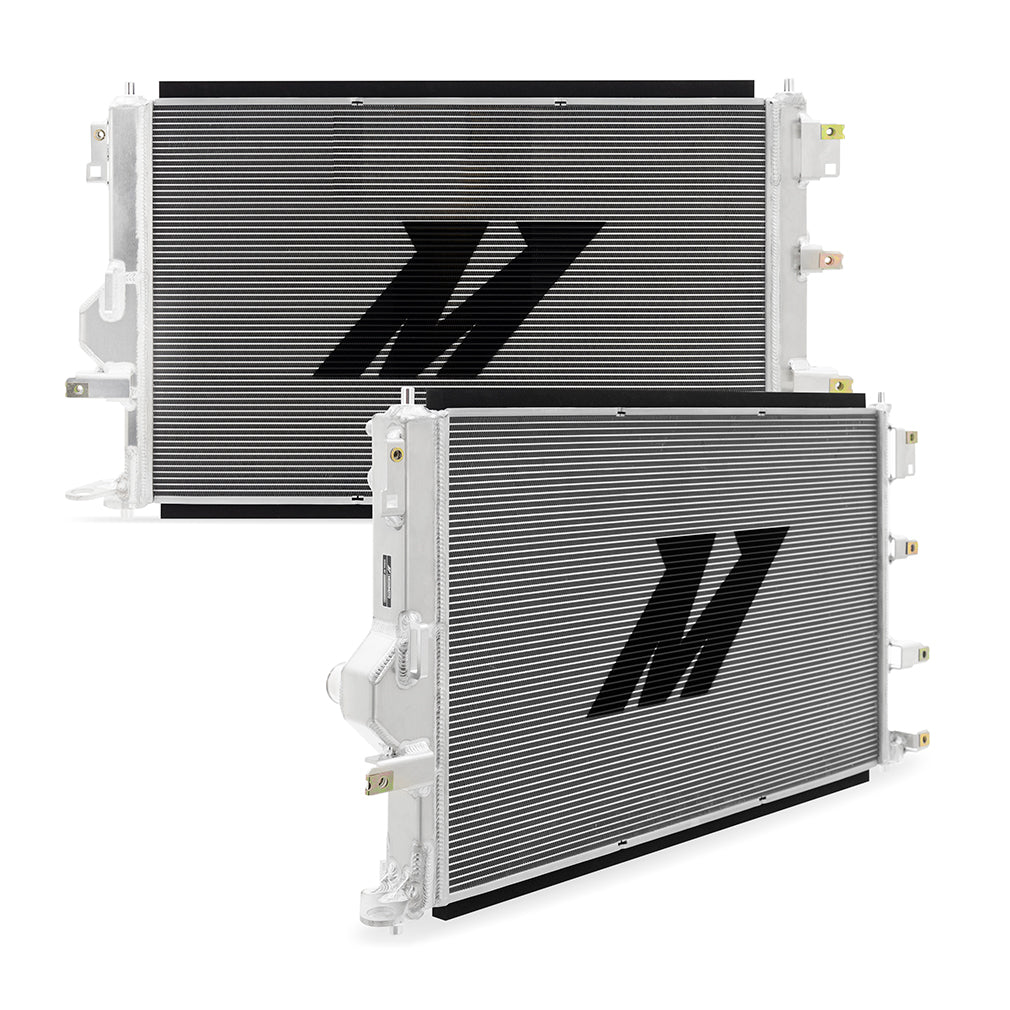

Mishimoto MMRAD-GRC-23 Performance Aluminum Radiator Fits Toyota GR Corolla 2023+

The 2023+ Toyota GR Corolla churns out 300 horsepower from just 3 cylinders and 1.6L of displacement. Each cylinder is running at the limit, and your GRC's cooling system has a lot of work to do to keep up. Long battles on the track or sitting in traffic can easily overwhelm the stock cooling system, and some owners have seen oil temps over 260 degrees on track. The stock oil cooler on the GRC is a liquid-to-liquid design that relies on coolant temperatures to maintain safe oil temps. If your radiator can't keep up, it's only a matter of time before your oil can't either. That's why Mishimoto has developed a performance aluminum radiator to keep every aspect of your GR Corolla's engine cool.----This all-aluminum radiator replaces the stock plastic end tank unit with a core that is 51 percent larger. That increase in core volume means your cooling system can hold more coolant and dissipate more heat, placing less stress on the cooling system overall. Inside the core, we've focused on utilizing the entire cooling area with strutted tubes and louvered fins. Strutted tubes allow us to use a single, wider tube, that has greater effective area than multi-row cores. These strutted tubes also significantly improve core rigidity to help prevent leaks from impacts like potholes or running off track. Louvered external fins circulate air throughout the core to transfer more heat. Finally, the included foam shrouding ensures cool air goes through the core, not just around it.----In addition to performance, we've also thought about durability and serviceability. Our radiator features reinforced intercooler mounts, so you can add a larger intercooler (like Mishimoto's) without worrying about the mounts breaking. To help service your new radiator, we've designed an extended drain port with a slotted drain plug, to keep draining mess-free. Of course, this 2023+ GR Corolla performance radiator is also backed by our Mishimoto Lifetime Warranty for a lifetime of performance.

• 51 percent increase in core volume over stock for improved cooling performance
• Single-row core with strutted tubes utilizes entire core thickness for cooling
• Louvered external fins improve heat transfer

Attributes:

• Brand Name: Mishimoto
• GTIN: 00840197721315
• Core Finish: Uncoated
• Core Height: 15.80
• Core Length: 24.72
• Core Material: Aluminum
• Core Row Quantity: 1
• Core Thickness: 1.57
• Down Flow Or Cross Flow Type: Cross Flow
• Drain Plug Included: Yes
• Drain Plug Thread Size: M12 - 1.5
• Fluid Capacity: 0.66
• Inlet Diameter: 1.38
• Inlet Location: Top Left
• Install Difficulty: 3
• Outlet Diameter: 1.36
• Outlet Location: Bottom Right
• Overall Height: 18.09
• Overall Length: 31.49
• Overall Width: 5.04
• Radiator Cap Included: No
• SellingPoint01: Direct fit for 2023+ Toyota GR Corolla
• SellingPoint02: 51 percent increase in core volume over stock for improved cooling performance
• SellingPoint03: Single-row core with strutted tubes utilizes entire core thickness for cooling
• SellingPoint04: Louvered external fins improve heat transfer
• SellingPoint05: Extruded tubes and full-aluminum construction for improved durability
• SellingPoint06: Reinforced intercooler mounts support future upgrades
• SellingPoint07: Extended drain with slotted plug make maintenance mess-free
• SellingPoint08: Mishimoto Lifetime Warranty
• SellingPoint09: N/A
• SellingPoint10: N/A
• SellingPoint11: N/A
• SellingPoint12: N/A
• SellingPoint13: N/A
• SellingPoint14: N/A
• SellingPoint15: N/A
• TechSpec Applications: Toyota GR Yaris 1.6L L3 2020+--Toyota GR Corolla 1.6L L3 2023+
• TechSpec Chassis Codes: XP210--GZEA14
• TechSpec Core Height (in): 15.80
• TechSpec Core Length (in): 24.72
• TechSpec Core Thickness (in): 1.57
• TechSpec DPI: N/A
• TechSpec Drain Plug Thread Size: M12 x 1.5
• TechSpec Engine Codes: G16E-GTS
• TechSpec Fluid Capacity (gal): 0.66
• TechSpec Includes: (1) Aluminum Radiator--(4) Worm Gear Clamps--(1) Slotted Drain Plug--Mounting Hardware--Mishimoto Lifetime Warranty
• TechSpec Inlet (in): 1.38
• TechSpec Material: Aluminum
• TechSpec Note: N/A
• TechSpec Outlet (in): 1.36
• TechSpec Overall Height (in): 18.09
• TechSpec Overall Length (in): 31.49
• TechSpec Overall Width (in): 5.047
• TechSpec Rows: 1
• Transmission Oil Cooler Fitting Type: N/A
• Transmission Oil Cooler Included: No

Extended Information:

• Country of Origin: CN
• Emissions : Emissions Compliance Exempt

Packing Information:

• Quantity of Each: 1
• Package UOM: BX
• Dimension: 31.6 x 5.9 x 21.4 inches
• Weight: 16.55 POUNDS
