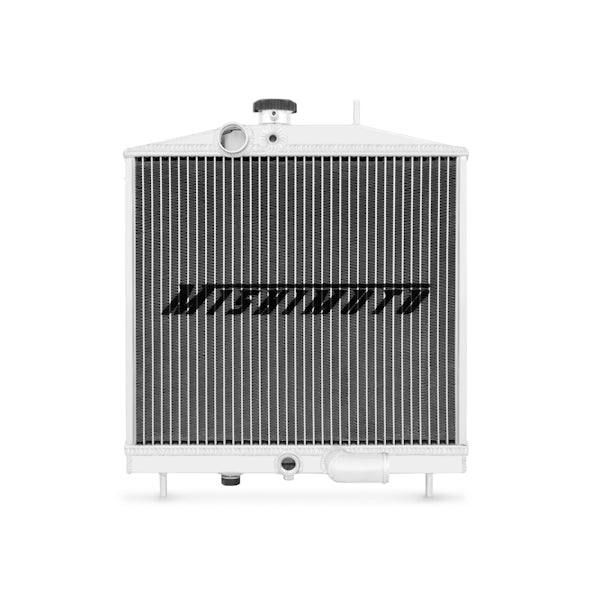

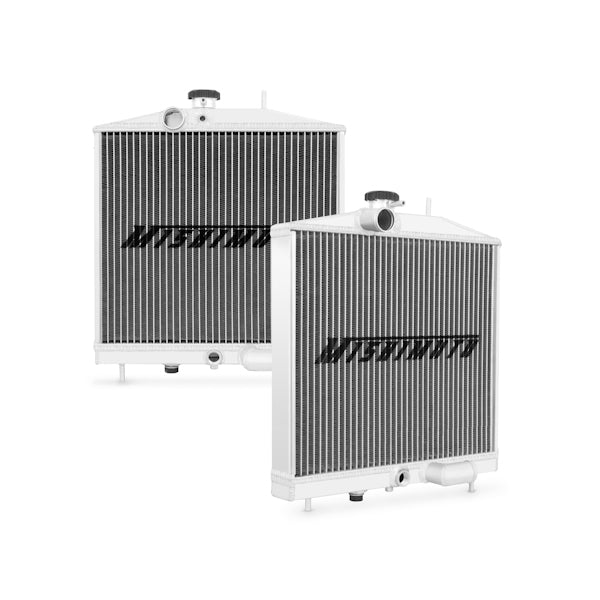

Mishimoto MMRAD-K20-EK Performance Aluminum Radiator Fits Honda Civic EK W/K-Swap 1996-2000

Mishimoto is proud to release a brand new radiator for EK chassis Civics with K-Series engine swaps.Our half size radiator is designed specifically for your swapped vehicle with high performance driving in mind.This radiator is a direct drop in unit that does not require any trimming, drilling or mount alterations.The Mishimoto radiator will simplify a cooling solution for your K-swap and includes ports for the fan switch and coolant temperature sensor. All Mishimoto radiators include a high pressure 1.3 bar Mishimoto radiator cap and a lifetime warranty.

• Designed specifically for the 1996-2000 Honda Civic EK chassis with K-series engine swap
• Provides a bolt-in cooling solution, simplifying the engine swap process
• Full aluminum construction with durable, TIG-welded end tanks

Attributes:

• Brand Name: Mishimoto
• GTIN: 00748666001343
• Core Finish: Uncoated
• Core Height: 12.82
• Core Length: 14.96
• Core Material: Aluminum
• Core Row Quantity: 2
• Core Thickness: 1.57
• Down Flow Or Cross Flow Type: Down Flow
• Drain Plug Included: Yes
• Drain Plug Thread Size: M12 - 1.5
• Fluid Capacity: 0
• Inlet Diameter: 1.25
• Inlet Location: Top Left
• Install Difficulty: 3
• Outlet Diameter: 1.25
• Outlet Location: Bottom Center
• Overall Height: 15.12
• Overall Length: 17.99
• Overall Width: 4.02
• Radiator Cap Included: Yes
• SellingPoint01: Designed specifically for the 1996-2000 Honda Civic EK chassis with K-series engine swap
• SellingPoint02: Provides a bolt-in cooling solution, simplifying the engine swap process
• SellingPoint03: Full aluminum construction with durable, TIG-welded end tanks
• SellingPoint04: Features a two-row, 1.57-in thick, efficient brazed aluminum core
• SellingPoint05: Substantial fluid capacity and optimal heat dissipation
• SellingPoint06: Provides efficient heat exchange for naturally aspirated and forced induction vehicles
• SellingPoint07: Includes threaded fan switch port to function with stock sensor
• SellingPoint08: Includes 1.3 Bar High-Pressure Radiator Cap which effectively raises the boiling point of engine coolant, providing a safer and more efficient system
• SellingPoint09: Included magnetic drain plug captures harmful metal debris to safeguard cooling system performance
• SellingPoint10: Mishimoto Lifetime Warranty
• SellingPoint11: N/A
• SellingPoint12: N/A
• SellingPoint13: N/A
• SellingPoint14: N/A
• SellingPoint15: N/A
• TechSpec Applications: 1996-2000 Honda Civic EK
• TechSpec Chassis Codes: N/A
• TechSpec Core Height (in): 12.82
• TechSpec Core Length (in): 14.96
• TechSpec Core Thickness (in): 1.57
• TechSpec DPI: N/A
• TechSpec Drain Plug Thread Size: M12 x 1.5
• TechSpec Engine Codes: K20
• TechSpec Fluid Capacity (gal): N/A
• TechSpec Includes: Mishimoto Radiator--Mishimoto Radiator Cap--Magnetic Drain Plug w/ Dowty Oil Seal--Mishimoto Lifetime Warranty
• TechSpec Inlet (in): 1.25
• TechSpec Material: Aluminum
• TechSpec Note: N/A
• TechSpec Outlet (in): 1.25
• TechSpec Overall Height (in): 15.12
• TechSpec Overall Length (in): 17.99
• TechSpec Overall Width (in): 4.02
• TechSpec Rows: 2
• Transmission Oil Cooler Fitting Type: N/A
• Transmission Oil Cooler Included: No

Extended Information:

• Country of Origin: China
• Emissions : Emissions Compliance Exempt

Packing Information:

• Quantity of Each: 1
• Package UOM: EA
• Dimension: 21.2 x 6.75 x 17 inches
• Weight: 7.72 POUNDS
