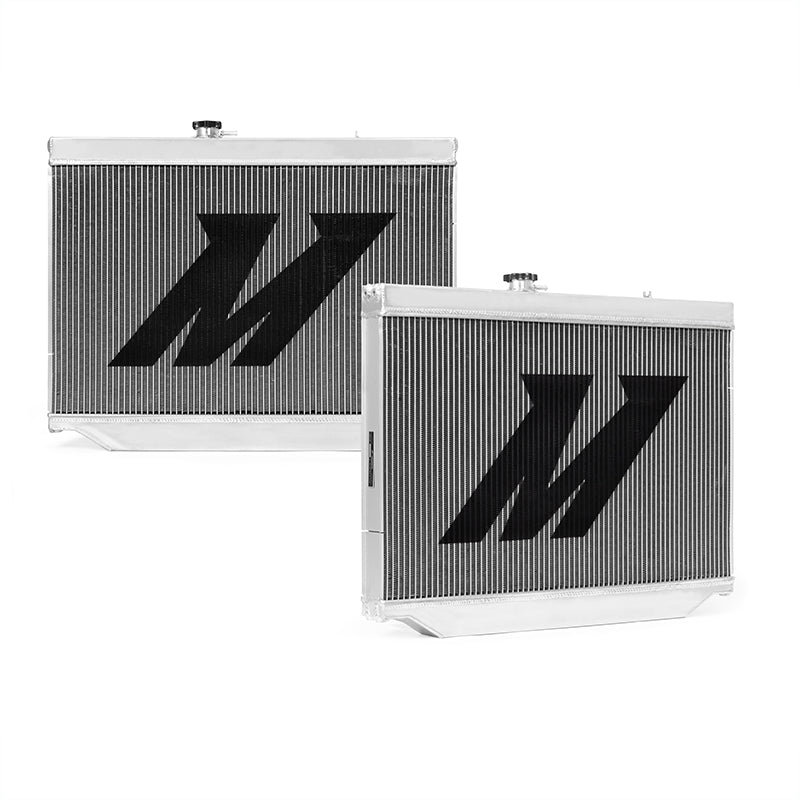

Mishimoto MMRAD-LCR-98 Performance Aluminum Radiator Fits Toyota Land Cruiser J100 (1HZ 1FE) 1998-2007

If you're looking to upgrade your Toyota J100/J105 cooling, look no further! The Mishimoto 1998-2007 Toyota Land Cruiser J100/J105 Performance Aluminium Radiator is an ideal upgrade for the brittle stock radiator. Our radiator boasts a 19% greater core volume and 29.5% greater coolant capacity to improve cooling efficiency. The Mishimoto Toyota Land Cruiser J100/J105 radiator features durable, aircraft-quality aluminium end tanks that are precision TIG-welded to the 56mm-thick core for superior durability. This Land Cruiser radiator also includes a Magnetic Drain Plug to capture metal debris in the cooling system, as well as a 1.3 bar high-pressure radiator cap. As with every Mishimoto aluminium radiator, this 1998-2007 Toyota Land Cruiser J100/J105 radiator includes the Mishimoto Lifetime Warranty, ensuring superior Products quality and craftsmanship for as long as you own the radiator.

• Full aluminum construction including durable, TIG-welded end tanks
• 56mm thick, two-row core for powerful cooling
• 29.5-percent increase in fluid capacity over stock radiator for greater cooling efficiency

Attributes:

• Brand Name: Mishimoto
• GTIN: 00811580036262
• Core Finish: Uncoated
• Core Height: 16.93
• Core Length: 27.64
• Core Material: Aluminum
• Core Row Quantity: 2
• Core Thickness: 2.2
• Down Flow Or Cross Flow Type: Down Flow
• Drain Plug Included: Yes
• Drain Plug Thread Size: M12 - 1.5
• Fluid Capacity: 3.9
• Inlet Diameter: 0
• Inlet Location: Top Left
• Install Difficulty: 3
• Outlet Diameter: 0
• Outlet Location: Bottom Right
• Overall Height: 22.25
• Overall Length: 28
• Overall Width: 6.1
• Radiator Cap Included: Yes
• SellingPoint01: Direct fit for 1998-2007 Toyota Land Cruiser J100/J105 with 4.2L 1HZ or 4.5L 1FZ engines
• SellingPoint02: Full aluminum construction including durable, TIG-welded end tanks
• SellingPoint03: 56mm thick, two-row core for powerful cooling
• SellingPoint04: 29.5-percent increase in fluid capacity over stock radiator for greater cooling efficiency
• SellingPoint05: 19-percent increase in core volume over stock radiator
• SellingPoint06: Includes internal transmission cooler to fit with either manual or automatic transmissions
• SellingPoint07: Includes 1.3 Bar High-Pressure Radiator Cap which effectively raises the boiling point of engine coolant, providing a safer and more efficient system
• SellingPoint08: Mishimoto Lifetime Warranty
• SellingPoint09: N/A
• SellingPoint10: N/A
• SellingPoint11: N/A
• SellingPoint12: N/A
• SellingPoint13: N/A
• SellingPoint14: N/A
• SellingPoint15: N/A
• TechSpec Applications: 1998-2007 Toyota Land Cruiser J100/J105 w/ 1HZ 4.2L Diesel--1998-2007 Toyota Land Cruiser J100/J105 w/ 1FZ 4.5L Petrol
• TechSpec Chassis Codes: J100--J105
• TechSpec Core Height (in): 16.93
• TechSpec Core Length (in): 27.64
• TechSpec Core Thickness (in): 2.2
• TechSpec DPI: N/A
• TechSpec Drain Plug Thread Size: M12 x 1.5
• TechSpec Engine Codes: 1HZ 4.2L Diesel--1FZ 4.5L Petrol
• TechSpec Fluid Capacity (gal): 3.9
• TechSpec Includes: Mishimoto Aluminum Radiator-- Mishimoto Radiator Cap-- Foam Strip--Mounting Hardware--Mishimoto Lifetime Warranty
• TechSpec Inlet (in): N/A
• TechSpec Material: Aluminum
• TechSpec Note: This radiator uses mounting brackets that are separate from the radiator and the vehicle. The Mishimoto radiator is designed to work with the OEM brackets. If you are replacing an aftermarket radiator, you may need to purchase OEM brackets to fit the Mishimoto radiator.
• TechSpec Outlet (in): N/A
• TechSpec Overall Height (in): 22.25
• TechSpec Overall Length (in): 28
• TechSpec Overall Width (in): 6.1
• TechSpec Rows: 2
• Transmission Oil Cooler Fitting Type: N/A
• Transmission Oil Cooler Included: Yes

Extended Information:

• Country of Origin: China
• Emissions : Emissions Compliance Exempt

Packing Information:

• Quantity of Each: 1
• Package UOM: EA
• Dimension: 34.25 x 25.5 x 8.5 inches
• Weight: 24.2 POUNDS
