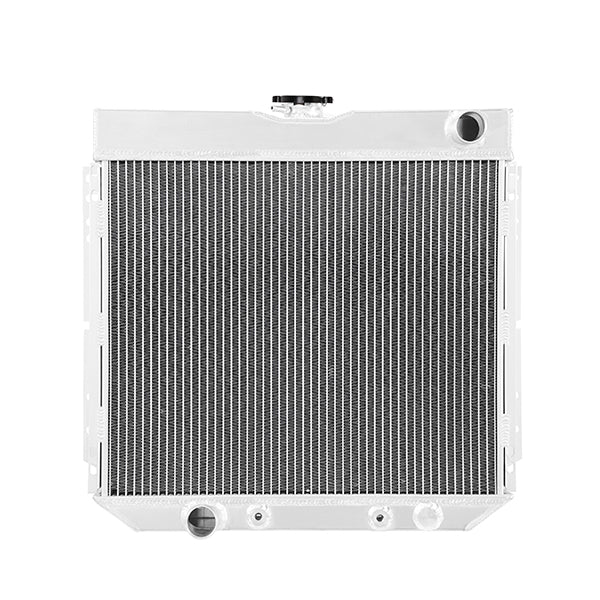

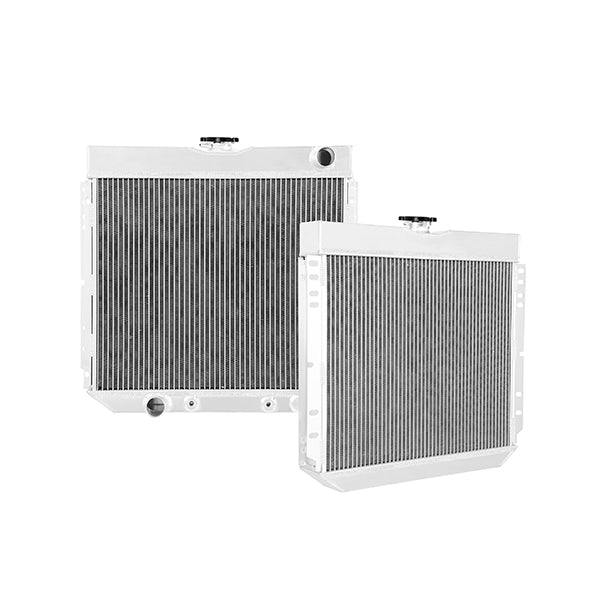

Mishimoto MMRAD-MUS-69X 3-Row Performance Aluminum Radiator Fits Ford Mustang 1969-1970

An ideal upgrade for the brittle stock radiator, the Mishimoto 1969--1970 Ford Mustang X-Line Performance Aluminum Radiator provides your car with enhanced reliability and improved cooling efficiency. Whether you want an all-aluminum 1969 Mustang radiator for daily driving or the extra cooling power from a 3-row 1970 Mustang radiator to take to the track, don't overlook the importance of installing an upgraded radiator in your engine. A stock '69 Mustang radiator or '70 Mustang Radiator cannot handle the heat that comes along with impressive horsepower. This classic 1969/1970 Mustang radiator is manufactured using durable aircraft-quality aluminum end tanks, precision TIG-welded to an efficient brazed aluminum core. The inlet and outlets provide precise leak-free connections. Each classic Mustang radiator also includes a magnetic oil drain plug, which effectively removes metal fragments circulating in the cooling system. As with all our products, every classic Mustang radiator includes the Mishimoto Lifetime Warranty, ensuring superior product quality and craftsmanship.

• All-aluminum construction provides increased heat and pressure tolerance, better heat dissipation, increased durability, improved cooling efficiency, and improved structural rigidity
• 3-row brazed aluminum core
• Billet aluminum fill neck

Attributes:

• Brand Name: Mishimoto
• GTIN: 00748354016093
• Core Finish: Uncoated
• Core Height: 19.6
• Core Length: 16.1
• Core Material: Aluminum
• Core Row Quantity: 3
• Core Thickness: 2.5
• Down Flow Or Cross Flow Type: Down Flow
• Drain Plug Included: Yes
• Drain Plug Thread Size: M12 - 1.5
• Fluid Capacity: 2.78
• Inlet Diameter: 1.5
• Inlet Location: Top Right
• Install Difficulty: N/A
• Outlet Diameter: 1.5
• Outlet Location: Bottom Left
• Overall Height: 22.1
• Overall Length: 21
• Overall Width: 5
• Radiator Cap Included: Yes
• SellingPoint01: All-aluminum construction provides increased heat and pressure tolerance, better heat dissipation, increased durability, improved cooling efficiency, and improved structural rigidity
• SellingPoint02: 3-row brazed aluminum core
• SellingPoint03: Billet aluminum fill neck
• SellingPoint04: Increased coolant capacity directly results in better cooling efficiency and reduced engine temperatures
• SellingPoint05: Includes an internal transmission cooler to ensure optimal fluid temperatures for automatic transmissions
• SellingPoint06: Includes magnetic drain plug
• SellingPoint07: Mishimoto Lifetime Warranty
• SellingPoint08: N/A
• SellingPoint09: N/A
• SellingPoint10: N/A
• SellingPoint11: N/A
• SellingPoint12: N/A
• SellingPoint13: N/A
• SellingPoint14: N/A
• SellingPoint15: N/A
• TechSpec Applications: 1969-1970 Ford Mustang 250ci (4.1L) I6, 302 ci (4.9L) V8, 351ci (5.8L) V8--1969-1970 Mercury Cougar 302 ci (5.0L) V8--1969-1970 Ford Maverick 250ci (4.1L) I6, 302 ci (4.9L) V8--1971-1973 Mercury Comet 250ci (4.1L) I6
• TechSpec Chassis Codes: N/A
• TechSpec Core Height (in): 19.6
• TechSpec Core Length (in): 16.1
• TechSpec Core Thickness (in): 2.5
• TechSpec DPI: 339
• TechSpec Drain Plug Thread Size: 1/4-18 NPT
• TechSpec Engine Codes: 250ci (4.1L) I6--302ci (4.9L) V8--351ci (5.8L) V8
• TechSpec Fluid Capacity (gal): 2.78
• TechSpec Includes: Mishimoto Radiator--Mishimoto Radiator Cap--Magnetic Drain Plug--Mishimoto Lifetime Warranty
• TechSpec Inlet (in): 1.5
• TechSpec Material: Aluminum
• TechSpec Note: N/A
• TechSpec Outlet (in): 1.5
• TechSpec Overall Height (in): 22.1
• TechSpec Overall Length (in): 21
• TechSpec Overall Width (in): 5
• TechSpec Rows: 3
• Transmission Oil Cooler Fitting Type: N/A
• Transmission Oil Cooler Included: Yes

Extended Information:

• Country of Origin: China
• Emissions : 4

Packing Information:

• Quantity of Each: 1
• Package UOM: EA
• Dimension: 25 x 7 x 25 inches
• Weight: 18.46 POUNDS
