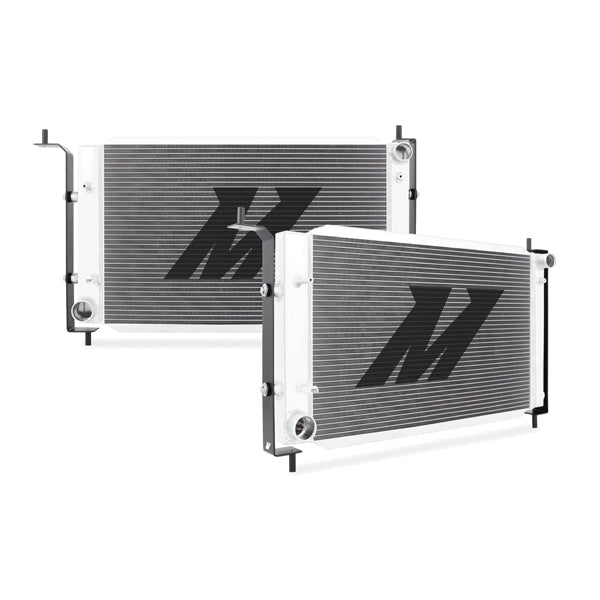

Mishimoto MMRAD-MUS-94B Performance Aluminum Radiator Fits Ford Mustang Manual 1994-1995

1995 Ford Mustang. The high torque generated by the Mustangs revealed a fatal flaw in the OEM design, where the torquing chassis would cause the OEM radiators to separate the endtanks from the cores. Utilizing a patent-pending floating bracket system, this radiator was engineered to eliminate the issues found in the OEM design while simultaneously adding cooling capacity and increasing efficiency. The new Mishimoto Mustang radiator is a direct fit and installs in about two hours with no cutting or trimming required. This aluminum radiator, like all Mishimoto radiators, comes with a 1.3 bar high-pressure radiator cap and is backed by our unparalleled Mishimoto Lifetime Warranty.

• Full aluminum construction including durable, TIG-welded end tanks
• Features a two-row, 1.57-in thick, efficient brazed aluminum core
• Increased fluid capacity and optimal heat dissipation

Attributes:

• Brand Name: Mishimoto
• GTIN: 00748666000506
• Core Finish: Uncoated
• Core Height: 15.28
• Core Length: 24.02
• Core Material: Aluminum
• Core Row Quantity: 2
• Core Thickness: 1.57
• Down Flow Or Cross Flow Type: Cross Flow
• Drain Plug Included: Yes
• Drain Plug Thread Size: M12 - 1.5
• Fluid Capacity: 3.97
• Inlet Diameter: 1.5
• Inlet Location: Top Right
• Install Difficulty: 3
• Outlet Diameter: 1.77
• Outlet Location: Bottom Left
• Overall Height: 34.8
• Overall Length: 20.5
• Overall Width: 4.2
• Radiator Cap Included: Yes
• SellingPoint01: Full aluminum construction including durable, TIG-welded end tanks
• SellingPoint02: Features a two-row, 1.57-in thick, efficient brazed aluminum core
• SellingPoint03: Increased fluid capacity and optimal heat dissipation
• SellingPoint04: Perfect for use on the street or strip
• SellingPoint05: Efficient temperature regulation for both stock and modified vehicles
• SellingPoint06: Utilizes patent-pending radiator stabilizer system which isolates the radiator from the chassis, eliminating the potential of chassis flex from impacting the integrity of the radiator
• SellingPoint07: Features internal transmission fluid cooler which accepts factory cooler lines
• SellingPoint08: Includes 1.3 Bar High-Pressure Radiator Cap which effectively raises the boiling point of engine coolant, providing a safer and more efficient system
• SellingPoint09: Includes Magnetic Drain Plug to capture any debris
• SellingPoint10: Patent No. US D703,126
• SellingPoint11: Mishimoto Lifetime Warranty
• SellingPoint12: N/A
• SellingPoint13: N/A
• SellingPoint14: N/A
• SellingPoint15: N/A
• TechSpec Applications: 1994-1995 Ford Mustang
• TechSpec Chassis Codes: SN-95
• TechSpec Core Height (in): 15.28
• TechSpec Core Length (in): 24.02
• TechSpec Core Thickness (in): 1.57
• TechSpec DPI: 1488
• TechSpec Drain Plug Thread Size: M12 x 1.5
• TechSpec Engine Codes: 302ci (5.0L)--3.8L V6
• TechSpec Fluid Capacity (gal): 3.97
• TechSpec Includes: Mishimoto Radiator--Mishimoto Radiator Cap--Magnetic Drain Plug w/ Dowty Oil Seal--Left & Right Brackets--(4) - Rubber Bushings & Metal Collars--(4) - M8 Flange Head Bolts--(4) - M8 Washers--Mishimoto Lifetime Warranty--
• TechSpec Inlet (in): 1.5
• TechSpec Material: Aluminum
• TechSpec Note: N/A
• TechSpec Outlet (in): 1.77
• TechSpec Overall Height (in): 34.8
• TechSpec Overall Length (in): 20.5
• TechSpec Overall Width (in): 4.2
• TechSpec Rows: 2
• Transmission Oil Cooler Fitting Type: N/A
• Transmission Oil Cooler Included: No

Extended Information:

• Country of Origin: CN
• Emissions : 4

Packing Information:

• Quantity of Each: 1
• Package UOM: EA
• Dimension: 32 x 9 x 24 inches
• Weight: 20 POUNDS
