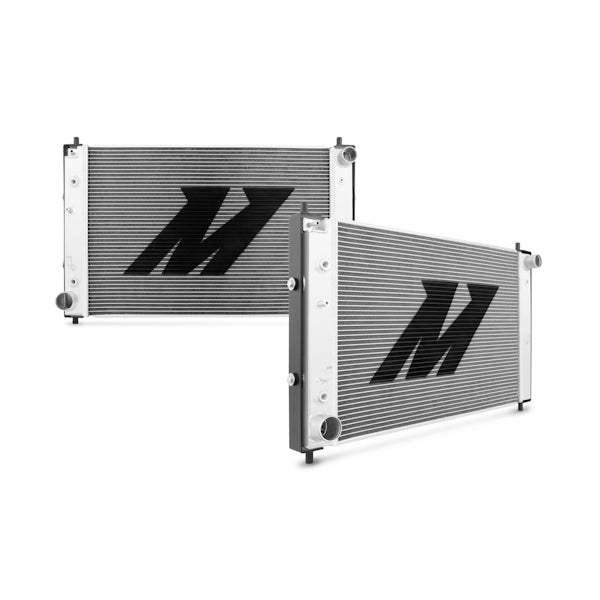

Mishimoto MMRAD-MUS-97BA Performance Aluminum Radiator Fits Ford Mustang GT Automatic 1997-2004

Mishimoto has released a revolutionary new radiator for the automatic 1997-2004 Ford Mustang.The high torque generated by the Mustangs revealed a fatal flaw in the OEM design, where the torquing chassis would cause the OEM radiators to separate the endtanks from the cores.Utilizing a patented floating bracket system, this radiator was engineered to eliminate the issues found in the OEM design while simultaneously adding cooling capacity and increasing efficiency.The new Mishimoto Mustang radiator is a direct fit and installs in about two hours with no cutting or trimming required. All Mishimoto radiators come with a high pressure 1.3 bar Mishimoto radiator cap and an excellent warranty.

• Full aluminum construction including durable, TIG-welded end tanks
• Features a two-row, 1.57-in thick, efficient brazed aluminum core
• Increased fluid capacity and optimal heat dissipation

Attributes:

• Brand Name: Mishimoto
• GTIN: 00748666001329
• Core Finish: Uncoated
• Core Height: 17.24
• Core Length: 24.92
• Core Material: Aluminum
• Core Row Quantity: 2
• Core Thickness: 1.57
• Down Flow Or Cross Flow Type: Cross Flow
• Drain Plug Included: Yes
• Drain Plug Thread Size: M12 - 1.5
• Fluid Capacity: 3.97
• Inlet Diameter: 1.57
• Inlet Location: Top Right
• Install Difficulty: 3
• Outlet Diameter: 1.77
• Outlet Location: Bottom Left
• Overall Height: 31.57
• Overall Length: 19.76
• Overall Width: 4.68
• Radiator Cap Included: No
• SellingPoint01: Direct fit for the 1997-2004 Ford Mustang 4.6L with automatic transmission
• SellingPoint02: Full aluminum construction including durable, TIG-welded end tanks
• SellingPoint03: Features a two-row, 1.57-in thick, efficient brazed aluminum core
• SellingPoint04: Increased fluid capacity and optimal heat dissipation
• SellingPoint05: Perfect for use on the street or strip
• SellingPoint06: Efficient temperature regulation for both stock and mo
• SellingPoint07: Features internal transmission fluid cooler which accepts factory cooler lines
• SellingPoint08: Utilizes patent-pending radiator stabilizer system which isolates the radiator from the chassis, eliminating the potential of chassis flex from impacting the integrity of the radiator
• SellingPoint09: Includes Magnetic Drain Plug to capture any metallic debris/fragments in your cooling system
• SellingPoint10: Patent No. US D703,126
• SellingPoint11: Mishimoto Lifetime Warranty
• SellingPoint12: N/A
• SellingPoint13: N/A
• SellingPoint14: N/A
• SellingPoint15: N/A
• TechSpec Applications: 1997-2001 Ford Mustang Cobra--2002-2004 Ford Mustang SVT Cobra--2001 Ford Mustang Bullitt--2003-2004 Ford Mustang Mach 1
• TechSpec Chassis Codes: SN-95
• TechSpec Core Height (in): 17.24
• TechSpec Core Length (in): 24.92
• TechSpec Core Thickness (in): 1.57
• TechSpec DPI: 2139
• TechSpec Drain Plug Thread Size: M12 x 1.5
• TechSpec Engine Codes: 289ci (4.6L)
• TechSpec Fluid Capacity (gal): 3.97
• TechSpec Includes: Mishimoto Radiator--Magnetic Drain Plug w/ Dowty Oil Seal--Left & Right Brackets--(4) - Rubber Bushings & Metal Collars--(4) - M8 Flange Head Bolts--(4) - M8 Washers--Mishimoto Lifetime Warranty
• TechSpec Inlet (in): 1.57
• TechSpec Material: Aluminum
• TechSpec Note: N/A
• TechSpec Outlet (in): 1.77
• TechSpec Overall Height (in): 31.57
• TechSpec Overall Length (in): 19.76
• TechSpec Overall Width (in): 4.68
• TechSpec Rows: 2
• Transmission Oil Cooler Fitting Type: N/A
• Transmission Oil Cooler Included: Yes

Extended Information:

• Country of Origin: China
• Emissions : Emissions Compliance Exempt

Packing Information:

• Quantity of Each: 1
• Package UOM: EA
• Dimension: 36 x 9 x 24 inches
• Weight: 5 POUNDS
