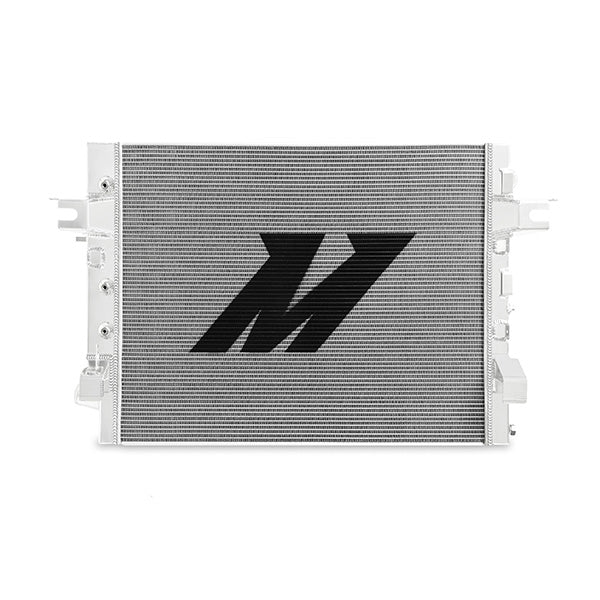

Mishimoto MMRAD-RAM-13 Performance Aluminum Radiator Fits Dodge 6.7L Cummins 2013-2018

The legendary reliability and power of the 6.7L Cummins equipped Dodge Ram has solidified it as one of the most popular trucks in the world for getting work done. But every legend has its weakness, and for the Dodge Ram, the stock radiator is one of them.The plastic end-tanks of the stock Ram radiator are prone to cracking and leaks over time. Add the increased stress and heat created by power-adding modifications and you have a recipe for disaster. But that's where Mishimoto can help.Our new 2013-2018 Ram 2500 / 3500 radiator is the ideal upgrade for any workhorse Cummins powered Ram. With a fully-aluminum, TIG-welded construction, this radiator is built as tough as your truck. A 63-percent increase in coolant capacity, and 41-percent larger surface area mean you can pile on the power and never worry about the heat.As with all of our products, this radiator is backed up by Mishimoto's Lifetime Warranty. Doesn't your Ram deserve a radiator worthy of legend?

• Increases coolant capacity by 63-percent and surface area by 41-percent to maximize cooling
• Durable fully aluminum construction with TIG-welded end tanks and fittings
• Features a 2-in thick, three-row core for efficient cooling under high loads

Attributes:

• Brand Name: Mishimoto
• GTIN: 00811580030598
• Core Finish: Uncoated
• Core Height: 22
• Core Length: 26.75
• Core Material: Aluminum
• Core Row Quantity: 3
• Core Thickness: 1.88
• Down Flow Or Cross Flow Type: Cross Flow
• Drain Plug Included: Yes
• Drain Plug Thread Size: M12 - 1.5
• Fluid Capacity: 7.94
• Inlet Diameter: 1.61
• Inlet Location: Top Left
• Install Difficulty: 5
• Outlet Diameter: 1.61
• Outlet Location: Bottom Right
• Overall Height: 22
• Overall Length: 33.5
• Overall Width: 2.75
• Radiator Cap Included: No
• SellingPoint01: Direct fit for the 2013-2018 Dodge Ram 6.7L Cummins
• SellingPoint02: Increases coolant capacity by 63-percent and surface area by 41-percent to maximize cooling
• SellingPoint03: Durable fully aluminum construction with TIG-welded end tanks and fittings
• SellingPoint04: Features a 2-in thick, three-row core for efficient cooling under high loads
• SellingPoint05: Includes Magnetic Drain Plug to capture any metallic debris/fragments in your cooling system
• SellingPoint06: Mishimoto Lifetime Warranty
• SellingPoint07: N/A
• SellingPoint08: N/A
• SellingPoint09: N/A
• SellingPoint10: N/A
• SellingPoint11: N/A
• SellingPoint12: N/A
• SellingPoint13: N/A
• SellingPoint14: N/A
• SellingPoint15: N/A
• TechSpec Applications: Ram 2500 6.7L L6 2013-2018--Ram 3500 6.7L L6 2013-2018--Ram 4500 6.7L L6 2013-2018--Ram 5500 6.7L L6 2013-2018
• TechSpec Chassis Codes: N/A
• TechSpec Core Height (in): 22
• TechSpec Core Length (in): 26.75
• TechSpec Core Thickness (in): 1.88
• TechSpec DPI: N/A
• TechSpec Drain Plug Thread Size: M12 x 1.5
• TechSpec Engine Codes: N/A
• TechSpec Fluid Capacity (gal): 7.94 .
• TechSpec Includes: Mishimoto Radiator--Magnetic Drain Plug--(2) Transmission Cooler Fittings-- M6 x 1.0 - 16mm Bolt--(3) M6 x 1.0 - 14mm Bolts--(4) M6 x 1.0 - 12mm Bolts--(3) M6 Flat Washers--Mishimoto Lifetime Warranty
• TechSpec Inlet (in): 1.61
• TechSpec Material: Aluminum
• TechSpec Note: N/A
• TechSpec Outlet (in): 1.61
• TechSpec Overall Height (in): 22
• TechSpec Overall Length (in): 33.5
• TechSpec Overall Width (in): 2.75
• TechSpec Rows: 3
• Transmission Oil Cooler Fitting Type: N/A
• Transmission Oil Cooler Included: No

Extended Information:

• Country of Origin: CN
• Emissions : Emissions Compliance Exempt

Packing Information:

• Quantity of Each: 1
• Package UOM: EA
• Dimension: 40 x 28 x 9 inches
• Weight: 32.96 POUNDS
