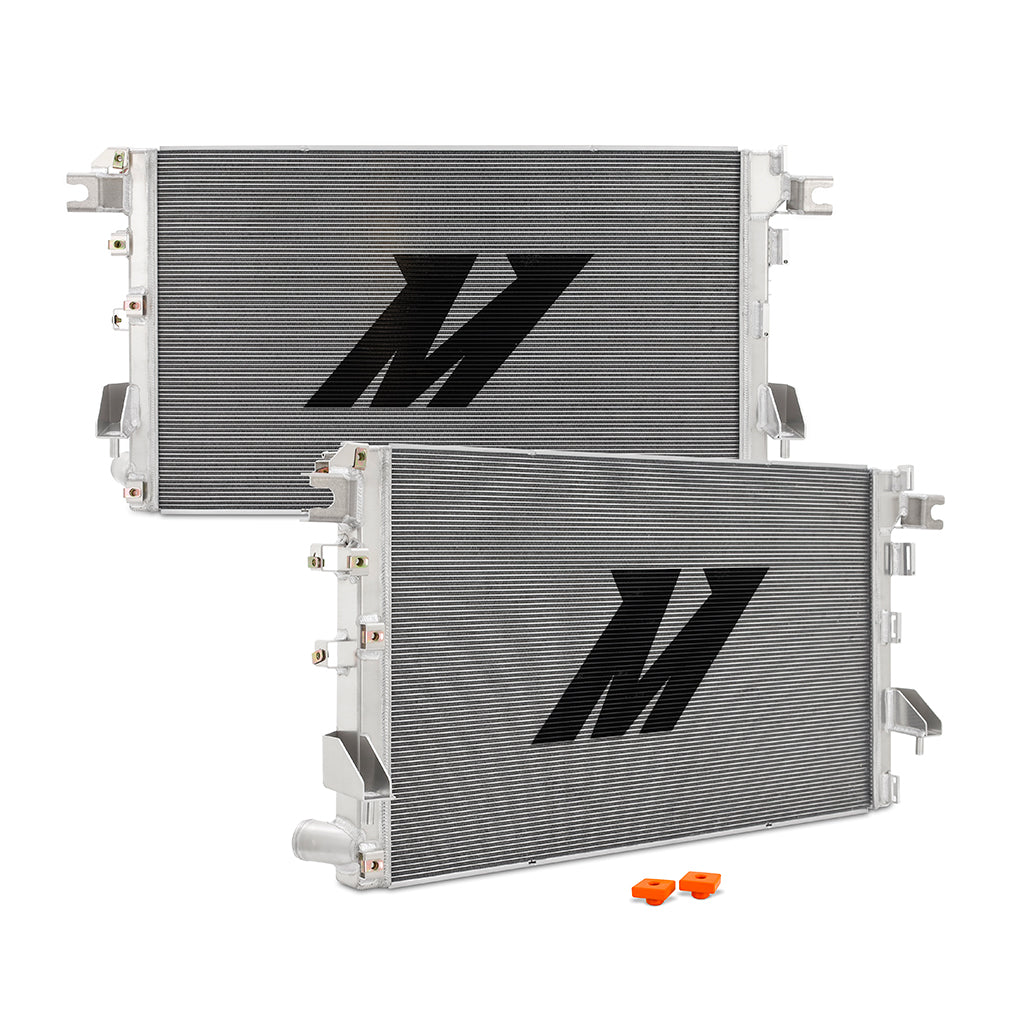

The legendary reliability and power of the 6.7L Cummins equipped Dodge Ram has solidified it as one of the most popular trucks in the world for getting work done. But every legend has its weakness, and for the Dodge Ram, the stock radiator is one of them. The plastic end-tanks of the stock Ram radiator are prone to cracking and leaking over time. Add the increased stress and heat created by hauling heavy workloads, and you have a recipe for disaster. But that's where Mishimoto can help. Our new 2019-2024 Ram 2500/3500 radiator is the ideal upgrade for any workhorse Cummins powered Ram. With a fully aluminum, TIG-welded construction, the Mishimoto radiator is as tough as your truck. A 28% increase in fluid capacity means you can pile on the power and never worry about the heat. As with all our products, this radiator is backed up by Mishimoto's Lifetime Warranty. Doesn't your Ram deserve a radiator worthy of legend?
- Increases fluid capacity by 28% to maximize cooling
- Durable fully aluminum construction with TIG-welded end tanks and fittings
- Includes bushing replacements for old or worn out bushings
Attributes:
-
Brand Name: Mishimoto
-
GTIN: 00840197721186
-
Core Finish: Uncoated
-
Core Height: 20.76
-
Core Length: 33.39
-
Core Material: Aluminum
-
Core Row Quantity: 1
-
Core Thickness: 1.57
-
Down Flow Or Cross Flow Type: Cross Flow
-
Drain Plug Included: No
-
Drain Plug Thread Size: M12 - 1.5
-
Fluid Capacity: 1.2
-
Inlet Diameter: 2
-
Inlet Location: Top Left
-
Install Difficulty: 5
-
Outlet Diameter: 2
-
Outlet Location: Bottom Right
-
Overall Height: 21.48
-
Overall Length: 43.3
-
Overall Width: 7.04
-
Radiator Cap Included: No
-
SellingPoint01: Direct fit for the 2019-2024 Ram 6.7L Cummins
-
SellingPoint02: Increases fluid capacity by 28% to maximize cooling
-
SellingPoint03: Durable fully aluminum construction with TIG-welded end tanks and fittings
-
SellingPoint04: Includes bushing replacements for old or worn out bushings
-
SellingPoint05: Strutted tubes throughout for maximum rigidity and durability
-
SellingPoint06: Louvered fins for improved heat dissipation
-
SellingPoint07: Pair with Mishimoto Silicone Coolant Hose Kit for even greater cooling system protection
-
SellingPoint08: Mishimoto Lifetime Warranty
-
SellingPoint09: N/A
-
SellingPoint10: N/A
-
SellingPoint11: N/A
-
SellingPoint12: N/A
-
SellingPoint13: N/A
-
SellingPoint14: N/A
-
SellingPoint15: N/A
-
TechSpec Applications: Ram 2500 6.7L L6 2019-2024--Ram 3500 6.7L L6 2019-2024--Ram 4500 6.7L L6 2019-2024--Ram 5500 6.7L L6 2019-2024
-
TechSpec Chassis Codes: N/A
-
TechSpec Core Height (in): 20.76
-
TechSpec Core Length (in): 33.39
-
TechSpec Core Thickness (in): 1.57
-
TechSpec DPI: N/A
-
TechSpec Drain Plug Thread Size: N/A
-
TechSpec Engine Codes: N/A
-
TechSpec Fluid Capacity (gal): 1.2
-
TechSpec Includes: (1) Mishimoto Performance Radiator--(2) Replacement Lower Radiator Bushings-- Mishimoto Lifetime Warranty
-
TechSpec Inlet (in): 2
-
TechSpec Material: Aluminum
-
TechSpec Note: Includes Magnetic Drain Plug to capture any metallic debris/fragments in your cooling system--Will not fit HO models. Core fitment is designed for a 34” radiator core; if your vehicle has a 39” wide core, this radiator will not be compatible.
-
TechSpec Outlet (in): 2
-
TechSpec Overall Height (in): 21.48
-
TechSpec Overall Length (in): 43.3
-
TechSpec Overall Width (in): 7.04
-
TechSpec Rows: N/A
-
Transmission Oil Cooler Fitting Type: N/A
-
Transmission Oil Cooler Included: No
Extended Information:
-
Country of Origin: China
-
Emissions : Emissions Compliance Exempt
Packing Information:
-
Quantity of Each: 1
-
Package UOM: BX
-
Dimension: 47.5 x 9 x 24 inches
-
Weight: 36.4 POUNDS
