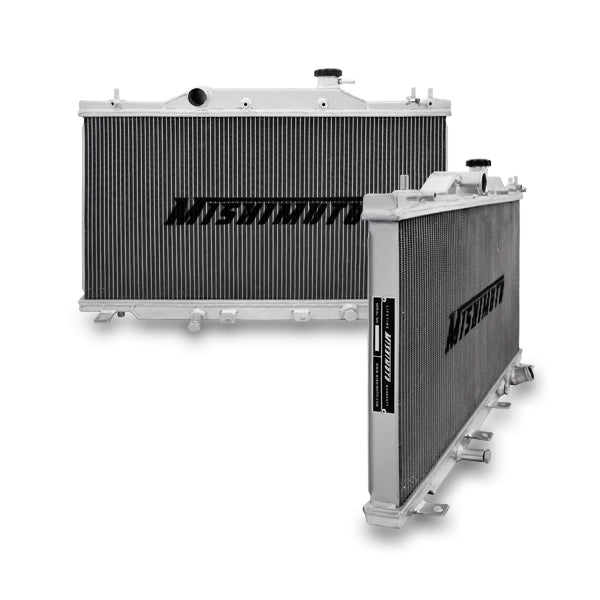

Mishimoto MMRAD-RSX-02 Performance Aluminum Radiator Fits Acura RSX 2002-2006

By replacing your current stock RSX radiator with a top of the line Mishimoto performance aluminum radiator, you will immediately notice a cooler more efficient running engine.All Mishimoto Acura RSX radiators are designed and engineered to maximize cooling efficiency, boost engine functions, and most importantly protect your car from overheating.All Mishimoto performance radiators feature a lightweight dual core, 100-percent brazed aluminum and polished end tanks.The direct OEM fit makes installation effortless and no cutting or modification is required.It is the ideal upgrade to the stock radiator.All Mishimoto radiators come with a high pressure 1.3 bar Mishimoto radiator cap, magnetic drain plug and an excellent warranty.

• 2002-2006 Acura RSX
• Full aluminum construction including durable, TIG-welded end tanks
• Features a two-row, 1.4-in thick, efficient brazed aluminum core

Attributes:

• Brand Name: Mishimoto
• GTIN: 00748354797558
• Core Finish: Uncoated
• Core Height: 13.75
• Core Length: 27.52
• Core Material: Aluminum
• Core Row Quantity: 2
• Core Thickness: 1.4
• Down Flow Or Cross Flow Type: Down Flow
• Drain Plug Included: Yes
• Drain Plug Thread Size: M12 - 1.5
• Fluid Capacity: 1.91
• Inlet Diameter: 1.25
• Inlet Location: Top Left
• Install Difficulty: 3
• Outlet Diameter: 1.25
• Outlet Location: Bottom Right
• Overall Height: 18.8
• Overall Length: 27.6
• Overall Width: 1.9
• Radiator Cap Included: Yes
• SellingPoint01: 2002-2006 Acura RSX
• SellingPoint02: Full aluminum construction including durable, TIG-welded end tanks
• SellingPoint03: Features a two-row, 1.4-in thick, efficient brazed aluminum core
• SellingPoint04: Increased fluid capacity and optimal heat dissipation
• SellingPoint05: Provides efficient temperature reduction for both street and track use
• SellingPoint06: Efficient temperature regulation for both stock and modified vehicles
• SellingPoint07: Includes 1.3 Bar High-Pressure Radiator Cap which effectively raises the boiling point of engine coolant, providing a safer and more efficient system
• SellingPoint08: Includes Magnetic Drain Plug to capture any metallic debris/fragments in your cooling system
• SellingPoint09: Mishimoto Lifetime Warranty
• SellingPoint10: N/A
• SellingPoint11: N/A
• SellingPoint12: N/A
• SellingPoint13: N/A
• SellingPoint14: N/A
• SellingPoint15: N/A
• TechSpec Applications: 2002-2006 Acura RSX Type S
• TechSpec Chassis Codes: DC5
• TechSpec Core Height (in): 13.75
• TechSpec Core Length (in): 27.52
• TechSpec Core Thickness (in): 1.4
• TechSpec DPI: 2412
• TechSpec Drain Plug Thread Size: M12 x 1.5
• TechSpec Engine Codes: K20a3--K20a1--K20z1
• TechSpec Fluid Capacity (gal): 1.91
• TechSpec Includes: Mishimoto Radiator--Mishimoto Radiator Cap--Magnetic Drain Plug--Mishimoto Lifetime Warranty
• TechSpec Inlet (in): 1.25
• TechSpec Material: N/A
• TechSpec Note: This item is for Manual Transmission vehicles. For automatic applications, please purchase optional Mishimoto Universal Transmission Cooler Kit.
• TechSpec Outlet (in): 1.25
• TechSpec Overall Height (in): 18.8
• TechSpec Overall Length (in): 27.6
• TechSpec Overall Width (in): 1.9
• TechSpec Rows: 2
• Transmission Oil Cooler Fitting Type: N/A
• Transmission Oil Cooler Included: No

Extended Information:

• Country of Origin: China
• Emissions : Emissions Compliance Exempt

Packing Information:

• Quantity of Each: 1
• Package UOM: EA
• Dimension: 6.3 x 21.6 x 30.6 inches
• Weight: 18 POUNDS
