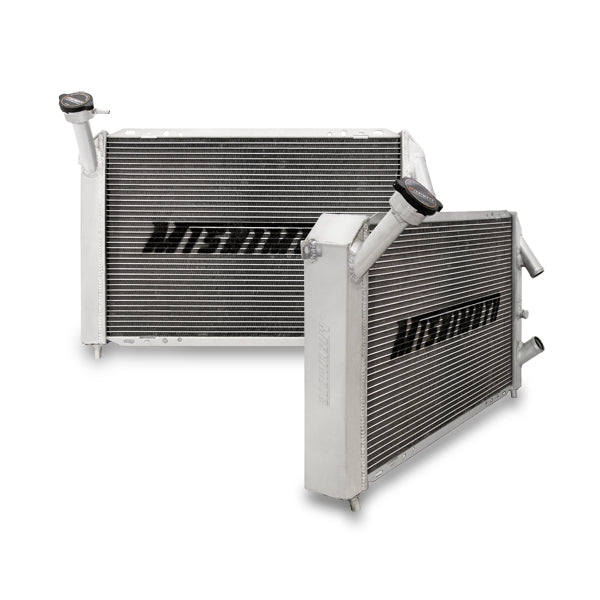

Mishimoto MMRAD-RX-LS Performance Aluminum Radiator Fits LS-Swapped Mazda RX-7 1993-1995

For those with an LS-swapped 1993-1995 Mazda RX-7 looking to enhance the overall performance and lifetime of their engine, the Mishimoto performance aluminum radiator is the ideal cooling system upgrade.With no cutting or modification required for a direct drop-in fitment, installation is easy and effortless.All Mishimoto radiators are designed and engineered to maximize cooling efficiency and most importantly, protect your car from overheating.

• Provides a bolt-in cooling solution which simplifies the engine-swap process
• Full aluminum construction including durable, TIG-welded end tanks
• Features a two-row, 2.17-in thick, efficient brazed aluminum core

Attributes:

• Brand Name: Mishimoto
• GTIN: 00748354804423
• Core Finish: Uncoated
• Core Height: 15.75
• Core Length: 22.2
• Core Material: Aluminum
• Core Row Quantity: 2
• Core Thickness: 2.17
• Down Flow Or Cross Flow Type: Cross Flow
• Drain Plug Included: Yes
• Drain Plug Thread Size: M12 - 1.5
• Fluid Capacity: 0
• Inlet Diameter: 1.38
• Inlet Location: Top Right
• Install Difficulty: 3
• Outlet Diameter: 1.5
• Outlet Location: Bottom Right
• Overall Height: 27.34
• Overall Length: 19.5
• Overall Width: 2.67
• Radiator Cap Included: Yes
• SellingPoint01: Direct fit for the 1993-1995 FD Mazda RX7 with LSX engine swap
• SellingPoint02: Provides a bolt-in cooling solution which simplifies the engine-swap process
• SellingPoint03: Full aluminum construction including durable, TIG-welded end tanks
• SellingPoint04: Features a two-row, 2.17-in thick, efficient brazed aluminum core
• SellingPoint05: Increased fluid capacity and optimal heat dissipation
• SellingPoint06: Provides efficient temperature reduction for street and/or track use
• SellingPoint07: Efficient temperature regulation for both stock and forced induction vehicles
• SellingPoint08: Includes 1.3 Bar High-Pressure Radiator Cap which effectively raises the boiling point of engine coolant, providing a safer and more efficient system
• SellingPoint09: Includes Magnetic Drain Plug to capture any metallic debris/fragments in your cooling system
• SellingPoint10: Mishimoto Lifetime Warranty
• SellingPoint11: N/A
• SellingPoint12: N/A
• SellingPoint13: N/A
• SellingPoint14: N/A
• SellingPoint15: N/A
• TechSpec Applications: N/A
• TechSpec Chassis Codes: FD
• TechSpec Core Height (in): 15.75
• TechSpec Core Length (in): 22.2
• TechSpec Core Thickness (in): 2.17
• TechSpec DPI: 2067
• TechSpec Drain Plug Thread Size: N/A
• TechSpec Engine Codes: LS
• TechSpec Fluid Capacity (gal): N/A
• TechSpec Includes: Mishimoto Radiator--Mishimoto Radiator Cap--Mishimoto Lifetime Warranty
• TechSpec Inlet (in): 1.38
• TechSpec Material: Aluminum
• TechSpec Note: Some modification may be necessary due to differences in chassis construction and vehicle manufacturing tolerances----This item is for Manual Transmission vehicles. For automatic applications, please purchase optional Mishimoto Universal Transmission Cooler Kit.
• TechSpec Outlet (in): 1.5
• TechSpec Overall Height (in): 27.34
• TechSpec Overall Length (in): 19.5
• TechSpec Overall Width (in): 2.67
• TechSpec Rows: 2
• Transmission Oil Cooler Fitting Type: N/A
• Transmission Oil Cooler Included: No

Extended Information:

• Country of Origin: China
• Emissions : Emissions Compliance Exempt

Packing Information:

• Quantity of Each: 1
• Package UOM: EA
• Dimension: 30.6 x 24 x 9.6 inches
• Weight: 22.25 POUNDS
