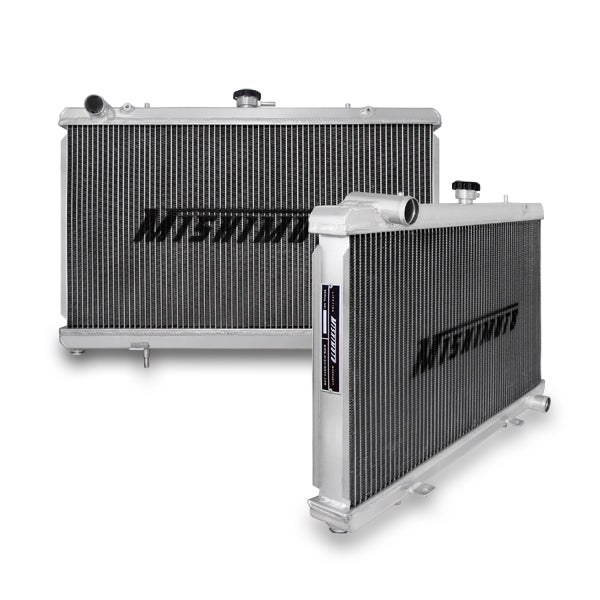

Mishimoto MMRAD-S13-89SR Performance Aluminum Radiator Fits Nissan 240SX SR20 Engine 1989-1994

The Mishimoto performance aluminum radiator for the 1989-1994 Nissan 240SX with SR20 Engine is designed and engineered to maximize cooling efficiency by up to 30-percent, boost engine functions, and most importantly, protect your car from overheating whether you drive your vehicle daily or take it for track runs.The Mishimoto aluminum Nissan 240SX radiator features a lightweight dual core, 100-percent brazed aluminum, and polished end tanks, enhancing the overall performance of your engine.Every Mishimoto aluminum radiator is a direct OEM fit, making installation effortless with no cutting or modification required.This is the ideal upgrade to the stock Nissan 240SX radiator.All Mishimoto radiators come with a high pressure 1.3 bar Mishimoto radiator cap and a great warranty including accident protection.For even more cooling efficiency check out the S13 fan shroud kit.

• Provides a bolt-in cooling solution which simplifies the engine-swap process
• Full aluminum construction including durable, TIG-welded end tanks
• Features a two-row, 1.97-in thick, efficient brazed aluminum core

Attributes:

• Brand Name: Mishimoto
• GTIN: 00748354797572
• Core Finish: Uncoated
• Core Height: 14.13
• Core Length: 25.12
• Core Material: Aluminum
• Core Row Quantity: 2
• Core Thickness: 1.97
• Down Flow Or Cross Flow Type: Down Flow
• Drain Plug Included: Yes
• Drain Plug Thread Size: M10 - 1.25
• Fluid Capacity: 2.09
• Inlet Diameter: 1.25
• Inlet Location: Top Left
• Install Difficulty: 3
• Outlet Diameter: 1.25
• Outlet Location: Bottom Right
• Overall Height: 19.5
• Overall Length: 26.4
• Overall Width: 2.47
• Radiator Cap Included: Yes
• SellingPoint01: Direct fit for the 1989-1994 Nissan 240SX S13 with SR20 engine swap
• SellingPoint02: Provides a bolt-in cooling solution which simplifies the engine-swap process
• SellingPoint03: Full aluminum construction including durable, TIG-welded end tanks
• SellingPoint04: Features a two-row, 1.97-in thick, efficient brazed aluminum core
• SellingPoint05: Increased fluid capacity and optimal heat dissipation
• SellingPoint06: Provides efficient temperature reduction for street and/or track use
• SellingPoint07: Includes 1.3 Bar High-Pressure Radiator Cap which effectively raises the boiling point of engine coolant, providing a safer and more efficient system
• SellingPoint08: Included magnetic drain plug captures harmful metal debris to safeguard cooling system performance
• SellingPoint09: Mishimoto Lifetime Warranty
• SellingPoint10: N/A
• SellingPoint11: N/A
• SellingPoint12: N/A
• SellingPoint13: N/A
• SellingPoint14: N/A
• SellingPoint15: N/A
• TechSpec Applications: 1991-1992 Nissan 240sx LE--1989-1994 Nissan 240sx SE
• TechSpec Chassis Codes: S13
• TechSpec Core Height (in): 14.13
• TechSpec Core Length (in): 25.12
• TechSpec Core Thickness (in): 1.97
• TechSpec DPI: N/A
• TechSpec Drain Plug Thread Size: M10 x 1.25
• TechSpec Engine Codes: SR20DE SR20DET
• TechSpec Fluid Capacity (gal): 2.09
• TechSpec Includes: Mishimoto Radiator--Mishimoto Radiator Cap--Magnetic Drain Plug--Mishimoto Lifetime Warranty
• TechSpec Inlet (in): 1.25
• TechSpec Material: N/A
• TechSpec Note: This item is for Manual Transmission vehicles. For automatic applications, please purchase optional Mishimoto Universal Transmission Cooler Kit.
• TechSpec Outlet (in): 1.25
• TechSpec Overall Height (in): 19.5
• TechSpec Overall Length (in): 26.4
• TechSpec Overall Width (in): 2.47
• TechSpec Rows: 2
• Transmission Oil Cooler Fitting Type: N/A
• Transmission Oil Cooler Included: No

Extended Information:

• Country of Origin: China
• Emissions : Announced

Packing Information:

• Quantity of Each: 1
• Package UOM: EA
• Dimension: 29.3 x 23.5 x 6.3 inches
• Weight: 18.75 POUNDS
