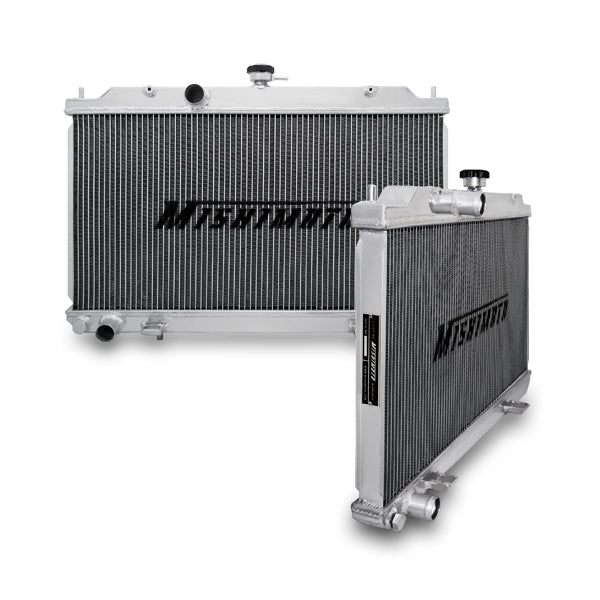

Mishimoto MMRAD-SEN-00 Performance Aluminum Radiator Fits Nissan Sentra SE-R / Spec-V 2002-2006

The Mishimoto performance aluminum radiator for the Nissan Sentra SE-R/Spec-V is designed and engineered to maximize cooling efficiency by up to 30-percent, boost engine functions, and most importantly, protect your car from overheating whether you drive your vehicle daily or take it for track runs.The Mishimoto aluminum 2002-2005 Sentra radiator features a lightweight dual core, 100-percent brazed aluminum, and polished end tanks, enhancing the overall performance of your engine.Every Mishimoto aluminum radiator is a direct OEM fit, making installation effortless with no cutting or modification required.This is the ideal upgrade to the stock Sentra radiator.

• Full aluminum construction including durable, TIG-welded end tanks
• Features a two-row, 1.42-in thick, efficient brazed aluminum core
• Increased fluid capacity and optimal heat dissipation

Attributes:

• Brand Name: Mishimoto
• GTIN: 00748354797763
• Core Finish: Uncoated
• Core Height: 27.08
• Core Length: 14.37
• Core Material: Aluminum
• Core Row Quantity: 2
• Core Thickness: 1.42
• Down Flow Or Cross Flow Type: Down Flow
• Drain Plug Included: Yes
• Drain Plug Thread Size: M12 - 1.5
• Fluid Capacity: 2.03
• Inlet Diameter: 1.4
• Inlet Location: Top Left
• Install Difficulty: 3
• Outlet Diameter: 1.4
• Outlet Location: Bottom Left
• Overall Height: 28
• Overall Length: 19.8
• Overall Width: 1.92
• Radiator Cap Included: Yes
• SellingPoint01: Direct fit for the 2002-2006 Nissan Sentra SE-R/Spec-V
• SellingPoint02: Full aluminum construction including durable, TIG-welded end tanks
• SellingPoint03: Features a two-row, 1.42-in thick, efficient brazed aluminum core
• SellingPoint04: Increased fluid capacity and optimal heat dissipation
• SellingPoint05: Provides efficient temperature reduction for street and/or track use
• SellingPoint06: Includes 1.3 Bar High-Pressure Radiator Cap which effectively raises the boiling point of engine coolant, providing a safer and more efficient system
• SellingPoint07: Includes Magnetic Drain Plug to capture any metallic debris/fragments in your cooling system
• SellingPoint08: Mishimoto Lifetime Warranty
• SellingPoint09: N/A
• SellingPoint10: N/A
• SellingPoint11: N/A
• SellingPoint12: N/A
• SellingPoint13: N/A
• SellingPoint14: N/A
• SellingPoint15: N/A
• TechSpec Applications: 2002-2006 Nissan Sentra SE-R--2002-2006 Nissan Sentra Spec-V--2003 Nissan Sentra Limited Edition
• TechSpec Chassis Codes: B15
• TechSpec Core Height (in): 27.08
• TechSpec Core Length (in): 14.37
• TechSpec Core Thickness (in): 1.42
• TechSpec DPI: 2469
• TechSpec Drain Plug Thread Size: M12 x 1.5
• TechSpec Engine Codes: QR25DE
• TechSpec Fluid Capacity (gal): 2.03
• TechSpec Includes: Mishimoto Radiator--Mishimoto Radiator Cap--Magnetic Drain Plug--Mishimoto Lifetime Warranty
• TechSpec Inlet (in): 1.4
• TechSpec Material: Aluminum
• TechSpec Note: This item is for Manual Transmission vehicles. For automatic applications, please purchase optional Mishimoto Universal Transmission Cooler Kit.
• TechSpec Outlet (in): 1.4
• TechSpec Overall Height (in): 28
• TechSpec Overall Length (in): 19.8
• TechSpec Overall Width (in): 1.92
• TechSpec Rows: 2
• Transmission Oil Cooler Fitting Type: N/A
• Transmission Oil Cooler Included: No

Extended Information:

• Country of Origin: CN
• Emissions : Emissions Compliance Exempt

Packing Information:

• Quantity of Each: 1
• Package UOM: EA
• Dimension: 5 x 22 x 30 inches
• Weight: 10 POUNDS
