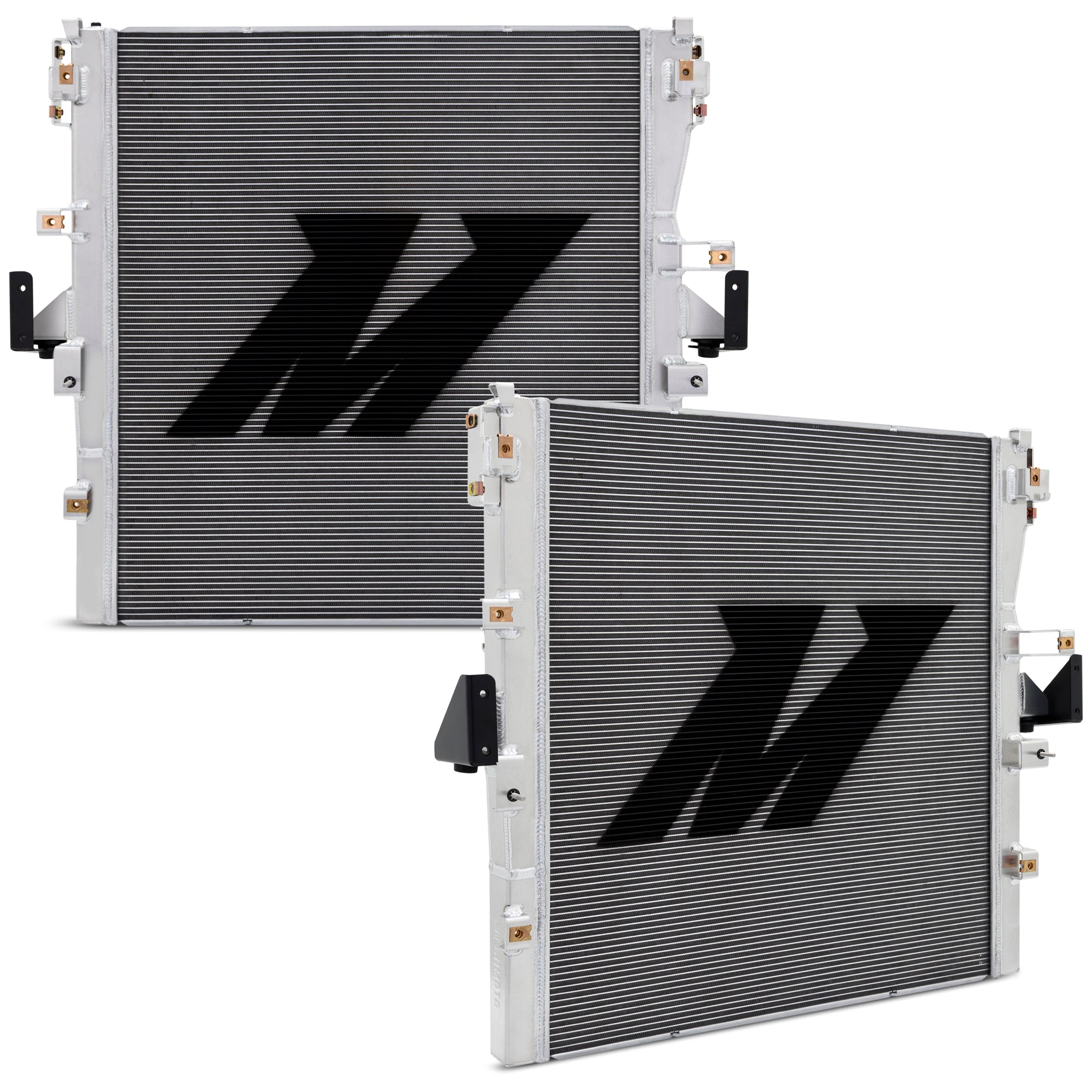

Mishimoto MMRAD-TAC-24 Performance Aluminum Radiator Fits Toyota Tacoma 2024+

Keep your 2024+ Toyota Tacoma cool and dependable on every drive with a radiator built for strength and endurance. The Mishimoto Performance Aluminum Radiator replaces the stock plastic unit with a fully TIG-welded aluminum design that eliminates weak points and provides reliable performance under tough conditions. A uniquely engineered mounting bracket system, proven through internal vibration testing, delivers exceptional resistance to chassis flex and off-road abuse. -- Internal strutted tubes strengthen the core to prevent fatigue over time while a 46% increase in core volume and 23% greater fluid capacity improve heat dissipation and overall cooling efficiency. The built-in 7-row stacked plate transmission cooler outperforms the stock tube-style design, providing superior control of transmission temperatures when towing, off-roading, or running heavier aftermarket parts. -- Every detail is crafted for long-term reliability. The increased coolant capacity improves thermal stability, while the magnetic drain plug captures debris to help protect the cooling system. Whether you're heading into the mountains or navigating daily traffic, this radiator ensures consistent performance and lasting durability, all backed by the Mishimoto Lifetime Warranty.

• All-aluminum construction with TIG-welded end tanks for maximum strength and leak-free reliability
• 46% increase in core volume and 23% greater fluid capacity for superior heat management
• Upgraded mounting bracket system tested for resistance to vibration

Attributes:

• Brand Name: Mishimoto
• GTIN: 00840197726532
• Core Finish: Uncoated
• Core Height: 27.8
• Core Length: 24.4
• Core Material: Aluminum
• Core Row Quantity: 7
• Core Thickness: 1.6
• Down Flow Or Cross Flow Type: Cross Flow
• Drain Plug Included: Yes
• Drain Plug Thread Size: M12 - 1.5
• Fluid Capacity: 0
• Inlet Diameter: 1.3
• Inlet Location: Top Left
• Install Difficulty: 3
• Outlet Diameter: 1.3
• Outlet Location: Right
• Overall Height: 28.9
• Overall Length: 31.6
• Overall Width: 5.4
• Radiator Cap Included: No
• SellingPoint01: All-aluminum construction with TIG-welded end tanks for maximum strength and leak-free reliability
• SellingPoint02: 46% increase in core volume and 23% greater fluid capacity for superior heat management
• SellingPoint03: Upgraded mounting bracket system tested for resistance to vibration
• SellingPoint04: Internal strutted tubes strengthen the core to resist chassis flex when towing and off-roading
• SellingPoint05: 7-row stacked plate in-tank transmission cooler provides improved cooling capabilities over stock
• SellingPoint06: Included magnetic drain plug helps capture debris to extend the life of the cooling system
• SellingPoint07: Designed to support the added demands of larger tires, lifts, and extra accessories
• SellingPoint08: Mishimoto Lifetime Warranty
• SellingPoint09: N/A
• SellingPoint10: N/A
• SellingPoint11: N/A
• SellingPoint12: N/A
• SellingPoint13: N/A
• SellingPoint14: N/A
• SellingPoint15: N/A
• TechSpec Applications: Toyota Tacoma Limited 2.4 L4 2024-2025--Toyota Tacoma SR 2.4 L4 2024-2025--Toyota Tacoma SR5 2.4 L4 2024-2025--Toyota Tacoma TRD Off-Road 2.4 L4 2024-2025--Toyota Tacoma TRD PreRunner 2.4 L4 2024-2025--Toyota Tacoma TRD Sport 2.4 L4 2024-2025
• TechSpec Chassis Codes: N/A
• TechSpec Core Height (in): 27.8
• TechSpec Core Length (in): 24.4
• TechSpec Core Thickness (in): 1.6
• TechSpec DPI: N/A
• TechSpec Drain Plug Thread Size: M12x1.5
• TechSpec Engine Codes: N/A
• TechSpec Fluid Capacity (gal): N/A
• TechSpec Includes: N/A
• TechSpec Inlet (in): 1.3
• TechSpec Material: Aluminum
• TechSpec Note: Does not fit TRD Pro, Trailhunter, or Tacoma trucks optioned with the i-Force Max hybrid engine
• TechSpec Outlet (in): 1.3
• TechSpec Overall Height (in): 28.9
• TechSpec Overall Length (in): 31.6
• TechSpec Overall Width (ins): 5.4
• TechSpec Rows: N/A
• Transmission Oil Cooler Fitting Type: N/A
• Transmission Oil Cooler Included: Yes

Extended Information:

• Country of Origin: China
• Emissions : Emissions Compliance Exempt

Packing Information:

• Quantity of Each: 1
• Package UOM: BX
• Dimension: 33.26 x 6.88 x 30.39 inches
• Weight: 53 POUNDS
