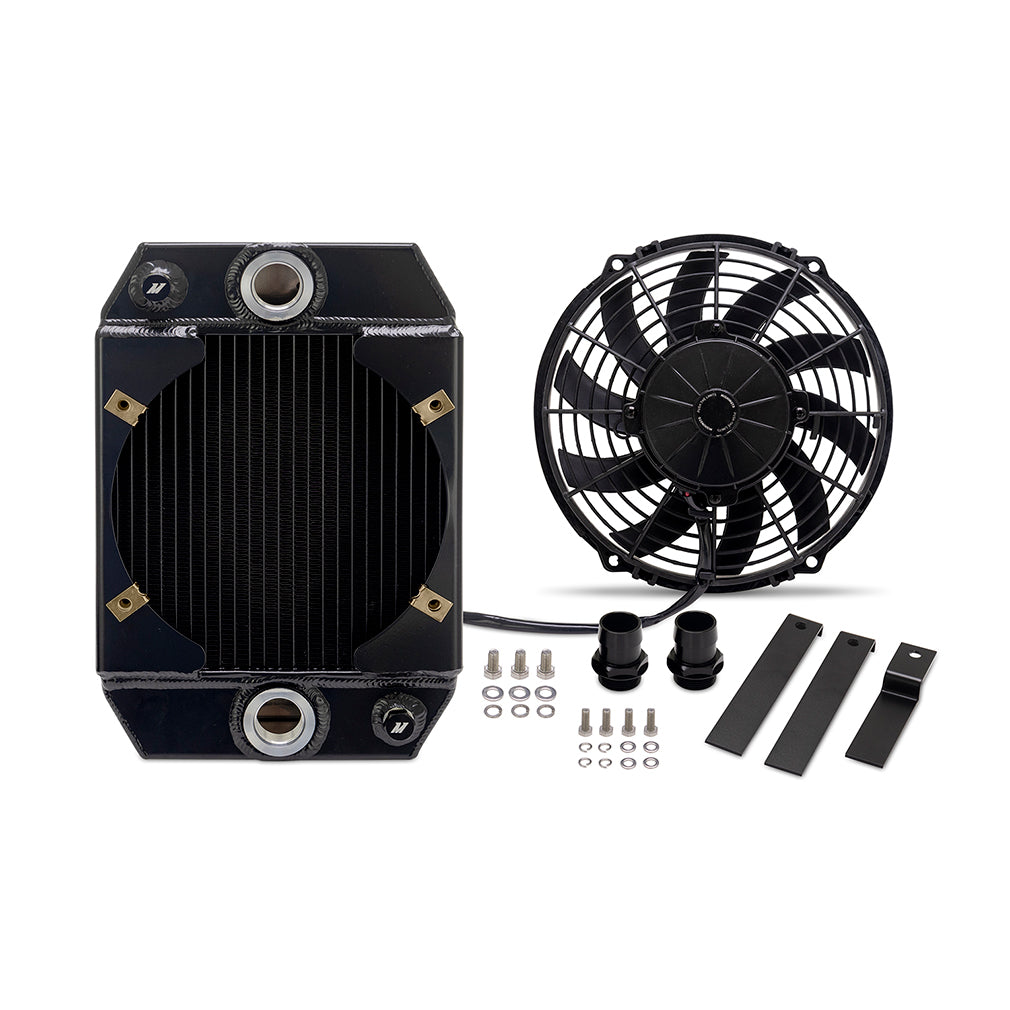

Mishimoto MMRAD-UNI-DRGBK Universal 9in Drag Race Performance Aluminum Radiator Black

Upgrade to the Mishimoto radiator to maximize cooling efficiency, durability, and performance for your drag car, ensuring you stay ahead of the competition with superior cooling capabilities and robust design. The Mishimoto Universal Drag Race Performance Aluminum Radiator is engineered for peak performance on the track. It features convenient threaded adapters for easy hose installation, along with threaded inlet and outlet options for optional -16AN fittings, ensuring flexibility in setup. Magnetic drain plugs enhance durability and maintenance ease, while multiple mounting points and universal brackets cater to various installation preferences. Backed by Mishimoto's Lifetime Warranty, this radiator guarantees reliability and peace of mind.

• Includes two 1 1/4" barbed adapters for slip-on hoses
• Threaded 16ORB inlet and outlet accommodate a multitude of -16AN fittings (sold separately)
• Magnetic drain plugs on both end tanks ensure easy draining, no matter the mounting setup

Attributes:

• Brand Name: Mishimoto
• GTIN: 00840197722350
• Core Finish: Uncoated
• Core Height: 9.37
• Core Length: 9.37
• Core Material: Aluminum
• Core Row Quantity: 2
• Core Thickness: 2.68
• Down Flow Or Cross Flow Type: Down Flow
• Drain Plug Included: Yes
• Drain Plug Thread Size: M12 - 1.5
• Fluid Capacity: 0.68
• Inlet Diameter: 1
• Inlet Location: Top Center
• Install Difficulty: 2
• Outlet Diameter: 1
• Outlet Location: Bottom Center
• Overall Height: 10.16
• Overall Length: 14.7
• Overall Width: 3.52
• Radiator Cap Included: No
• SellingPoint01: Includes two 1 1/4" barbed adapters for slip-on hoses
• SellingPoint02: Threaded 16ORB inlet and outlet accommodate a multitude of -16AN fittings (sold separately)
• SellingPoint03: Magnetic drain plugs on both end tanks ensure easy draining, no matter the mounting setup
• SellingPoint04: Massive 2.7" (68mm) thick two-row core for superior heat rejection
• SellingPoint05: 9" fan draws 700CFM, complementing our optimized core
• SellingPoint06: Multiple mounting points available to fit any custom build
• SellingPoint07: Includes 1/8" (3mm) thick powder-coated steel mounting brackets
• SellingPoint08: Available in both natural or stealth black powder coat finishes
• SellingPoint09: Mishimoto Lifetime Warranty
• SellingPoint10: N/A
• SellingPoint11: N/A
• SellingPoint12: N/A
• SellingPoint13: N/A
• SellingPoint14: N/A
• SellingPoint15: N/A
• TechSpec Applications: N/A
• TechSpec Chassis Codes: N/A
• TechSpec Core Height (in): 9.37
• TechSpec Core Length (in): 9.37
• TechSpec Core Thickness (in): 2.68
• TechSpec DPI: N/A
• TechSpec Drain Plug Thread Size: M12x1.5
• TechSpec Engine Codes: N/A
• TechSpec Fluid Capacity (gal): 0.68
• TechSpec Includes: (1) Mishimoto Performance Radiator--(2) -16 ORB To 1-1/4" Hose Barb Fittings--(2) Magnetic Slotted Drain Plugs--(1) 9" HD Fan--(3) Universal Mounting Brackets--Mounting Hardware--Mishimoto Lifetime Warranty
• TechSpec Inlet (in): -16 ORB
• TechSpec Material: 3A21-Aluminum
• TechSpec Note: N/A
• TechSpec Outlet (in): -16 ORB
• TechSpec Overall Height (in): 10.16
• TechSpec Overall Length (in): 14.7
• TechSpec Overall Width (in): 3.52
• TechSpec Rows: 2
• Transmission Oil Cooler Fitting Type: N/A
• Transmission Oil Cooler Included: No

Extended Information:

• Country of Origin: CN
• Emissions : Emissions Compliance Exempt

Packing Information:

• Quantity of Each: 1
• Package UOM: BX
• Dimension: 17 x 9.6 x 13.1 inches
• Weight: 14.4 POUNDS
