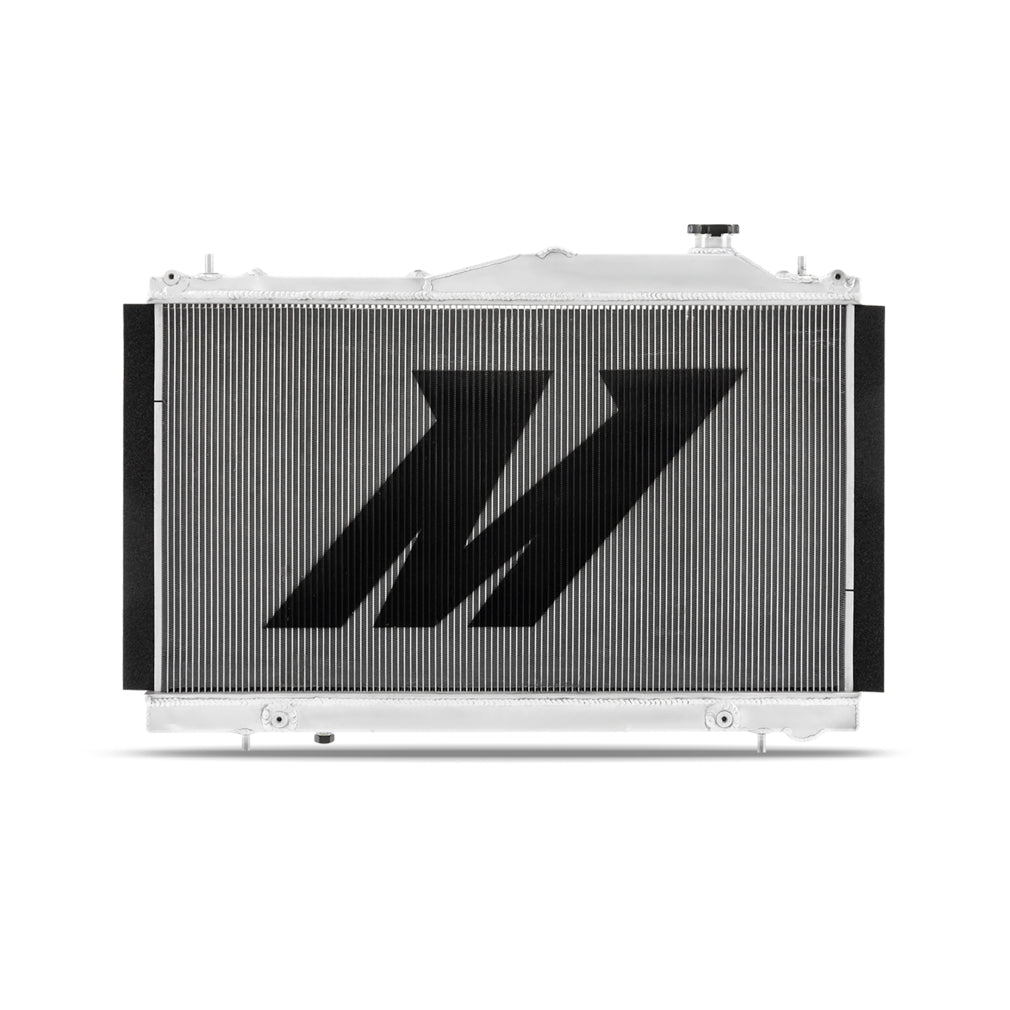

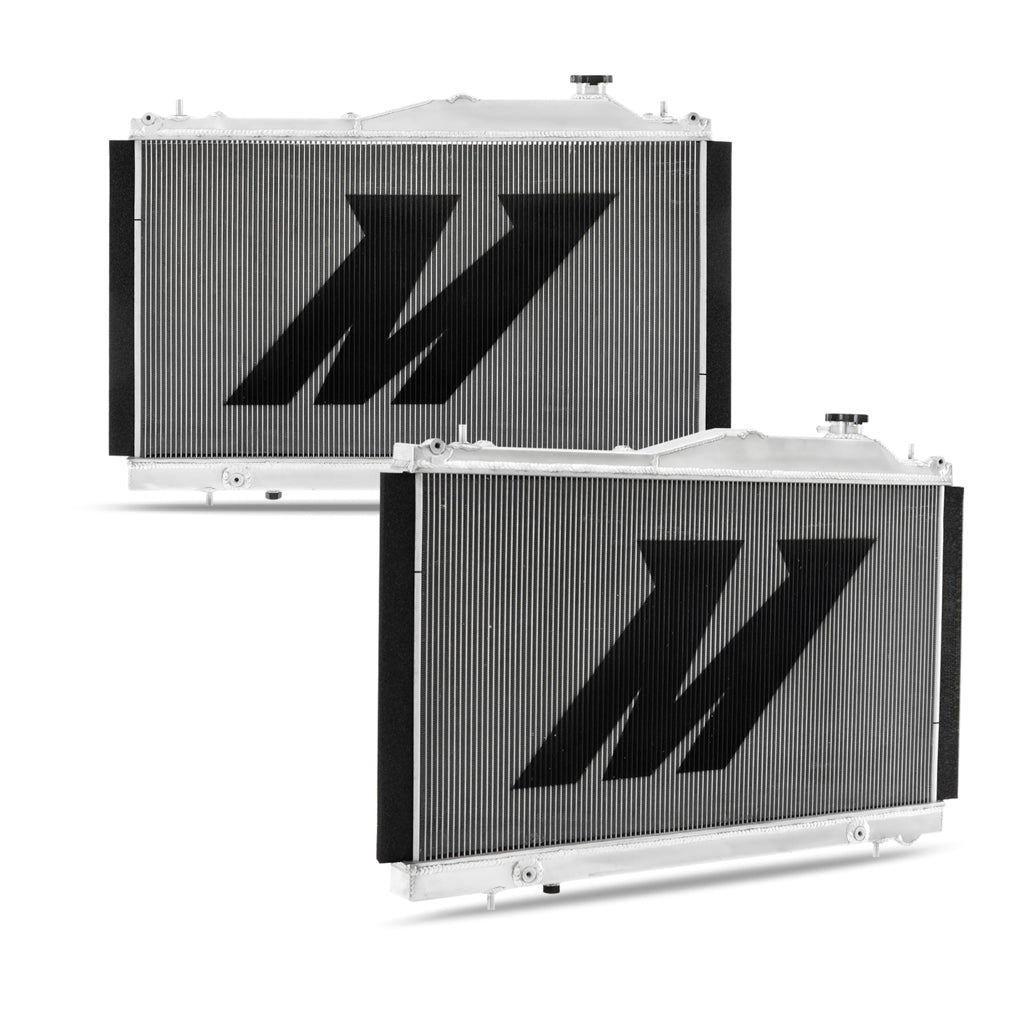

Mishimoto MMRAD-WRX-22 Performance Aluminum Radiator Fits Subaru WRX 2022+

The Subaru WRX has a rally pedigree unlike any other mass-market vehicle. When you step into your 2022+ WRX, you're stepping into 30 years of hard-earned lessons in building a performance car that's at home on any surface. But going from racing to commuting comes with some sacrifices, especially in the cooling department. While Subaru's rally cars get top-of-the-line cooling systems built for going all-out through miles of forest, gravel, and tarmac, the WRX gets the accountants' choice of plastic end tanks and loosely packed core. With this Mishimoto performance aluminum radiator, you can take your WRX closer to its rally roots and push it to its limits.----Our radiator features aluminum end tanks that are precision TIG-welded to withstand the vibrations and impacts that rally, track, or everyday driving throw at it. To help keep your FA24 boxer engine cool for miles of wide-open-throttle, we've sandwiched a two-row, 36 mm-thick core between those end tanks. This core features densely packed and louvered fins that effectively circulate air throughout the core for maximum heat transfer. The larger core also translates to a 32% increase in core volume, meaning our radiator can pull more heat out of more coolant, for more efficient cooling. A slotted drain plug helps direct coolant into your drain pan, instead of onto the floor during service. Like all Mishimoto radiators, this 2022+ Subaru WRX performance aluminum radiator is backed by our Mishimoto Lifetime Warranty.

• 32 percent increase in core volume over stock for improved cooling efficiency
• 50 percent greater fin surface area for improved heat transfer
• Two-row core balances optimal flow with cooling performance

Attributes:

• Brand Name: Mishimoto
• GTIN: 00840197718780
• Core Finish: Uncoated
• Core Height: 15.75
• Core Length: 28
• Core Material: Aluminum
• Core Row Quantity: 2
• Core Thickness: 1.42
• Down Flow Or Cross Flow Type: Down Flow
• Drain Plug Included: Yes
• Drain Plug Thread Size: M12 - 1.5
• Fluid Capacity: 0.978
• Inlet Diameter: 1.65
• Inlet Location: Top Left
• Install Difficulty: 3
• Outlet Diameter: 1.65
• Outlet Location: Bottom Left
• Overall Height: 21.49
• Overall Length: 29.41
• Overall Width: 3.99
• Radiator Cap Included: Yes
• SellingPoint01: Direct fit for 2022+ Subaru WRX
• SellingPoint02: 32 percent increase in core volume over stock for improved cooling efficiency
• SellingPoint03: 50 percent greater fin surface area for improved heat transfer
• SellingPoint04: Two-row core balances optimal flow with cooling performance
• SellingPoint05: Precision TIG-welded end tanks resist vibration and impacts on the street, gravel, or dirt
• SellingPoint06: 36mm-thick core with louvered fins makes the most of air moving through the grille
• SellingPoint07: Slotted drain plug makes services mess-free
• SellingPoint08: Pair with MMHOSE-WRX-22 (link to MMHOSE-WRX-22) for the enhanced cooling performance
• SellingPoint09: N/AMishimoto Lifetime Warranty
• SellingPoint10: N/A
• SellingPoint11: N/A
• SellingPoint12: N/A
• SellingPoint13: N/A
• SellingPoint14: N/A
• SellingPoint15: N/A
• TechSpec Applications: 2022+ Subaru WRX H4 2.4L Turbo
• TechSpec Chassis Codes: VB
• TechSpec Core Height (in): 15.75
• TechSpec Core Length (in): 28
• TechSpec Core Thickness (in): 1.42
• TechSpec DPI: N/A
• TechSpec Drain Plug Thread Size: M12x1.5
• TechSpec Engine Codes: FA24DIT
• TechSpec Fluid Capacity (gal): 0.978
• TechSpec Includes: (1) Mishimoto Performance Aluminum Radiator--(1) M12x1.5 Slotted Drain Plug--(1) Mishimoto Radiator Cap--Mishimoto Lifetime Warranty
• TechSpec Inlet (in): 1.65
• TechSpec Material: 6061-Aluminum
• TechSpec Note: N/A
• TechSpec Outlet (in): 1.65
• TechSpec Overall Height (in): 21.49
• TechSpec Overall Length (in): 29.41
• TechSpec Overall Width (in): 3.99
• TechSpec Rows: 2
• Transmission Oil Cooler Fitting Type: N/A
• Transmission Oil Cooler Included: No

Extended Information:

• Country of Origin: China
• Emissions : Emissions Compliance Exempt

Packing Information:

• Quantity of Each: 1
• Package UOM: EA
• Dimension: 32.15 x 6 x 24 inches
• Weight: 18 POUNDS
