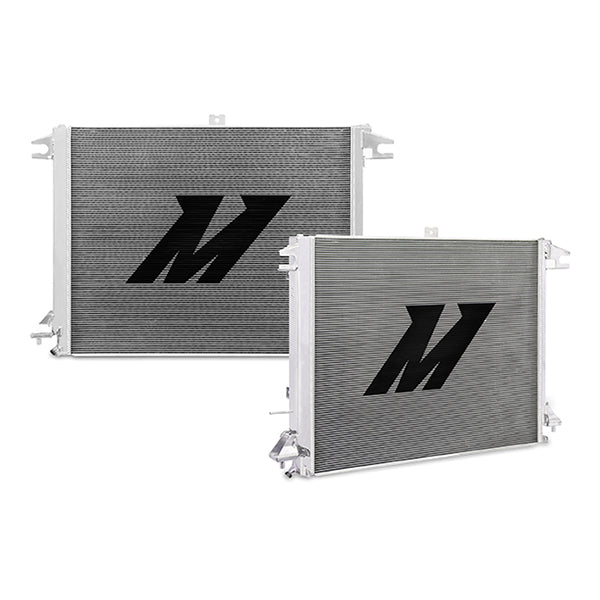

Mishimoto MMRAD-XD-16 Performance Aluminum Radiator Fits Nissan Titan XD 5.0 Cummins 2016-2019

Looking to upgrade your 2016-2019 Nissan Titan XD 5.0 radiator? Mishimoto has developed a performance aluminum radiator for the 2016-2019 Nissan Titan XD 5.0 Cummins Engine as an ideal upgrade from the factory radiator. This performance radiator was designed and engineered to maximize cooling efficiency, boost engine functions, and protect your truck from overheating. Whether you use your 2016-2019 Nissan Titan XD 5.0 for daily driving or as a powerhouse for hauling and towing, you don't want to overlook the importance of installing an upgraded aluminum radiator for your engine. A factory radiator cannot handle the heat that comes along with the immense power and torque potential of your truck. The Mishimoto 2016-2019 Nissan Titan XD 5.0 performance radiator features a lightweight three-row core made of 100-percent brazed aluminum along with strong TIG-welded aluminum end tanks for superior durability and longevity. Included with this 2016-2019 Nissan Titan XD 5.0 radiator is a magnetic drain plug to capture any metallic debris that may accumulate in the cooling system. As with all Mishimoto products, this radiator is covered by Mishimoto's Lifetime Warranty.

• Full aluminum construction including durable, TIG-welded end tanks
• Features a three-row, efficient brazed aluminum core
• Increased fluid capacity and optimal heat dissipation

Attributes:

• Brand Name: Mishimoto
• GTIN: 00748354033342
• Core Finish: Uncoated
• Core Height: 27.28
• Core Length: 33.07
• Core Material: Aluminum
• Core Row Quantity: 3
• Core Thickness: 2.04
• Down Flow Or Cross Flow Type: Cross Flow
• Drain Plug Included: Yes
• Drain Plug Thread Size: M12 - 1.5
• Fluid Capacity: 0
• Inlet Diameter: 0
• Inlet Location: Top Left
• Install Difficulty: 3
• Outlet Diameter: 0
• Outlet Location: Bottom Right
• Overall Height: 27.4
• Overall Length: 39.86
• Overall Width: 0
• Radiator Cap Included: No
• SellingPoint01: Direct fit for the 2016-2019 Nissan Titan XD
• SellingPoint02: Full aluminum construction including durable, TIG-welded end tanks
• SellingPoint03: Features a three-row, efficient brazed aluminum core
• SellingPoint04: Increased fluid capacity and optimal heat dissipation
• SellingPoint05: Provides efficient temperature reduction for towing, hauling, or during aggressive driving conditions
• SellingPoint06: Efficient temperature regulation for both stock and modified trucks
• SellingPoint07: Includes Magnetic Drain Plug to capture any metallic debris/fragments in your cooling system
• SellingPoint08: Mishimoto Lifetime Warranty
• SellingPoint09: N/A
• SellingPoint10: N/A
• SellingPoint11: N/A
• SellingPoint12: N/A
• SellingPoint13: N/A
• SellingPoint14: N/A
• SellingPoint15: N/A
• TechSpec Applications: 2016-2019 Nissan Titan XD 5.0L Cummins
• TechSpec Chassis Codes: N/A
• TechSpec Core Height (in): 27.28
• TechSpec Core Length (in): 33.07
• TechSpec Core Thickness (in): 2.04
• TechSpec DPI: N/A
• TechSpec Drain Plug Thread Size: N/A
• TechSpec Engine Codes: IS-V
• TechSpec Fluid Capacity (gal): N/A
• TechSpec Includes: Aluminum Radiator-- Fill Neck--Mounting Hardware--Mishimoto Lifetime Warranty
• TechSpec Inlet (in): N/A
• TechSpec Material: Aluminum
• TechSpec Note: N/A
• TechSpec Outlet (in): N/A
• TechSpec Overall Height (in): 27.4
• TechSpec Overall Length (in): 39.86
• TechSpec Overall Width (in): N/A
• TechSpec Rows: 3
• Transmission Oil Cooler Fitting Type: N/A
• Transmission Oil Cooler Included: No

Extended Information:

• Country of Origin: CN
• Emissions : Emissions Compliance Exempt

Packing Information:

• Quantity of Each: 1
• Package UOM: EA
• Dimension: 22.4 x 11 x 5.5 inches
• Weight: 3.55 POUNDS
