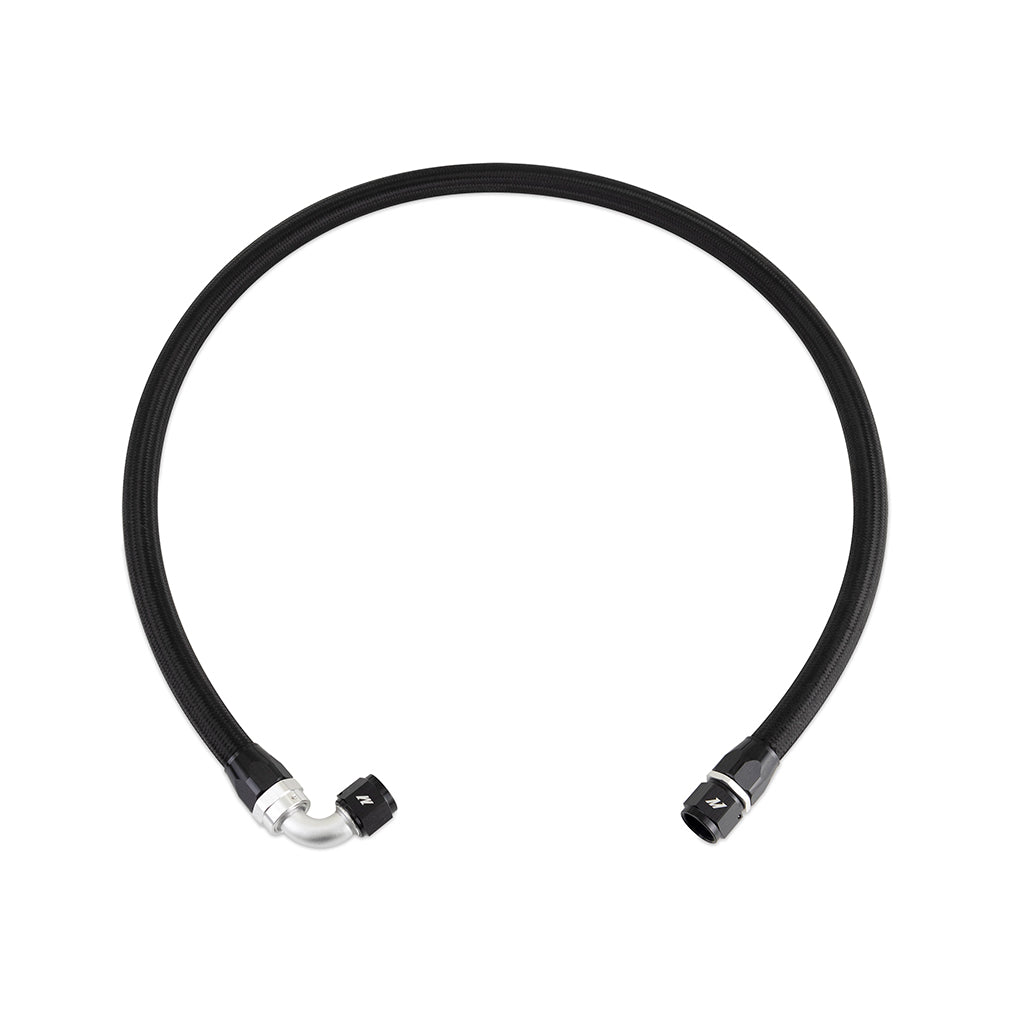

Mishimoto MMSBH-10-3NBK -10AN Braided Line Black Nylon 3 Ft W/ -10AN Fittings

Extremely durable and flexible, this Mishimoto Braided Hose is an ideal addition to your vehicle. Whether you're installing a turbocharger oil drain hose or adding an oil cooling system, these nylon-wrapped stainless-steel braided fluid hoses are available in multiple lengths to suit any application. In addition, each line includes pre-installed B-nut style 90-degree and straight -10AN fittings for leak-free operation. These Mishimoto -10AN lines feature a CPE rubber inner layer which provides a durable passageway for most fuels, oils, and engine coolants, while a woven stainless-steel inner jacket increases the pressure tolerance and durability. The nylon outer braid will not abrade soft materials such as plastic or aluminum in confined spaces. In addition, the black outer braid provides a very subtle, factory-like appearance. Our braided -10AN lines feature an operating temperature range from -10 degrees to 302 degrees and pressure rating of up to 1,000 PSI, making them applicable for most fluids or air passage systems on your vehicle. As with all our products, this Mishimoto Stainless-Steel Braided Line is covered by our Lifetime Warranty.

• Chemical resistant CPE rubber core is compatible with petroleum-based fuel, diesel, oil, and coolant
• Woven stainless-steel inner jacket for increased strength and pressure tolerance
• Nylon outer braid prevents abrasion to soft materials such as plastic or aluminum

Attributes:

• Brand Name: Mishimoto
• GTIN: 00840197721032
• Install Difficulty: 1
• OptionLabel: 3ft
• SellingPoint01: Chemical resistant CPE rubber core is compatible with petroleum-based fuel, diesel, oil, and coolant
• SellingPoint02: Woven stainless-steel inner jacket for increased strength and pressure tolerance
• SellingPoint03: Nylon outer braid prevents abrasion to soft materials such as plastic or aluminum
• SellingPoint04: Includes pre-installed B-nut style 90 and straight -10AN fittings for leak-free operation
• SellingPoint05: Black nylon outer braid provides a refined, factory-like appearance
• SellingPoint06: Available in lengths from 3 to 6 feet
• SellingPoint07: Operating temperature range from -10 degrees to 302 degrees
• SellingPoint08: Maximum pressure rating of up to 1,000 PSI
• SellingPoint09: Mishimoto Lifetime Warranty
• SellingPoint10: N/A
• SellingPoint11: N/A
• SellingPoint12: N/A
• SellingPoint13: N/A
• SellingPoint14: N/A
• SellingPoint15: N/A
• TechSpec Compatible Fluids: Petroleum-Based Fuels--Engine Oil--Engine Coolant
• TechSpec Fitting Angle: 90
• TechSpec Inlet: -10AN
• TechSpec Inner Material: CPE
• TechSpec Max Fluid Pressure (PSI): 1000
• TechSpec MaxFluidTemperature (F): 302
• TechSpec Note: N/A
• TechSpec Outlet: -10AN
• TechSpec PurchaseIncludes: (1) Pre-Assembled -10 AN Line--Mishimoto Lifetime Warranty

Extended Information:

• Country of Origin: China
• Emissions : Emissions Compliance Exempt

Packing Information:

• Quantity of Each: 1
• Package UOM: EA
• Dimension: 11.75 x 11.5 x 2.5 inches
• Weight: 1.04 POUNDS
