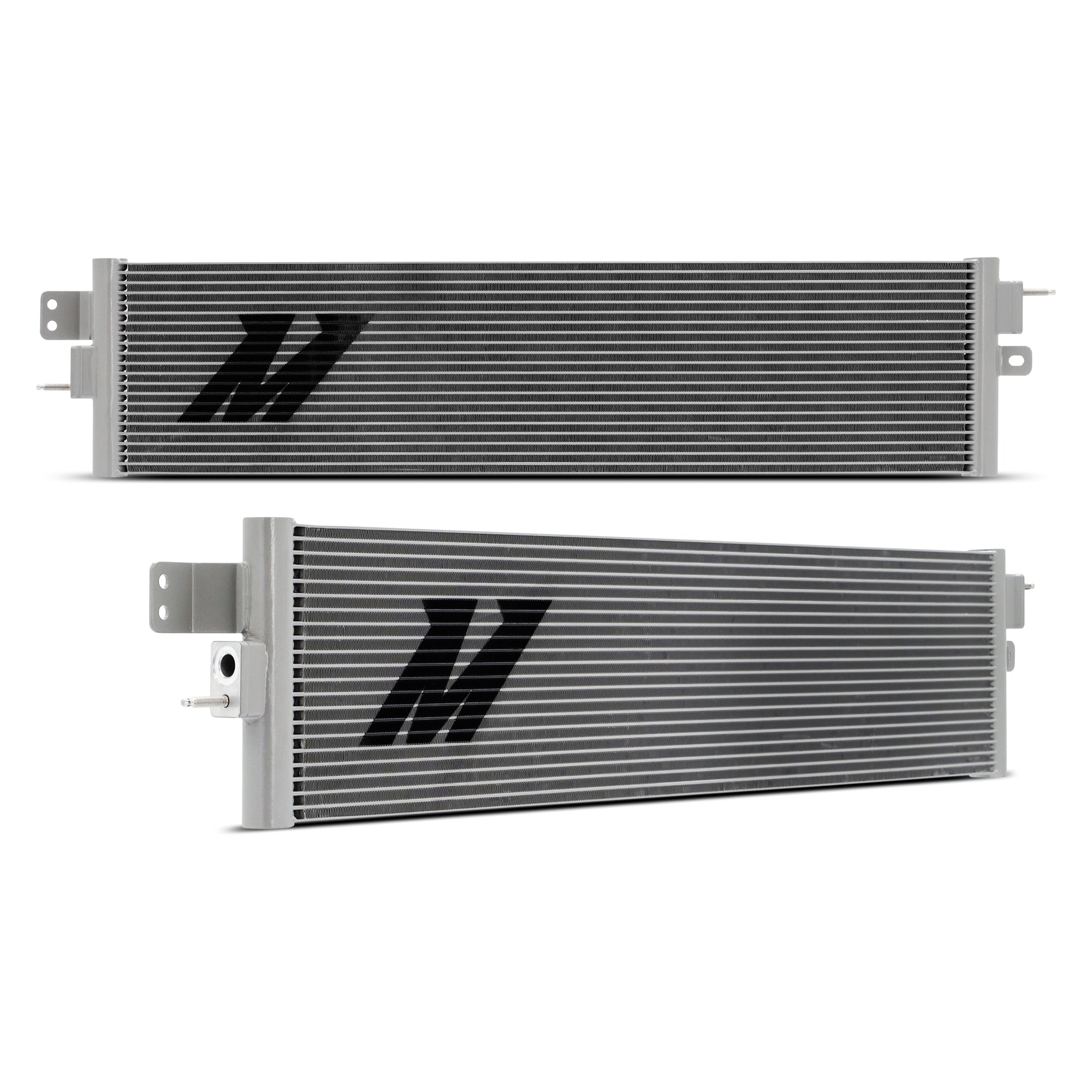

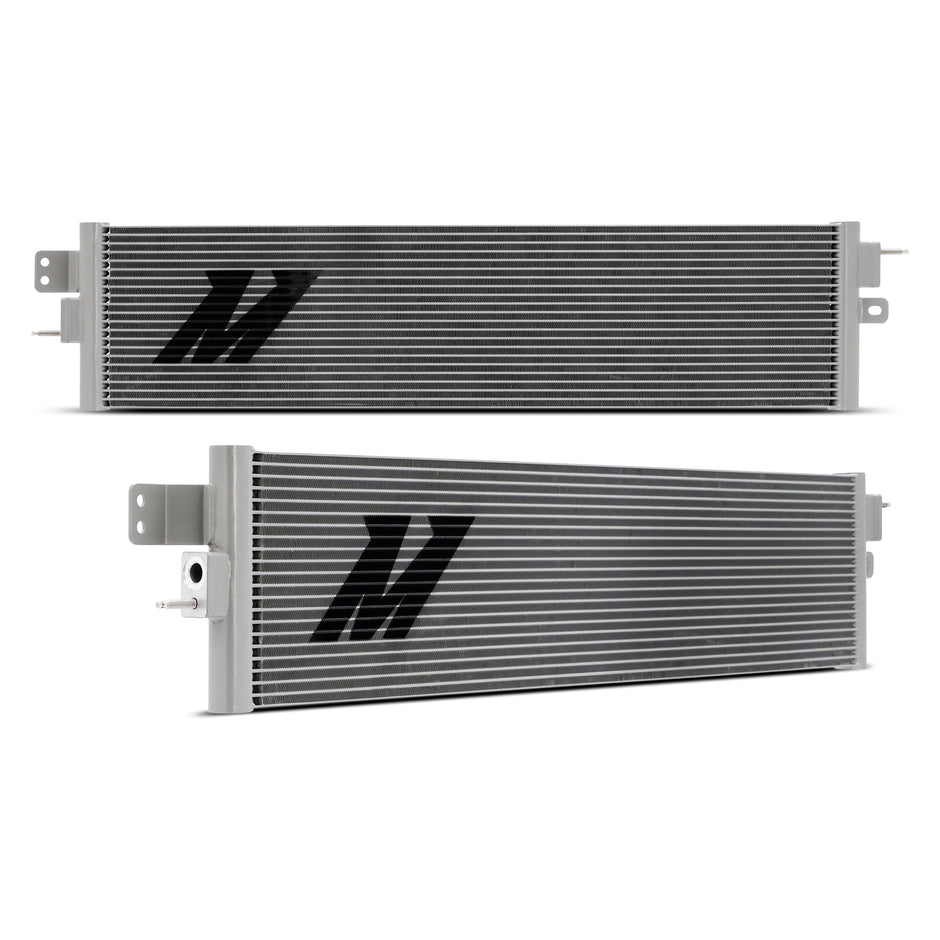

Mishimoto MMTC-DMAX-20 Transmission Cooler Silver Fits Chevrolet/GMC 6.6L Duramax L5P 2020+

The factory transmission cooling on the 2020+ Chevrolet and GMC Duramax L5P 6.6L is sized for stock duty, and fluid temperatures climb fast under the sustained load of towing and heavy hauling. Heat is what wears a transmission out. The Mishimoto Transmission Cooler attacks the problem with raw capacity: a tube-and-fin core with a 245% increase in core volume over stock, giving the system far more headroom to keep fluid temperatures in a safe range when the truck is working hardest.----The core also adds a 137% increase in frontal area, putting more of the cooler directly in the incoming airstream, and a 173% increase in external fin area to move heat from the fluid into the air more efficiently. All-aluminum construction handles the thermal demands of stock and modified Duramax trucks alike, and the cooler retains the factory transmission line connections for a clean, complete upgrade with no additional adapters or plumbing.----Direct fit for the 2020+ Chevrolet and GMC Duramax L5P 6.6L. No drilling, cutting, or modification required. Backed by the Mishimoto Lifetime Warranty.

• 245% larger core volume for serious heat dissipation - the oversized tube-and-fin core gives the transmission far more capacity to pull heat from the fluid under tow and heavy load.
• 137% more frontal area catches more cooling airflow - the larger frontal core area puts more of the cooler in the incoming airstream to drop fluid temps faster.
• Factory connections, no adapters required - the cooler uses the OEM transmission line connections for a complete bolt-on upgrade with no extra fittings or plumbing work.
• Tube-and-fin aluminum core built for sustained load - durable all-aluminum construction holds transmission temps in check through the heat of towing where stock cooling falls short.
• 173% more external fin area accelerates heat transfer - the added fin surface moves thermal energy from the fluid into the airstream far more efficiently than the stock cooler.
• Drops in without modification - confirmed direct fit for 2020+ Chevrolet and GMC Duramax L5P 6.6L trucks, with no cutting, fabricating, or adapter work required
• Own it for life - backed by Mishimoto’s Lifetime Warranty, your investment is protected long after install day.

Attributes:

• Brand Name: Mishimoto
• GTIN: 00840197727379
• Cooler Fluid Capacity: 1.5
• Core Height: 8.3
• Core Material: Aluminum
• Core Thickness: 1.3
• Core Width: 33.4
• Electric Fan: No
• Finish: Natural Aluminum
• Grade Type: Performance
• Height: 8.6
• Inlet Diameter: 1
• Install Difficulty: 2
• Line Included: No
• Mounting Hardware Included: Yes
• Outlet Diameter: 1
• SellingPoint01: 245% larger core volume for serious heat dissipation - the oversized tube-and-fin core gives the transmission far more capacity to pull heat from the fluid under tow and heavy load.
• SellingPoint02: 137% more frontal area catches more cooling airflow - the larger frontal core area puts more of the cooler in the incoming airstream to drop fluid temps faster.
• SellingPoint03: Factory connections, no adapters required - the cooler uses the OEM transmission line connections for a complete bolt-on upgrade with no extra fittings or plumbing work.
• SellingPoint04: Tube-and-fin aluminum core built for sustained load - durable all-aluminum construction holds transmission temps in check through the heat of towing where stock cooling falls short.
• SellingPoint05: 173% more external fin area accelerates heat transfer - the added fin surface moves thermal energy from the fluid into the airstream far more efficiently than the stock cooler.
• SellingPoint06: Drops in without modification - confirmed direct fit for 2020+ Chevrolet and GMC Duramax L5P 6.6L trucks, with no cutting, fabricating, or adapter work required
• SellingPoint07: Own it for life - backed by Mishimoto’s Lifetime Warranty, your investment is protected long after install day.
• SellingPoint08: N/A
• SellingPoint09: N/A
• SellingPoint10: N/A
• SellingPoint11: N/A
• SellingPoint12: N/A
• SellingPoint13: N/A
• SellingPoint14: N/A
• SellingPoint15: N/A
• TechSpec Caution: N/A
• TechSpec Chassis Codes: GMT
• TechSpec Core Construction: Tube-and-Fin
• TechSpec Core Height (in): 8.3
• TechSpec Core Length (in): 33.4
• TechSpec Core Thickness (in): 1.3
• TechSpec Engine Codes: L5P
• TechSpec Includes: (1) Transmission Cooler--(2) M6 Studs--Mishimoto Lifetime Warranty
• TechSpec Inlet: N/A
• TechSpec Installation Notes: N/A
• TechSpec Note: N/A
• TechSpec Outlet: N/A
• TechSpec Overall Height (in): 8.6
• TechSpec Overall Length (in): 40
• TechSpec Overall Width (in): 2.4
• TechSpec Rows: 20
• TechSpec Transmission Codes: Allison 10-speed 10L1000
• Thickness: 2.4
• Width: 40

Extended Information:

• Country of Origin: CN
• Emissions : Emissions Compliance Exempt

Packing Information:

• Quantity of Each: 1
• Package UOM: EA
• Dimension: 41.5 x 4.1 x 10.2 inches
• Weight: 6 POUNDS
