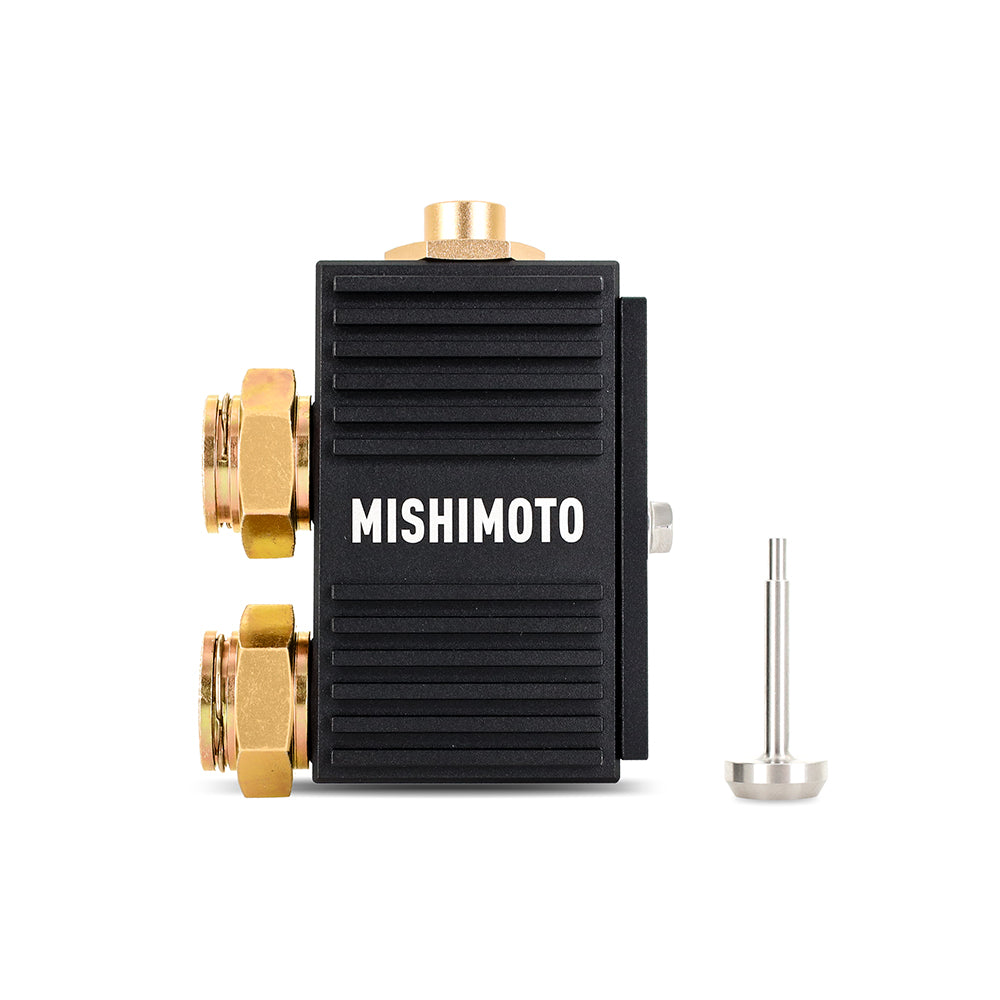

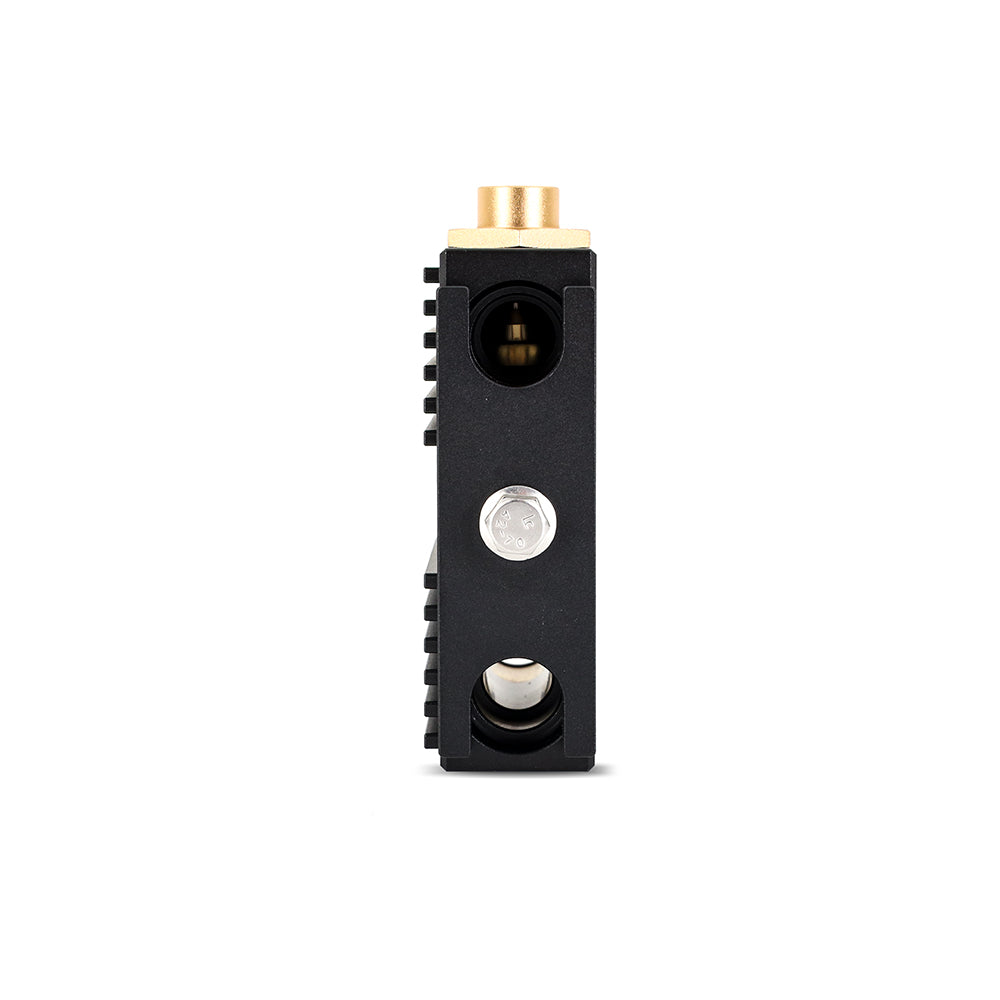

Mishimoto MMTC-L5P-TBV Transmission Thermal Bypass Valve Kit Fits Chevrolet/GMC 6.6L Duramax L5P 17-19

The Allison transmission is the backbone of your L5P Duramax. It's responsible for transmitting large quantities of torque from your V8 diesel powerplant. This torque generates a lot of heat, and if that heat isn't dissipated, it can destroy your transmission. The transmission cooler does a good job of keeping trans fluid temperatures in check, but only if the fluid can reach it. The stock cooling system of the Allison 1000 transmission utilizes an in-line thermal bypass valve that controls fluid flow to the transmission cooler. The purpose of this valve is to prevent transmission fluid from flowing to the cooler until it reaches operating temperature. The thermostat inside this valve is prone to failure, however, and when that happens, the fluid never flows to the cooler, and the transmission can overheat. That's why Mishimoto has developed a thermal bypass valve upgrade for your 2017-2019 Chevrolet/GMC 6.6L Duramax. Our CNC-machined aluminum thermal bypass valve not only looks better than the stock unit, but it performs better too. This Mishimoto thermal bypass valve kit includes a fully serviceable thermostat for fast warm-up in cold climates. This kit also includes a thermostat bypass that can be installed to provide constant cooling in warm climates or for use in extreme driving/towing conditions. The Mishimoto thermal bypass valve features strategically machined internal passages, providing improved flow over the stock valve for more effective cooling. In addition, cooling fins machined into the valve body adds even more heat dissipation. This 2017-2019 Chevrolet/GMC 6.6L Duramax L5P Thermal Bypass Valve Kit is built to last a lifetime with a durable black anodized finish and our Mishimoto Lifetime Warranty.

• Installs in less than 1 hour
• Eliminates failure-prone bypass valve
• Durable CNC-machined billet aluminum construction

Attributes:

• Brand Name: Mishimoto
• GTIN: 00840197710616
• Core Height: 0
• Core Material: Aluminum
• Core Thickness: 0
• Core Width: 0
• Electric Fan: No
• Finish: Natural Aluminum
• Grade Type: Performance
• Height: 0
• Inlet Diameter: 0.875
• Install Difficulty: 1
• Line Included: No
• Mounting Hardware Included: Yes
• Outlet Diameter: 0.875
• SellingPoint01: Direct fit for 2017-2019 Chevrolet/GMC 6.6L Duramax L5P
• SellingPoint02: Installs in less than 1 hour
• SellingPoint03: Eliminates failure-prone bypass valve
• SellingPoint04: Durable CNC-machined billet aluminum construction
• SellingPoint05: Includes fully-serviceable thermostat for fast warm-up in cold climates and thermostat bypass for constant cooling in hot climates
• SellingPoint06: Helps extend transmission life and prevent overheating
• SellingPoint07: Fits with stock transmission cooler piping, requiring no modification for installation
• SellingPoint08: Integrated heat-sink fins provide unique styling and added heat dissipation
• SellingPoint09: Durable anodized finish
• SellingPoint10: Mishimoto Lifetime Warranty
• SellingPoint11: N/A
• SellingPoint12: N/A
• SellingPoint13: N/A
• SellingPoint14: N/A
• SellingPoint15: N/A
• TechSpec Applications: GMC Sierra 2500HD V8 (6.6L Diesel) 2017-2019--GMC Sierra 3500HD V8 (6.6L Diesel) 2017-2019--Chevrolet Silverado 2500HD V8 (6.6L Diesel) 2017-2019--Chevrolet Silverado 3500HD V8 (6.6L Diesel) 2017-2019
• TechSpec Chassis Codes: 2500--3500
• TechSpec Engine Codes: L5P 6.6L Duramax
• TechSpec Includes: (1) CNC-Machined Billet Aluminum Thermal Bypass Valve--(1) Removable Thermostat--(2) 7/8-inch X 14 Quick-Disconnect Transmission Line Fittings--(1) Transmission Line Mounting Plate--(1) Transmission Line Mounting Plate Bolt--(1) Removable Thermostat Bypass w/ Installation Hardware--(1) Assembly Notecard--Mishimoto Lifetime Warranty
• TechSpec Mishimoto Activation Temperature (F): 185
• TechSpec Note: Mishimoto does not recommend customers in cold climates install the thermostat bypass to avoid overcooling of the transmission fluid----This performance thermostatic bypass valve only fits vehicles equipped with the Allison automatic transmission----
• TechSpec OEM Activation Temperature (F): 185
• Thickness: 0
• Width: 0

Extended Information:

• Country of Origin: China
• Emissions : Emissions Compliance Exempt

Packing Information:

• Quantity of Each: 1
• Package UOM: EA
• Dimension: 8 x 7 x 2 inches
• Weight: 1 POUNDS
