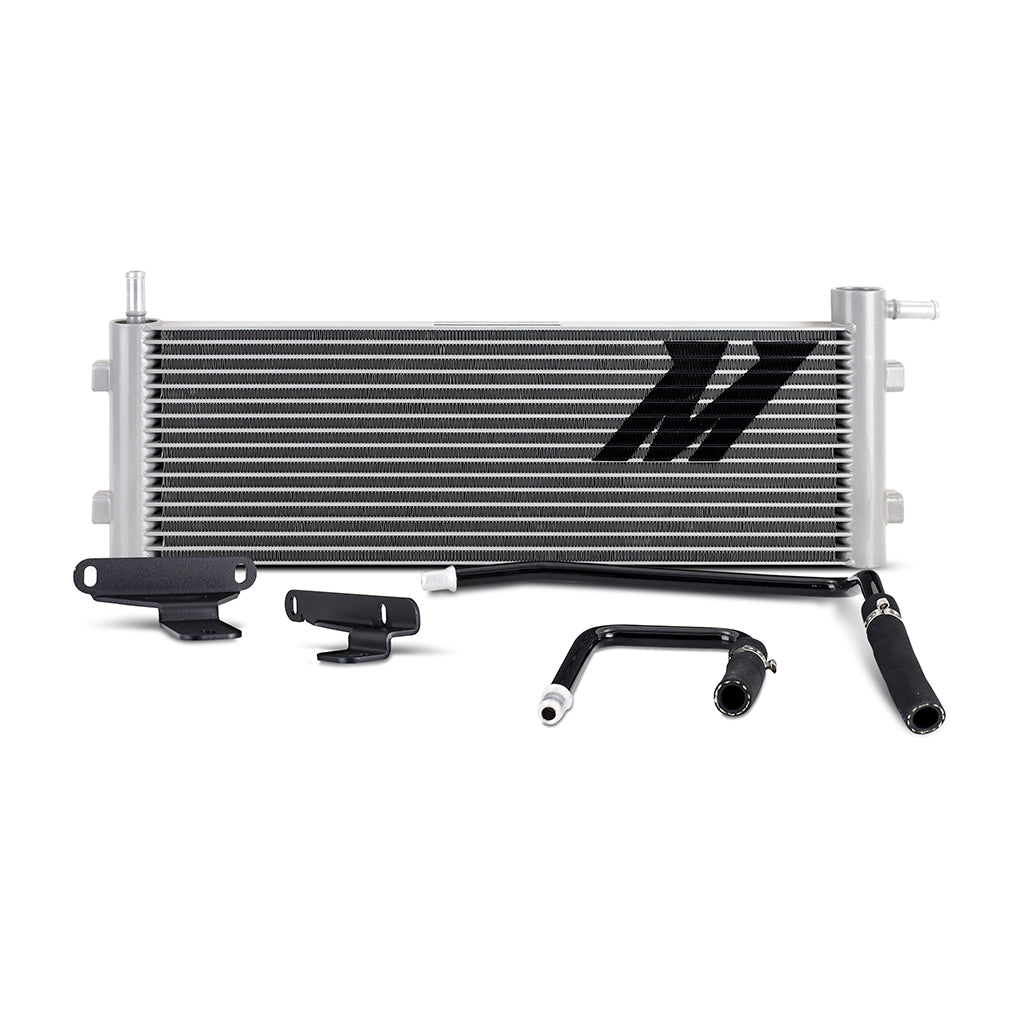

Mishimoto MMTC-RAM-10 Transmission Cooler Silver Fits Dodge Ram 2500/3500 6.7L Cummins 2010-2012

Mishimoto's transmission cooler is designed to be a direct fit for the 2010-2012 Dodge 2500/3500 6.7L Cummins and features a tube and fin design optimal for heavy load towing and rapid load changes. This transmission cooler boasts a 60% increase in core volume and an 86% increase in external fin area for superior cooling and heat dissipation. It also pairs with an optional line kit that helps bypass the factory transmission cooler, as a transmission failure can contaminate that.

• Available optional line kit to bypass OEM cooler and integrated A/C condenser
• 60% increase in core volume for superior cooling capability
• Works with stock and Mishimoto transmission coolers

Attributes:

• Brand Name: Mishimoto
• GTIN: 00840197722664
• Core Height: 6.18
• Core Material: Aluminum
• Core Thickness: 1.26
• Core Width: 19.29
• Electric Fan: No
• Finish: Natural Aluminum
• Grade Type: Performance
• Height: 7.87
• Inlet Diameter: 0.5
• Install Difficulty: 2
• Line Included: Yes
• Mounting Hardware Included: Yes
• Outlet Diameter: 0.5
• SellingPoint01: Direct fit for the 2010-2012 Dodge 2500/3500 6.7L Cummins
• SellingPoint02: Available optional line kit to bypass OEM cooler and integrated A/C condenser [HYPERLINK TO MMTC-RAM-10LK]
• SellingPoint03: 60% increase in core volume for superior cooling capability
• SellingPoint04: Works with stock and Mishimoto transmission coolers
• SellingPoint05: 86% increase in external fin area for improved heat dissipation
• SellingPoint06: Tube and fin design perfect for heavy towing and rapid load changes
• SellingPoint07: Mishimoto Lifetime Warranty
• SellingPoint08: N/A
• SellingPoint09: N/A
• SellingPoint10: N/A
• SellingPoint11: N/A
• SellingPoint12: N/A
• SellingPoint13: N/A
• SellingPoint14: N/A
• SellingPoint15: N/A
• TechSpec Applications: Dodge Ram 2500 5.7L V8 2010--Dodge Ram 2500 6.7L L6 2010--Dodge Ram 3500 6.7L L6 2010--Ram 2500 6.7L L6 2011-2013--Ram 2500 5.7L V8 2011-2012--Ram 3500 6.7L L6 2011-2013--Ram 3500 5.7L V8 2011-2012
• TechSpec Caution: N/A
• TechSpec Chassis Codes: N/A
• TechSpec Core Construction: Tube-And-Fin
• TechSpec Core Height (in): 6.18
• TechSpec Core Length (in): 19.29
• TechSpec Core Thickness (in): 1.26
• TechSpec Engine Codes: 6.7L Cummins
• TechSpec Fluid Capacity (qts): 0.7 (total cooler capacity including lines where applicable)
• TechSpec Includes: (1) Mishimoto Transmission Cooler--(1) Mounting Bracket & Hardware Kit--(1) Line Kit--Mishimoto Lifetime Warranty
• TechSpec Inlet: 1/2"
• TechSpec Installation Notes: N/A
• TechSpec Note: Available optional line kit to bypass OEM cooler and integrated A/C condenser: MMTC-RAM-10LK
• TechSpec Outlet: 1/2"
• TechSpec Overall Height (in): 7.87
• TechSpec Overall Length (in): 22.48
• TechSpec Overall Width (in): 1.54
• TechSpec Rows: 15
• TechSpec Transmission Codes: 68RFE--AS68RC
• Thickness: 1.54
• Width: 0

Extended Information:

• Country of Origin: China
• Emissions : Emissions Compliance Exempt

Packing Information:

• Quantity of Each: 1
• Package UOM: BX
• Dimension: 24 x 6 x 10 inches
• Weight: 7.6 POUNDS
