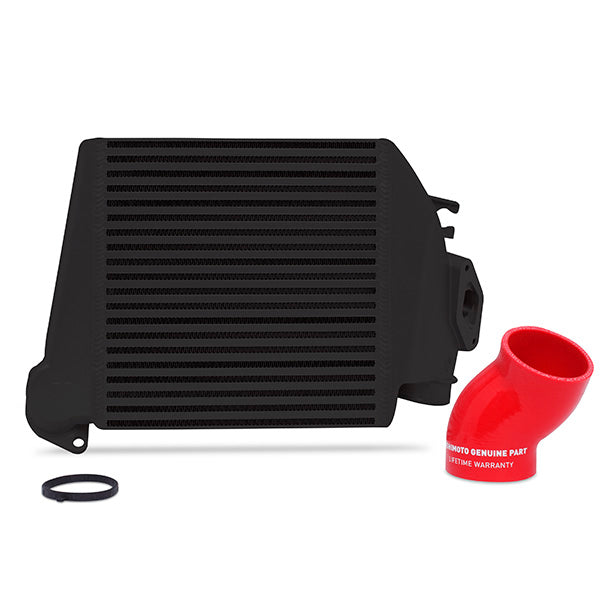

Mishimoto MMTMIC-WRX-08BKRD Top-Mount Intercooler Black Cooler Red Hoses Fits Subaru WRX 2008-2014

Looking for a way to reduce high intake temperatures on your stock or modified WRX? The solution is the Mishimoto direct-fit top-mount intercooler engineered specifically for the 2008--2014 Subaru WRX. The stock top-mount intercooler is prone to head soak and even failure of the stock plastic endtanks above 18psi. Mishimoto engineers spent months designing and testing this new intercooler to ensure optimum performance on both the street and track. This intercooler utilizes durable cast aluminum end tanks TIG-welded to a highly efficient, dense bar-and-plate core. The Mishimoto intercooler has a 3.75 thick core and a total volume of 584 in3. Thanks to this volume and a very dense offset fin pitch, we are able to optimize heat transfer and support vehicles from stock up to 400 whp. This intercooler endured rigorous testing, showing a 12 F temperature drop as well as a +6 whp and +8 wtq bolt-on power increase for our stock test vehicle. Installation is simple, requires no modification to any parts in the engine bay, and can be completed in under 30 minutes. Included with this intercooler are a new turbo-intercooler O-ring gasket, and Mishimoto's silicone throttle-body coupler. These components negate the need to gather supplies for installation, and they ensure years of reliable service. This intercooler is available in a durable powder-coated finish of Stealth Black or Sleek Silver, and it includes the Mishimoto Lifetime Warranty.

• Heavy-duty bar-and-plate core with cast end tanks to sustain high boost
• Core design optimized for optimal flow while providing excellent heat transfer
• 6 whp and 8 wtq increases

Attributes:

• Brand Name: Mishimoto
• GTIN: 00748354011944
• CARB EO Number: D-759
• Cold Side Pipe Inside Diameter: 2.75
• Core Color: Black
• Core Construction: Bar-and-Plate
• Core Height: 11
• Core Length: 11
• Core Material: Aluminum
• Core Thickness: 3.5
• Coupler Color: Red
• Coupler Material: Silicone
• End Tank Construction: Cast
• End Tank Material: Aluminum
• Grade Type: Performance
• Hose Clamps Included: Yes
• Hot Side Pipe Inside Diameter: 1.875
• Inlet Diameter: 1.875
• Install Difficulty: 3
• Intercooler Type: Air-to-Air
• Maximum Boost Pressure: 30
• Maximum Horsepower: 350
• OptionLabel: Black Intercooler, Red Hoses
• Outlet Diameter: 2.75
• Pipe Color: Red
• Pipe Finish: Powder Coated
• Pipe Material: Aluminum
• SellingPoint01: Heavy-duty bar-and-plate core with cast end tanks to sustain high boost
• SellingPoint02: Core design optimized for optimal flow while providing excellent heat transfer
• SellingPoint03: 6 whp and 8 wtq increases
• SellingPoint04: 12 F temperature decrease with minimal pressure drop
• SellingPoint05: 80-percent larger core volume over stock
• SellingPoint06: 37.9-percent greater internal flow area
• SellingPoint07: Fits with stock hood-scoop shroud
• SellingPoint08: Includes turbo-to-intercooler O-ring that functions like stock
• SellingPoint09: Mishimoto Lifetime Warranty
• SellingPoint10: N/A
• SellingPoint11: N/A
• SellingPoint12: N/A
• SellingPoint13: N/A
• SellingPoint14: N/A
• SellingPoint15: N/A
• TechSpec Applications: 2008-2014 Subaru WRX--2005-2009 Legacy GT--2005-2009 Outback XT--2009-2013 Forester XT
• TechSpec Centerline Radius: N/A
• TechSpec Chassis Codes: GR--GV
• TechSpec Core Height (in): 11
• TechSpec Core Length (in): 11
• TechSpec Core Thickness (in): 3.5
• TechSpec Core Type: Bar-and-Plate
• TechSpec Engine Codes: EJ255
• TechSpec Includes: (1) Top-Mount Intercooler--(1) Intercooler to Throttle-Body Hose--(1) Turbo to Intercooler O-Ring Gasket
• TechSpec Inlet (in): 1.875
• TechSpec Installation Notes: N/A
• TechSpec Maximum Recommended Boost Pressure (PSI): 30
• TechSpec Maximum Recommended Horsepower: 350
• TechSpec Note: This kit is rated for 250-350 whp with maximum limits of approximately 400 whp, or 30 PSI of turbo boost. Exceeding that horsepower or pressure limit may require a larger front-mount intercooler.
• TechSpec Outlet (in): 2.75
• TechSpec Overall Height (in): 12.5
• TechSpec Overall Length (in): 18.5
• TechSpec Overall Width (in): 5
• TechSpec Pipe Diameter: N/A
• TechSpec Pipe Length: N/A
• TechSpec Pipe Shape: N/A
• TechSpec Weight (lbs): 21
• Universal Or Specific Fit: Specific

Extended Information:

• Country of Origin: CN
• Emissions : CARB Eligible

Packing Information:

• Quantity of Each: 1
• Package UOM: EA
• Dimension: 17.01 x 17.01 x 17.01 inches
• Weight: 20.33 POUNDS
