Mishimoto MMTMIC-WRX-22KSLRD Top-Mount Intercooler Kit Red Pipe Fits Subaru WRX 2022+

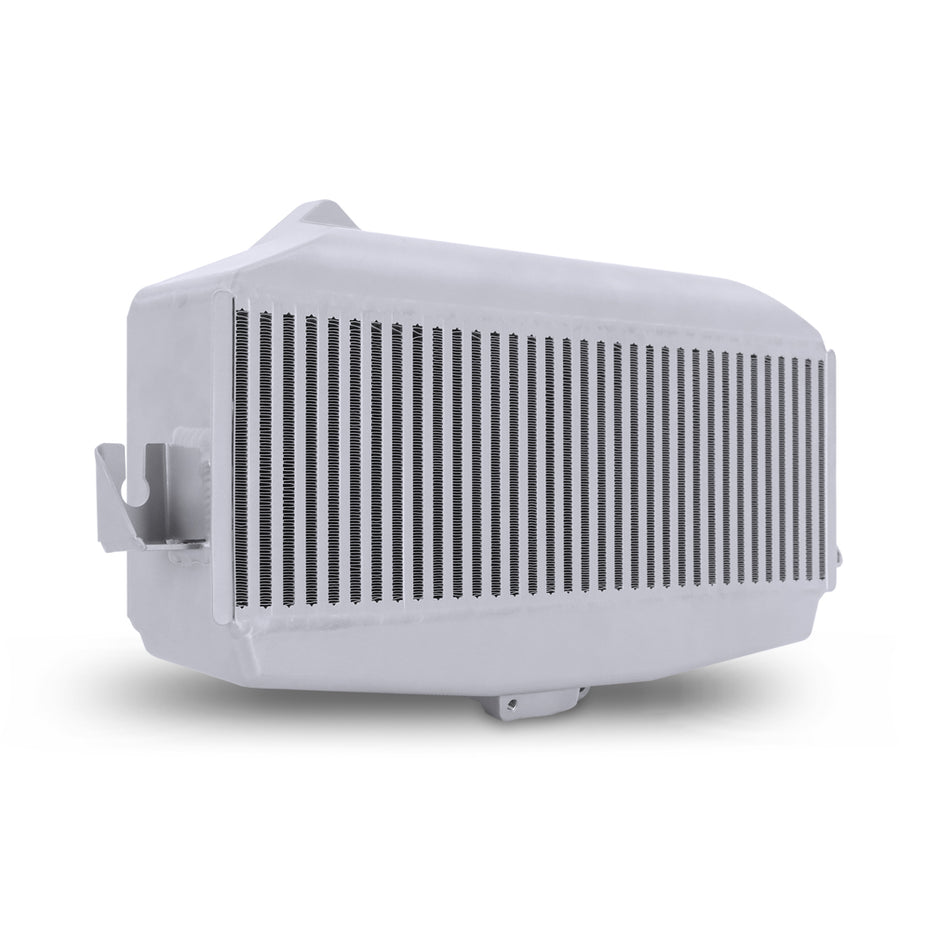

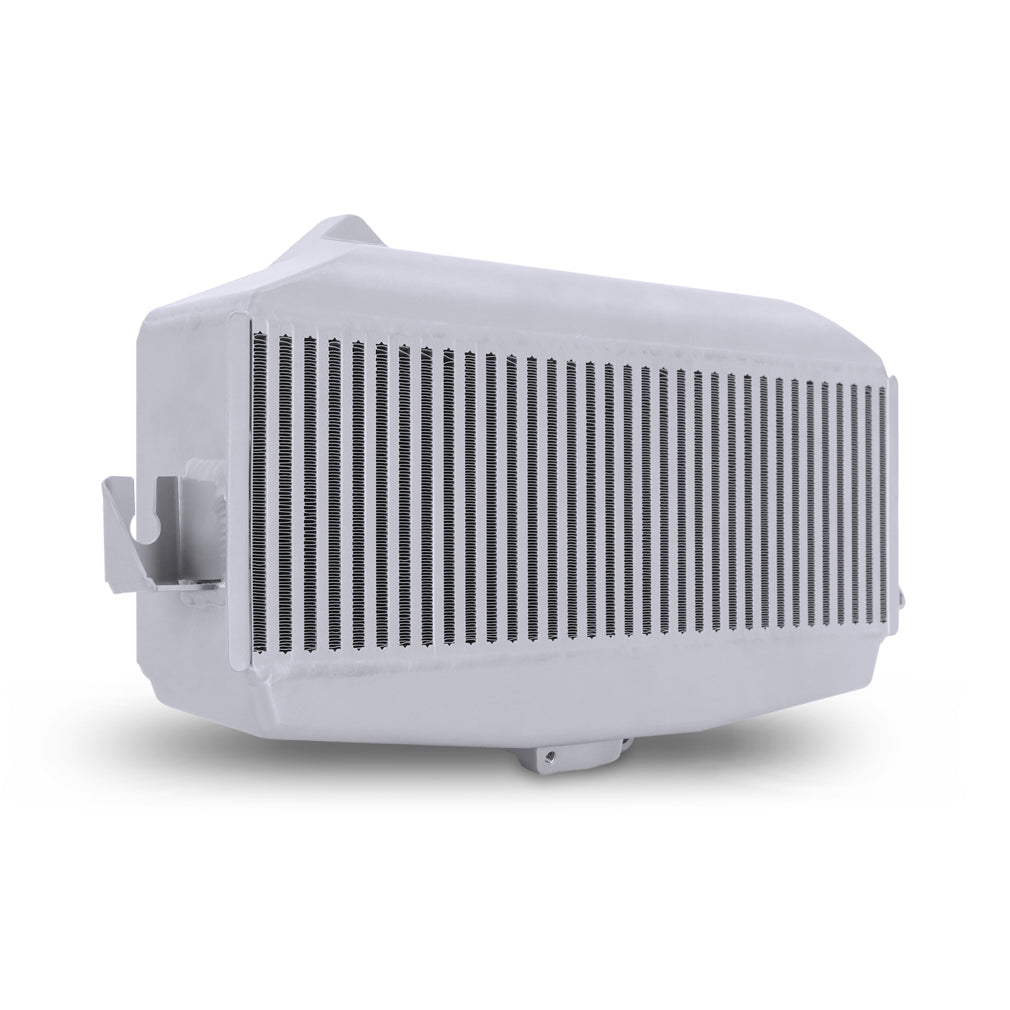

The Subaru WRX is a car that begs to be driven at ten-tenths, and as enthusiasts, we're happy to oblige. At the same time, we know the WRX is capable of much more with a few well-designed upgrades. One upgrade that's sure to bring your 2022+ WRX to the next level is the Mishimoto performance top-mount intercooler kit. This kit includes everything you need to let your FA24 breathe all the cool boost it could ever want.----Starting at the turbo, we've upgraded the stock plastic charge pipe with mandrel-bent and CNC-machined aluminum. Smooth bends and transitions improve flow by 20 percent over stock. The integrated turbo quick disconnect reduces failure points, so you never have to worry about a hard-to-access coupler popping off during a pull, and the all-aluminum construction resists high boost pressures better than the stock plastic pipe.----The crowning jewel of this kit is our massively upgraded top-mount intercooler and shroud. We've completely revamped the plastic end tank intercooler and replaced it with cast-aluminum end tanks and a high-flow core that's 88 percent larger than stock. The larger core volume allows our intercooler to flow over 40 percent better than stock, taking the strain off your turbo and allowing it to shove more cold air into your engine. We've also added 76 percent more fin surface area to the core, allowing it to transfer heat more effectively and keep outlet temps within 10 degrees of ambient. All those improvements would be for not, though, if we didn't have a way to get cool outside air over the intercooler. To do that, we scaled the intercooler shroud up to expose the entire core to fresh air from the WRX's signature hood scoop.----This kit includes everything needed for installation, including new shroud hardware. It's available with a black or silver intercooler and black or red pipes to match any color scheme and, with our Mishimoto Lifetime Warranty, you can drive your WRX at ten-tenths knowing Mishimoto has its and your back.

• Bar-and-plate core reduces restriction by 40.6 percent for improved efficiency
• 35.7 percent less pressure drop than stock means more boost makes it into the engine
• Lowers outlet temps to less than 10 degrees over ambient for safe performance

Attributes:

• Brand Name: Mishimoto
• GTIN: 00840197719541
• Cold Side Pipe Inside Diameter: 0
• Core Color: Silver
• Core Construction: Bar-and-Plate
• Core Height: 7
• Core Length: 20.5
• Core Material: Aluminum
• Core Thickness: 4
• Coupler Color: Black
• Coupler Material: Silicone
• End Tank Construction: Cast
• End Tank Material: Aluminum
• Grade Type: Performance
• Hose Clamps Included: Yes
• Hot Side Pipe Inside Diameter: 0
• Inlet Diameter: 0
• Install Difficulty: 1
• Intercooler Type: Air-to-Air
• Maximum Boost Pressure: 100
• Maximum Horsepower: 600
• OptionLabel: Silver Intercooler Red Pipe
• Outlet Diameter: 0
• Pipe Color: Red
• Pipe Finish: Powder Coated
• Pipe Material: Aluminum
• SellingPoint01: Direct fit for 2022+ Subaru WRX
• SellingPoint02: Bar-and-plate core reduces restriction by 40.6 percent for improved efficiency
• SellingPoint03: 35.7 percent less pressure drop than stock means more boost makes it into the engine
• SellingPoint04: Lowers outlet temps to less than 10 degrees over ambient for safe performance
• SellingPoint05: Integrated turbo quick disconnect eliminates leak points for improved reliability
• SellingPoint06: 88 percent increase in core volume for improved cooling efficiency
• SellingPoint07: 76 percent increase in fin surface area for superior heat transfer
• SellingPoint08: Includes expanded shrouding for maximum airflow and coverage
• SellingPoint09: Cold-side tank include 1/8-NPT port for boost or temp sensors
• SellingPoint10: Mandrel-bent, full aluminum charge pipe for improved flow and durability
• SellingPoint11: Cast aluminum end tanks reduce failure points for high boost applications
• SellingPoint12: Complete system upgrade allows your FA24 to breathe freely
• SellingPoint13: Includes everything needed for installation, including shroud hardware
• SellingPoint14: Patent Pending
• SellingPoint15: Mishimoto Lifetime Warranty
• TechSpec Applications: Subaru WRX H4 2.4L Turbo 2022+
• TechSpec Centerline Radius: N/A
• TechSpec Chassis Codes: VB
• TechSpec Core Height (in): 7
• TechSpec Core Length (in): 20.5
• TechSpec Core Thickness (in): 4
• TechSpec Core Type: Bar-And-Plate
• TechSpec Engine Codes: FA24DIT

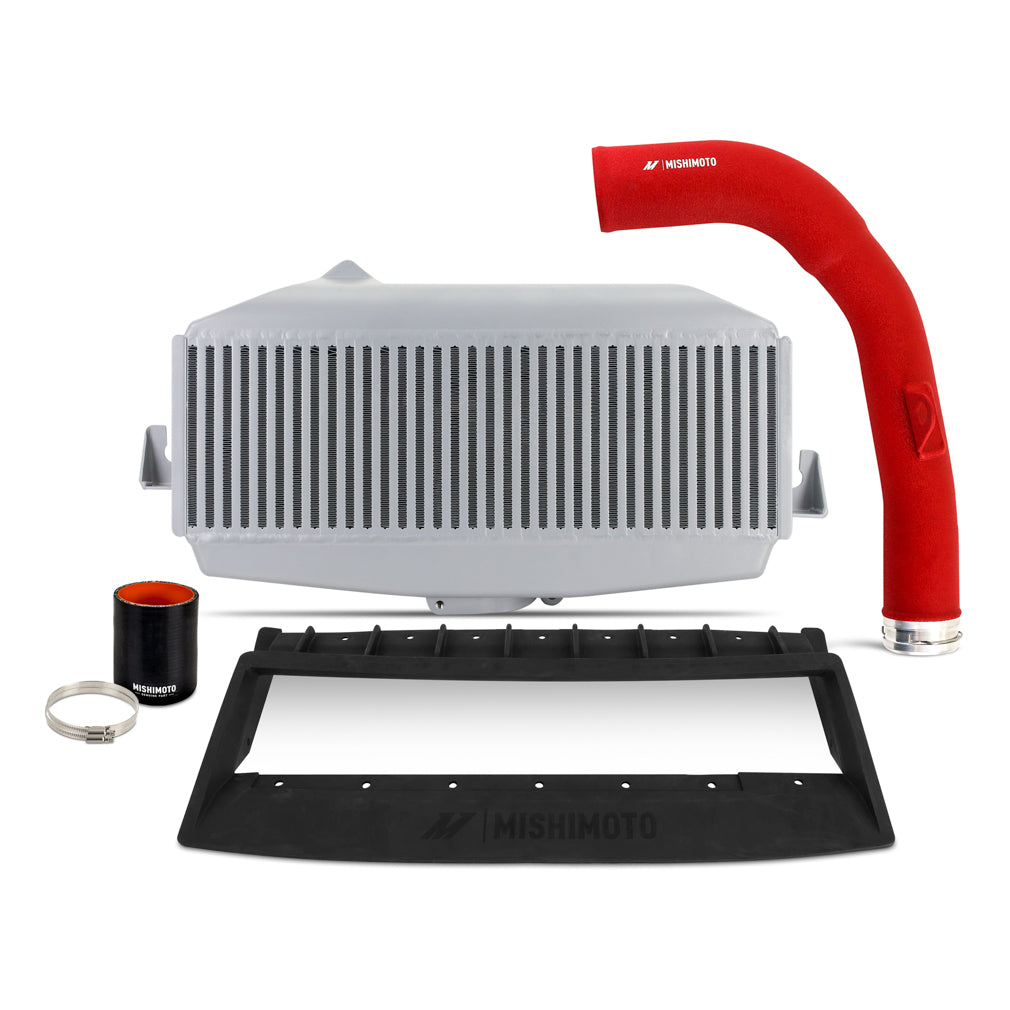

• TechSpec Includes: (1) Mishimoto Performance Intercooler--(1) Mishimoto Charge Pipe--(1) Mishimoto Intercooler Shroud--(36) Shroud Plastic Rivets--(11) Shroud Mount Panel Clips--(1) Silicone Coupler--(2) Stainless-Steel Worm Gear Clamps--Mishimoto Lifetime Warranty
• TechSpec Inlet (in): N/A
• TechSpec Installation Notes: Upon removal of factory intercooler, inspect the OEM inlet gasket and replace with Subaru part number 21896AA150 if any areas appear damaged or warped.
• TechSpec Maximum Recommended Boost Pressure (PSI): 100
• TechSpec Maximum Recommended Horsepower: 600
• TechSpec Note: N/A
• TechSpec Outlet (in): N/A
• TechSpec Overall Height (in): 12.96
• TechSpec Overall Length (in): 24.51
• TechSpec Overall Width (in): 4.38
• TechSpec Pipe Diameter: N/A
• TechSpec Pipe Length: N/A
• TechSpec Pipe Shape: N/A
• TechSpec Weight (lbs): N/A
• Universal Or Specific Fit: Specific

Extended Information:

• Country of Origin: China
• Emissions : 1

Packing Information:

• Quantity of Each: 1
• Package UOM: EA
• Dimension: 26.25 x 20.75 x 10 inches
• Weight: 32.75 POUNDS
