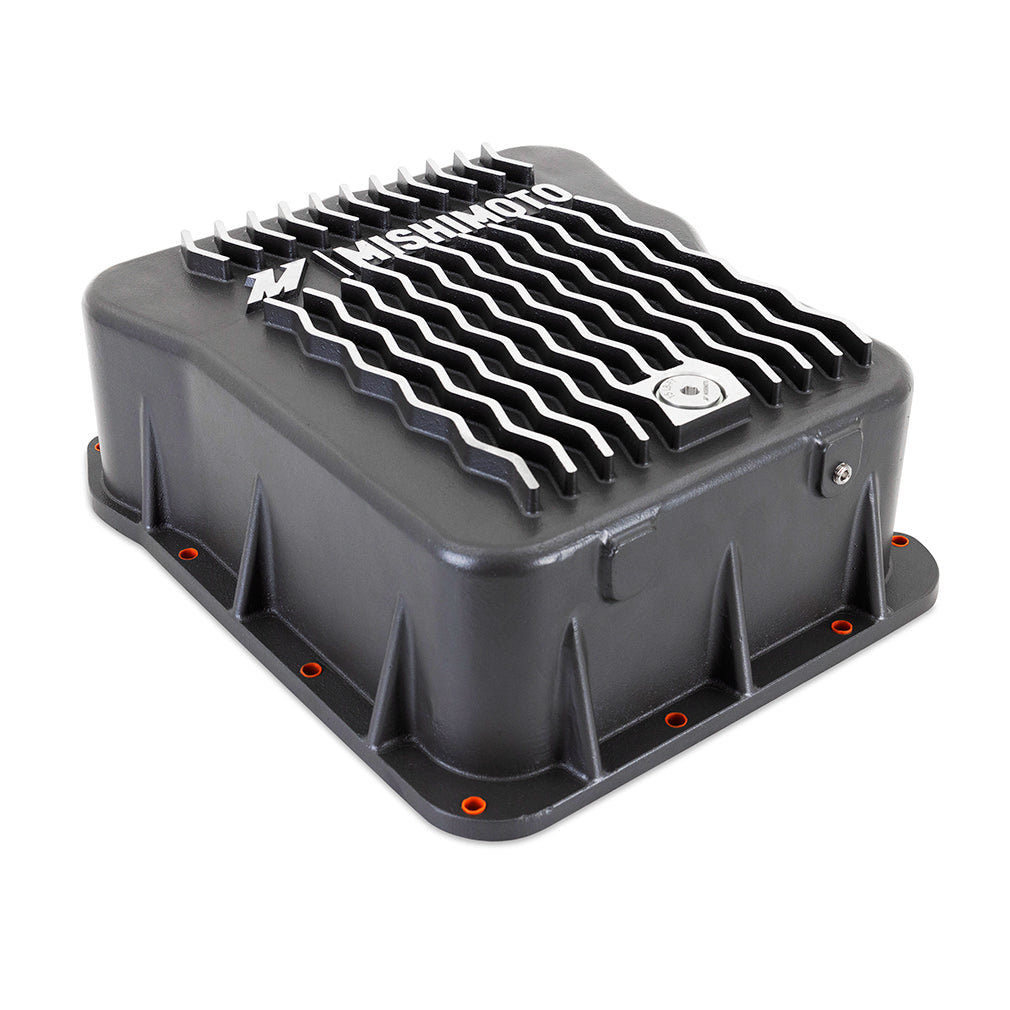

Mishimoto MMTP-DMAX-01 Aluminum Transmission Pan Fits Chevrolet/GMC 6.6L Duramax 2001-2019

This Mishimoto Aluminum Transmission Pan is a direct-fit, high-performance upgrade for your 2001-2019 Chevy/GMC 6.6L Duramax. Cast from high-quality aluminum and powder coated Gunmetal Gray, our transmission pan is a robust and long-lasting upgrade for your vehicle's transmission. With a sleek design and bottom ribs, this pan not only adds to the overall aesthetic of your truck but also provides improved cooling performance.----This transmission pan features internal baffles that reduce sloshing and enhance heat dissipation, resulting in smoother transmission performance. All the headaches that come with a flat gasket and messy sealants are eliminated with our precision-machined dovetail-style groove and O-ring seal. This groove positively retains the O-ring, so you never have to worry about it falling out of place during installation. Additionally, the Mishimoto 2001-2019 Chevy/GMC 6.6L Duramax Aluminum Transmission Pan adds an extra 6.1 quarts of ATF to help maintain optimal transmission operation.----Fed up with the frustration of trying to hold up a transmission pan with one hand while threading the fasteners in with the other? Mishimoto has you covered with pre-installed bolt retainers that hold the fasteners in the pan, allowing you to easily thread the bolts without dropping them on the ground, your head, or worse, that pan of nasty transmission fluid you just drained. Additionally, our pan comes equipped with a magnetic drain plug for easy draining and a 1/8-inch NPT port and plug for temperature sensors to make servicing your transmission and monitoring temperatures a breeze.----This direct-fit upgrade offers affordable durability and helps maintain smooth transmission operation, ensuring a long life for your transmission. Like all Mishimoto products, this transmission pan is backed by the Mishimoto Lifetime Warranty.

• Durable cast-aluminum construction for long-lasting performance
• Increases fluid capacity by 6.1 quarts over the stock transmission pan for more cooling capacity
• Bolt retainers hold fasteners in place for easy installation

Attributes:

• Brand Name: Mishimoto
• GTIN: 00840197718506
• Capacity: 6.1
• Color: Gray
• Configuration: One-Piece
• Dipstick Port: No
• Drain Plug Included: Yes
• Finish: Powder Coated
• Gasket Configuration: One-Piece
• Gasket Or Seal Included: Yes
• Grade Type: Performance
• Install Difficulty: 1
• Material: Aluminum
• Mounting Hardware Included: Yes
• Oil Pan Gaskets Included: Yes
• SellingPoint01: Direct fit for 2001-2019 Chevy/GMC 6.6L Duramax
• SellingPoint02: Durable cast-aluminum construction for long-lasting performance
• SellingPoint03: Increases fluid capacity by 6.1 quarts over the stock transmission pan for more cooling capacity
• SellingPoint04: Bolt retainers hold fasteners in place for easy installation
• SellingPoint05: Internal baffles reduce sloshing and enhance heat dissipation for smoother, more efficient transmission operation
• SellingPoint06: Dovetail-style groove with O-ring seal ensure a fool-proof, reliable seal
• SellingPoint07: 1/8-inch NPT port makes adding a temp sensor fast and easy
• SellingPoint08: Magnetic drain plug makes servicing your transmission a breeze
• SellingPoint09: Gunmetal gray powder coat finish adds style and function to your truck’s undercarriage
• SellingPoint10: Patent Pending
• SellingPoint11: Mishimoto Lifetime Warranty
• SellingPoint12: N/A
• SellingPoint13: N/A
• SellingPoint14: N/A
• SellingPoint15: N/A
• TechSpec Applications: 2001-2019 Chevy/GMC 6.6L Duramax Allison A1000
• TechSpec Caution: N/A
• TechSpec Chassis Codes: N/A
• TechSpec Core Construction: N/A
• TechSpec Core Height (in): N/A
• TechSpec Core Length (in): N/A
• TechSpec Core Thickness (in): N/A
• TechSpec Engine Codes: N/A
• TechSpec Fluid Capacity (qts): 6.12 (Pan)/ 13.52 (Total)
• TechSpec Includes: (1) Cast Aluminum Transmission Pan--(1) O-Ring Seal--(1) Magnetic Drain Plug--(12) Silicone Bolt Retainers--(12) Socket Head Cap Screws w/ Washers--(1) 1/8-in NPT Plug--Mishimoto Lifetime Warranty
• TechSpec Inlet: N/A
• TechSpec Installation Notes: Drain Plug Torque Spec: 15 lb-ft
• TechSpec Note: N/A
• TechSpec Outlet: N/A
• TechSpec Overall Height (in): N/A
• TechSpec Overall Length (in): N/A
• TechSpec Overall Width (in): N/A
• TechSpec Rows: N/A
• Transmission Filter Included: No

Extended Information:

• Country of Origin: CN
• Emissions : Emissions Compliance Exempt

Packing Information:

• Quantity of Each: 1
• Package UOM: EA
• Dimension: 18.2 x 15.7 x 6.8 inches
• Weight: 13.45 POUNDS
