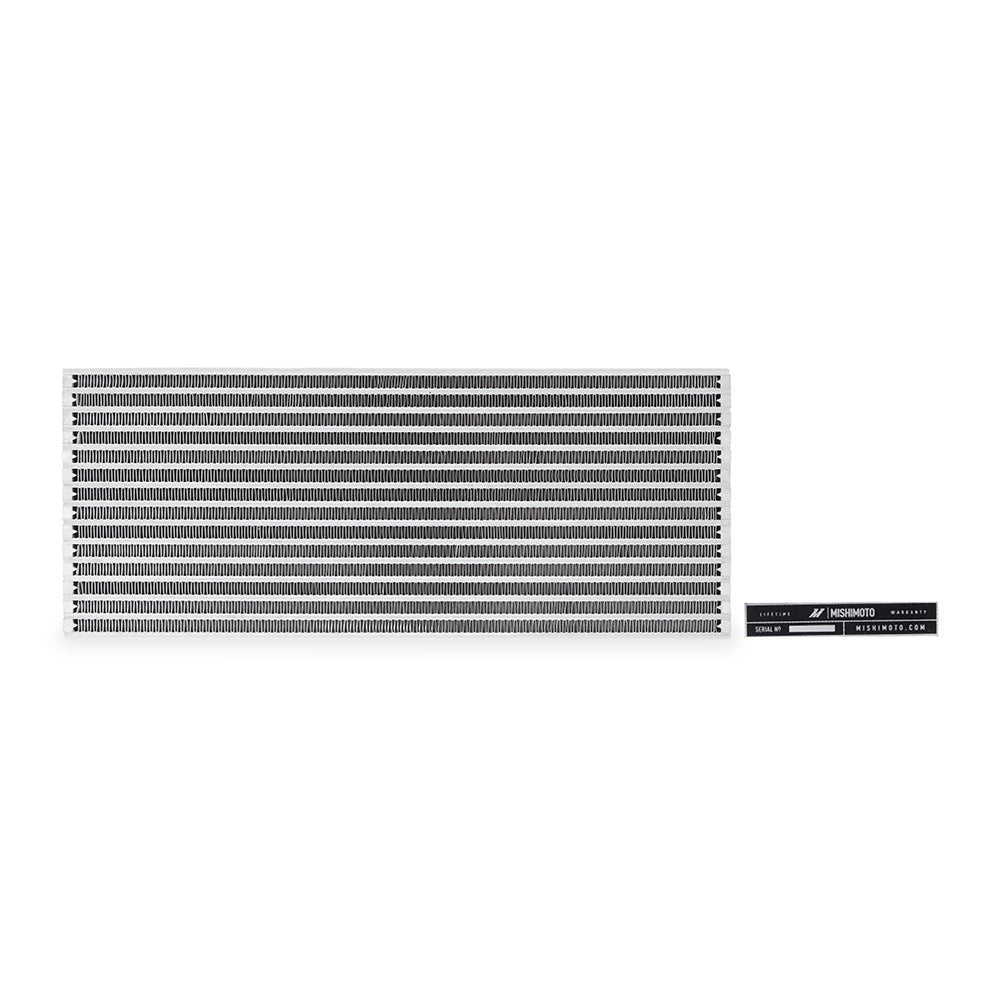

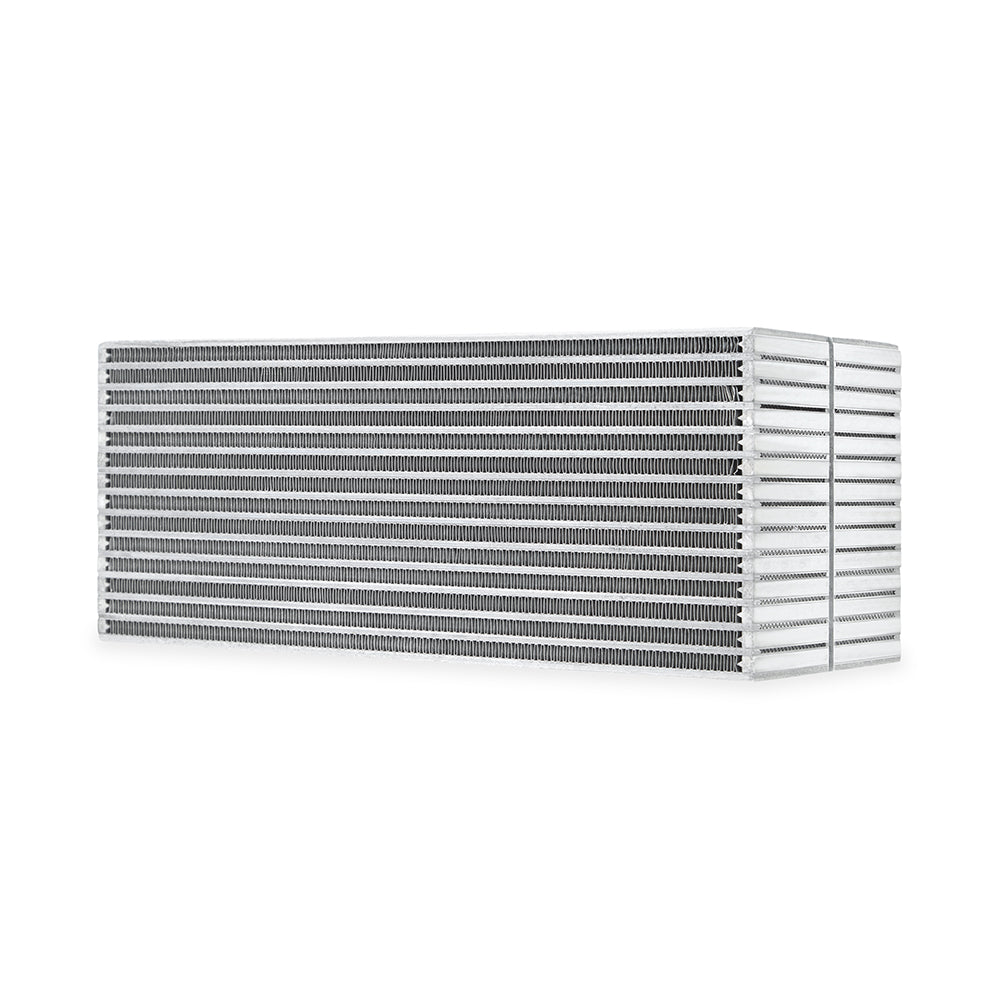

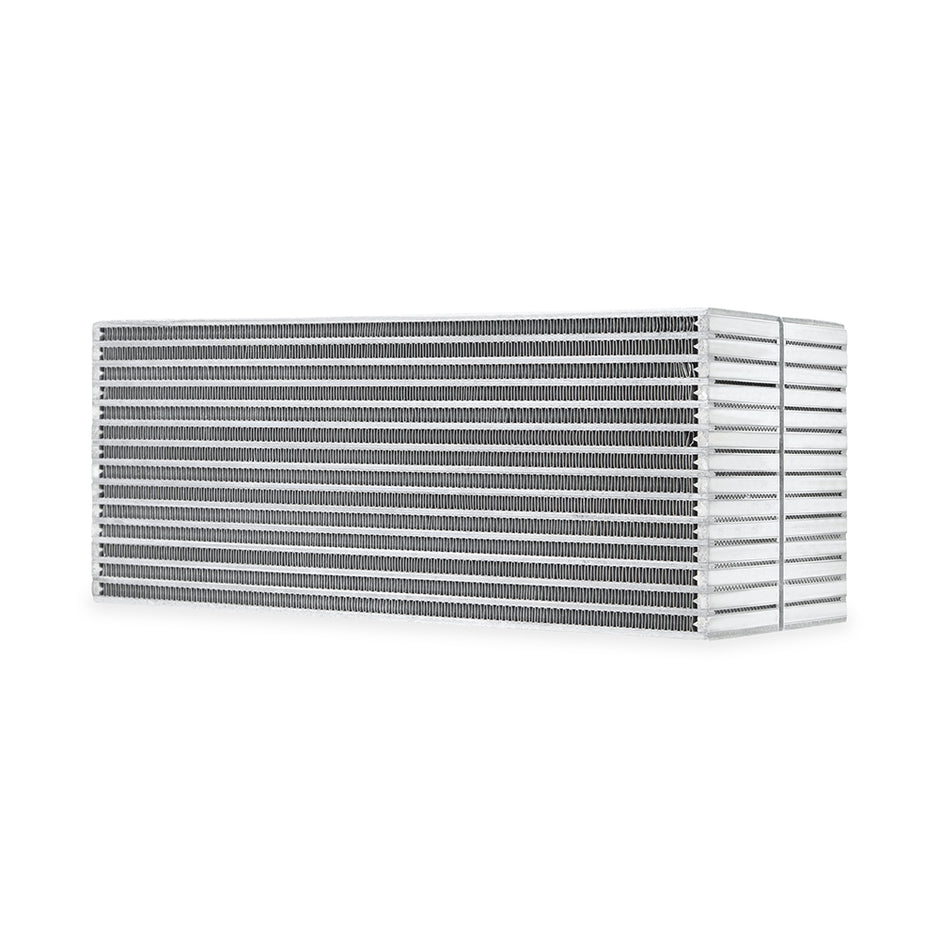

Mishimoto MMUIC-W3 Universal Air-to-Water Race Intercooler Core 12.00in X 4.92 In X 4.92 In

Introducing Mishimoto's line-up of Universal Air-to-Water Race Intercooler Cores. Whether you're looking for an intercooler to fit into a tight space, or you're completing your track toy build, Mishimoto has the intercooler core for you.These Mishimoto Universal Air-to-Water Race Intercooler Cores feature a robust bar-and-plate construction to maximize heat dissipation and improve durability. The fins and bars of each core chamber are optimized to balance flow and efficiency. To make fabrication and customization easy, these cores are shipped in a raw finish and arrive at your doorstep ready to be put to work.Each core is strictly quality controlled to handle all the boost you can throw at them and are covered by the Mishimoto Lifetime Warranty, so you know your build is cooled with Mishimoto quality.Looking for a ready-to-install intercooler? Check out our Mishimoto universal intercoolers!

• Robust bar-and-plate construction
• Rated for 1000 hp
• 12.00-in x 4.92-in x 4.92-in core size

Attributes:

• Brand Name: Mishimoto
• GTIN: 00811580039713
• Cold Side Pipe Inside Diameter: 0
• Core Color: Silver
• Core Construction: Bar-and-Plate
• Core Height: 12
• Core Length: 26
• Core Material: Aluminum
• Core Thickness: 4.92
• Coupler Color: Black
• Coupler Material: Silicone
• End Tank Construction: Cast
• End Tank Material: Aluminum
• Grade Type: Performance
• Hose Clamps Included: Yes
• Hot Side Pipe Inside Diameter: 0
• Inlet Diameter: 0
• Install Difficulty: N/A
• Intercooler Type: Air-to-Air
• Maximum Boost Pressure: 100
• Maximum Horsepower: 1000
• Outlet Diameter: 0
• Pipe Color: Black
• Pipe Finish: Powder Coated
• Pipe Material: Aluminum
• SellingPoint01: Robust bar-and-plate construction
• SellingPoint02: Rated for 1000 hp
• SellingPoint03: 12.00-in x 4.92-in x 4.92-in core size
• SellingPoint04: Designed for maximum flow and heat dissipation
• SellingPoint05: Arrives ready for fabrication
• SellingPoint06: Raw finish for endless finish possibilities
• SellingPoint07: Downloadable Mishimoto logo stencil for personalized branding
• SellingPoint08: Multiple sizes to choose from to fit the needs of your project
• SellingPoint09: Mishimoto Lifetime Warranty
• SellingPoint10: N/A
• SellingPoint11: N/A
• SellingPoint12: N/A
• SellingPoint13: N/A
• SellingPoint14: N/A
• SellingPoint15: N/A
• TechSpec Applications: N/A
• TechSpec Centerline Radius: N/A
• TechSpec Chassis Codes: N/A
• TechSpec Core Height (in): 12
• TechSpec Core Length (in): 26
• TechSpec Core Thickness (in): 4.92
• TechSpec Core Type: Bar-and-Plate
• TechSpec Engine Codes: N/A
• TechSpec Includes: (1) Mishimoto Universal Race Air-to-Water Intercooler Core--Mishimoto Lifetime Warranty
• TechSpec Inlet (in): N/A
• TechSpec Installation Notes: N/A
• TechSpec Maximum Recommended Boost Pressure (PSI): 100
• TechSpec Maximum Recommended Horsepower: 1000
• TechSpec Note: N/A
• TechSpec Outlet (in): N/A
• TechSpec Overall Height (in): 12
• TechSpec Overall Length (in): 26
• TechSpec Overall Width (in): 4.92
• TechSpec Pipe Diameter: N/A
• TechSpec Pipe Length: N/A
• TechSpec Pipe Shape: N/A
• TechSpec Weight (lbs): N/A
• Universal Or Specific Fit: Specific

Extended Information:

• Country of Origin: CN
• Emissions : Emissions Compliance Exempt

Packing Information:

• Quantity of Each: 1
• Package UOM: EA
• Dimension: 15 x 8.4 x 7.5 inches
• Weight: 12.7 POUNDS
