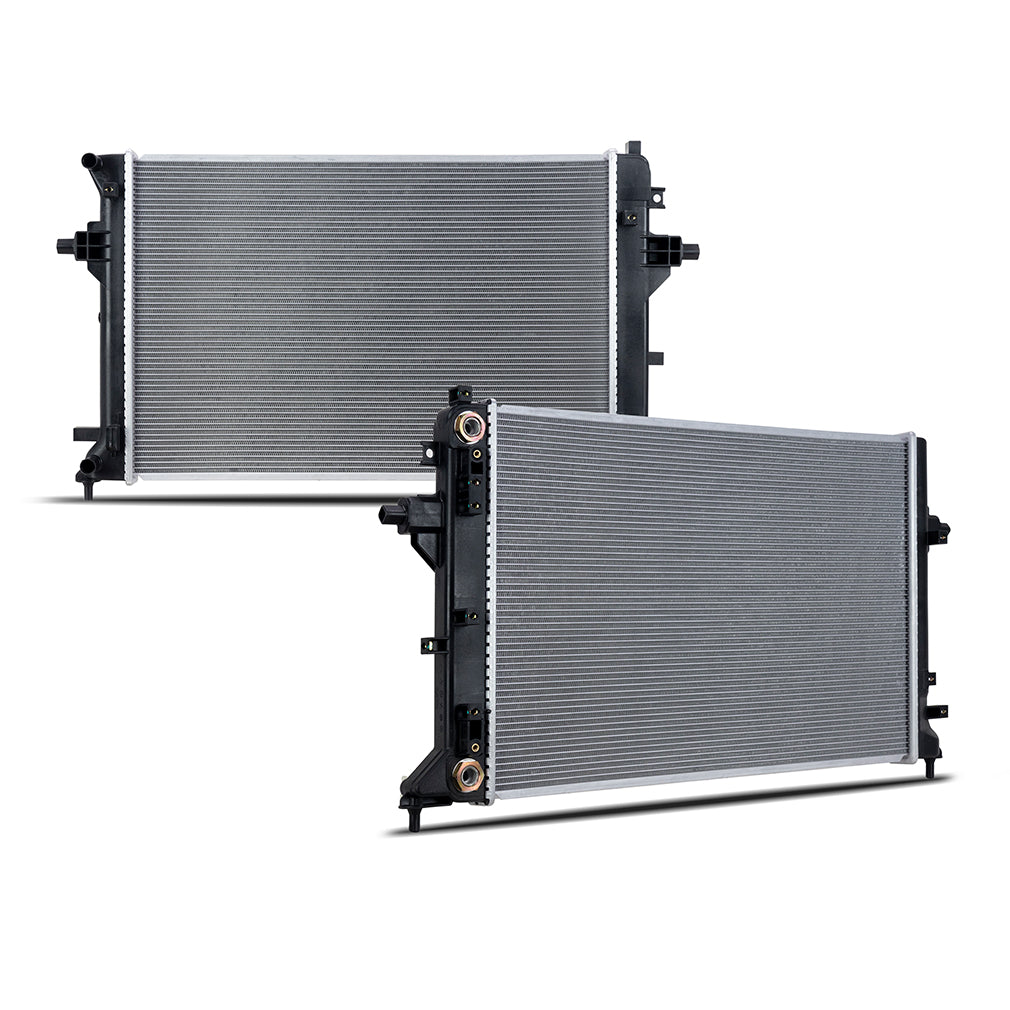

Mishimoto R13856 Replacement Radiator Fits Hyundai KONA Electric 2019-2023

This 2019-2023 Hyundai KONA Electric radiator is a direct OEM replacement for your old stock unit. There is no need to bend, cut, or modify anything to ensure a proper fitment in your vehicle. This radiator features OEM spec plastic end tanks attached to an aluminum core for stock cooling efficiency. At some point the inevitable happens to original stock radiators. They either spring a leak, get clogged up, or a plastic inlet or outlet cracks due to years of constant clamp pressure. This 2019-2023 Hyundai KONA Electric Replacement Radiator radiator is a perfect replacement to keep your cooling system in top notch shape, and just like all Mishimoto parts, comes with the Mishimoto Lifetime Warranty.

• Ideal replacement for an aged, clogged, or leaking stock radiator
• Functions with all stock engine bay equipment
• Mishimoto Lifetime Warranty

Attributes:

• Brand Name: Mishimoto
• GTIN: 00840197722220
• CAPA Certified: No
• Coolant Hose Inlet Connection Type: Hose Barb with Clamps
• Coolant Hose Outlet Connection Type: Hose Barb with Clamps
• Coolant Level Indicator Port: No
• Core Color: Silver
• Core Construction: Tube-and-Fin
• Core Finish: Uncoated
• Core Material: Aluminum
• Core Type: Tube-and-Fin
• End Tank Color: Black
• End Tank Construction: Cast
• End Tank Finish: Uncoated
• End Tank Material: Plastic / Aluminum
• Engine Oil Cooler Included: No
• Frame Included: No
• Grade Type: Standard Replacement
• Mounting Hardware Included: No
• Mounting Type: OEM
• SellingPoint01: Direct fit for the Hyundai KONA Electric 2019-2023
• SellingPoint02: Ideal replacement for an aged, clogged, or leaking stock radiator
• SellingPoint03: Functions with all stock engine bay equipment
• SellingPoint04: Mishimoto Lifetime Warranty
• SellingPoint05: N/A
• SellingPoint06: N/A
• SellingPoint07: N/A
• SellingPoint08: N/A
• SellingPoint09: N/A
• SellingPoint10: N/A
• SellingPoint11: N/A
• SellingPoint12: N/A
• SellingPoint13: N/A
• SellingPoint14: N/A
• SellingPoint15: N/A
• Tank Material: Plastic
• TechSpec Applications: 2019-2023 Hyundai Kona Electric-- 2019-2022 Kia Niro Electric
• TechSpec Chassis Codes: I30
• TechSpec Core Height (in): 15.63
• TechSpec Core Length (in): 24.02
• TechSpec Core Thickness (in): 0.63
• TechSpec DPI: 13856
• TechSpec Drain Plug Thread Size: N/A
• TechSpec Engine Codes: Permanent Magnet Synchronous Motor
• TechSpec Fluid Capacity (gal): N/A
• TechSpec Inlet (in): 0.76
• TechSpec Material: Aluminum & Glass Filled Nylon
• TechSpec Outlet (in): 0.76
• TechSpec Overall Height (in): 17.63
• TechSpec Overall Length (in): 30.6
• TechSpec Overall Width (ins): 4.35
• TechSpec Rows: 1
• Thermostat Included: No

Extended Information:

• Country of Origin: China
• Emissions : 4

Packing Information:

• Quantity of Each: 1
• Package UOM: BX
• Dimension: 5.9 x 19.5 x 33.3 inches
• Weight: 8.85 POUNDS
