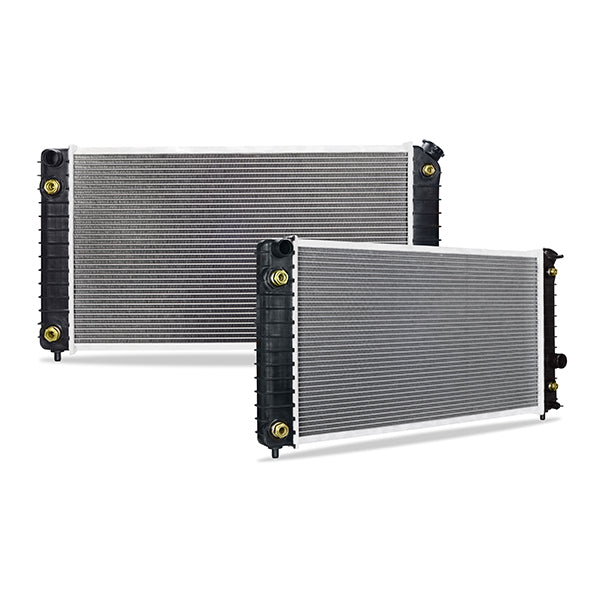

Mishimoto R1826-AT Replacement Radiator Fits Oldsmobile Bravada 1996-2001

This 1996-2001 GMC Jimmy 4.3L radiator is a direct OEM replacement for your old stock unit. There is no need to bend, cut, or modify anything to ensure a proper fitment in your vehicle. This radiator features OEM spec plastic end tanks attached to an aluminum core for stock cooling efficiency. At some point the inevitable happens to original stock radiators. They either spring a leak, get clogged up, or a plastic inlet or outlet cracks due to years of constant clamp pressure. This GMC Jimmy radiator is a perfect replacement to keep your cooling system in top notch shape, and just like all Mishimoto parts, comes with the Mishimoto Lifetime Warranty.

• Ideal replacement for an aged, clogged, or leaking stock radiator
• Functions with all stock engine bay equipment
• Mishimoto Lifetime Warranty

Attributes:

• Brand Name: Mishimoto
• GTIN: 00748354031829
• CAPA Certified: No
• Coolant Hose Inlet Connection Type: Hose Barb with Clamps
• Coolant Hose Outlet Connection Type: Hose Barb with Clamps
• Coolant Level Indicator Port: No
• Core Color: Silver
• Core Construction: Tube-and-Fin
• Core Finish: Uncoated
• Core Material: Aluminum
• Core Type: Tube-and-Fin
• End Tank Color: Black
• End Tank Construction: Cast
• End Tank Finish: Uncoated
• End Tank Material: Plastic / Aluminum
• Engine Oil Cooler Included: No
• Frame Included: No
• Grade Type: Standard Replacement
• Install Difficulty: 3
• Mounting Hardware Included: No
• Mounting Type: OEM
• SellingPoint01: Direct fit for the 1996-2001 Oldsmobile Bravada 4.3L
• SellingPoint02: Ideal replacement for an aged, clogged, or leaking stock radiator
• SellingPoint03: Functions with all stock engine bay equipment
• SellingPoint04: Mishimoto Lifetime Warranty
• SellingPoint05: N/A
• SellingPoint06: N/A
• SellingPoint07: N/A
• SellingPoint08: N/A
• SellingPoint09: N/A
• SellingPoint10: N/A
• SellingPoint11: N/A
• SellingPoint12: N/A
• SellingPoint13: N/A
• SellingPoint14: N/A
• SellingPoint15: N/A
• Tank Material: Plastic
• TechSpec Applications: 1996-2005 Chevrolet Blazer 4.3L--1996-2004 Chevrolet S10 4.3L--1996-2001 GMC Jimmy 4.3L--1996-2004 GMC Sonoma 4.3L--1997-2000 Isuzu Hombre 4.3L--1996-2001 Oldsmobile Bravada 4.3L
• TechSpec Chassis Codes: N/A
• TechSpec Core Height (in): 15
• TechSpec Core Length (in): 26.25
• TechSpec Core Thickness (in): 1.375
• TechSpec DPI: R1826
• TechSpec Drain Plug Thread Size: N/A
• TechSpec Engine Codes: N/A
• TechSpec Fluid Capacity (gal): N/A
• TechSpec Includes: Mishimoto Replacement Radiator--Mishimoto Lifetime Warranty
• TechSpec Inlet (in): 1.3125
• TechSpec Material: Plastic and Aluminum
• TechSpec Note: Cooler Fitting Size(s):----M20x1.5 internal thread--1/2-inch internal thread with joint
• TechSpec Outlet (in): 1.5625
• TechSpec Overall Height (in): N/A
• TechSpec Overall Length (in): N/A
• TechSpec Overall Width (ins): N/A
• TechSpec Rows: 1
• Thermostat Included: No

Extended Information:

• Country of Origin: China
• Emissions : Emissions Compliance Exempt

Packing Information:

• Quantity of Each: 1
• Package UOM: EA
• Dimension: 14.84 x 14.84 x 14.84 inches
• Weight: 12.51 POUNDS
